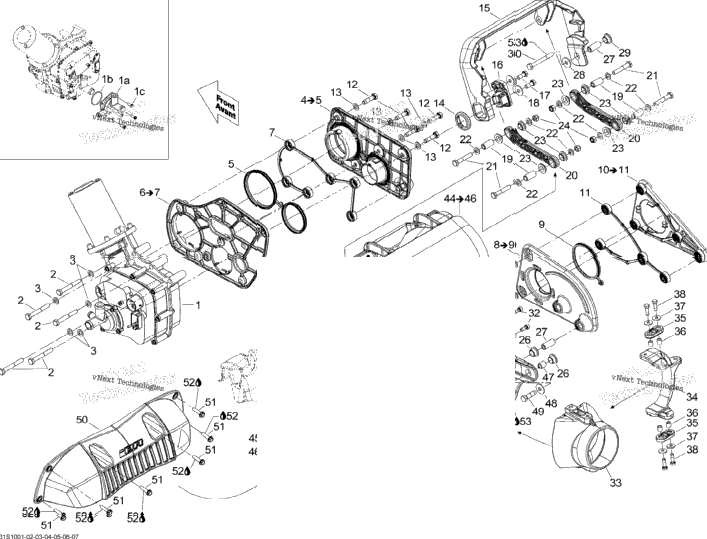

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278002476 | IBR Actuator | ||
| 1 | 278002473 | COOLING COVER | 1 |
| 1 | 278002474 | O-RING | 1 |
| 4 | 278002475 | Torx Screw, Stainless | 4 |
| 5 | 250000187 | Hex. Screw M8 X 60, Scotch Grip | 5 |
| 5 | 234081600 | Stainless, Flat Washer 8 mm | 5 |
| 1 | 268000067 | LH Support Plate Ass'y Includes 4 to 5 | 1 |
| 1 | 268000046 | LH FORMED SEAL | 1 |
| 1 | 268000069 | LH Fixing Plate Ass'y Includes 6 to 7 | 1 |
| 1 | 268000055 | LH FORMED SEAL | 1 |
| 1 | 268000068 | RH SUPPORT PLATE ASS'Y Includes 8 to 9 | 1 |
| 1 | 268000047 | RH FORMED SEAL | 1 |
| 1 | 268000070 | RH Fixing Plate Ass'y Includes 10 to 11 | 1 |
| 1 | 268000056 | RH FORMED SEAL | 1 |
| 7 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 7 |
| 7 | 293050001 | Flat Washer M8.5 x 18 | 7 |
| 1 | 268000065 | WASHER | 1 |
| 1 | 271001615 | BLACK ''U'' ARM | 1 |
| 1 | 268000057 | TIGHTE BUSHING | 1 |
| 2 | 207382060 | Hex. Screw M8 X 20, Scotch Grip | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 268000062 | SPACER | ||
| 2 | 268000042 | Linkage Arm | 2 |
| 4 | 207084560 | Hex. Screw M8 X 45 | 4 |
| 8 | 234081600 | Stainless, Flat Washer 8 mm | 8 |
| 8 | 271000321 | Venturi Bushing | 8 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 268000033 | Black Trimming Ring | 1 |
| 6 | 293900007 | Venturi Bushing | 6 |
| 3 | 268000063 | Spacer | 3 |
| 3 | 234082600 | Flat Washer 8 mm, Stainless | 3 |
| 1 | 293900007 | Venturi Bushing | 1 |
| 207087060 | HEX. SCREW M8 X 70 | ||
| 4 | 268000045 | Friction Sleeve | 4 |
| 4 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip | 4 |
| 1 | 267000397 | Direction Nozzle, Black | 1 |
| 1 | 268000064 | Direction Nozzle Lever, Black | 1 |
| 2 | 268000058 | Direction Lever Arm | 2 |
| 4 | 268000060 | Spacer | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 4 |
| 2 | 211000127 | Socket Head Screw M8 X 10, Scotch Grip | 2 |
| 2 | 268000060 | Spacer | 2 |
| 2 | 268000059 | Bushing | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 2 |
| 268000048 | Reverse Gate Ass'y Includes 44 to 46 | ||
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 3 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip | 3 |
| 2 | 271001039 | Spacer | 2 |
| 2 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 2 |
| 1 | 268000066 | Guard | 1 |
| 6 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite | 6 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
