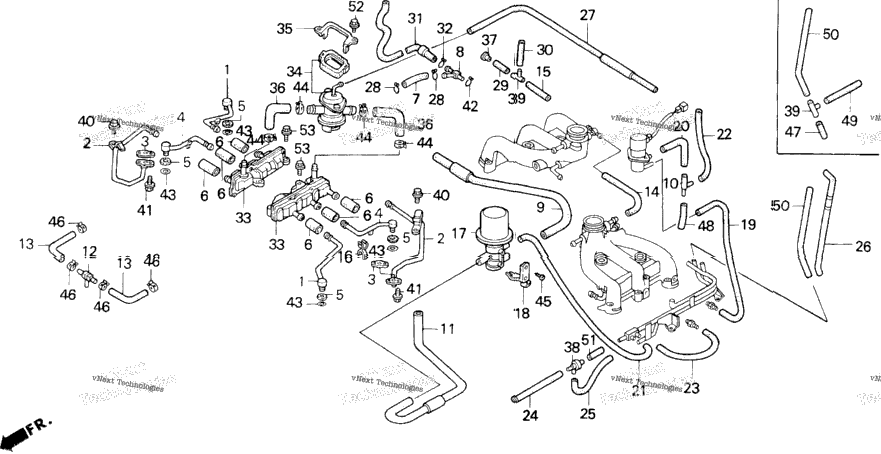

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17130-MN5-020 | PIPE, AIR FEED (A) | ||
| 17140-MN5-000 | PIPE B, AIR FEED | ||
| 2 | 17142-MN5-000 | GASKET, AIR FEED PIPE | 2 |
| 17150-MN5-020 | PIPE, AIR FEED (C) | ||
| 17155-MT2-000 | RUBBER, AIR FEED PIPE | ||
| 6 | 17161-MAM-L40 | HOSE, AIR FEED | 6 |
| 17162-MN5-000 | TUBE A, AIR IN. | ||
| 17163-MN5-000 | JOINT B (THREE-WAY) | ||
| 17164-MN5-000 | TUBE B, AIR IN. | ||
| 17165-MY4-000 | JOINT, AIR INJECTION CONTROL VALVE (THREE-WAY) | ||
| 17170-MY4-000 | TUBE, AIR IN. (F)(YELLOW) | ||
| 17171-MW5-003 | VALVE, CHECK | ||
| 2 | 17172-MN5-000 | TUBE G, AIR IN. | 2 |
| 1 | 17173-MN5-000 | TUBE, PRESSURE BOOST (C) | 1 |
| 1 | 17175-MT2-000 | TUBE, PRESSURE BOOST (E) | 1 |
| 17176-MN5-000 | CLAMP J, HOSE | ||
| 17340-MT2-003 | VALVE ASSY., SHOT AIR | ||
| 17342-MT2-000 | STAY, SHOT AIR VALVE | ||
| 17350-MT8-000 | TUBE, PRESSURE BOOST (I) | ||
| 1 | 17351-MT8-000 | TUBE, PRESSURE BOOST (J) | 1 |
| 17352-MT8-000 | TUBE, PRESSURE BOOST (K) | ||
| 17353-MT8-000 | TUBE, PRESSURE BOOST (L) | ||
| 17354-MT8-000 | TUBE, PRESSURE BOOST (M) | ||
| 17355-MT8-000 | TUBE, PRESSURE BOOST (N) | ||
| 17356-MT8-000 | TUBE, PRESSURE BOOST (O) | ||
| 17357-MY4-000 | TUBE, PRESSURE BOOST (P) | ||
| 17358-MT8-000 | TUBE, PRESSURE BOOST (R) | ||
| 2 | 17369-KB4-670 | CLIP, BREATHER TUBE | 2 |
| 17461-MT2-000 | TUBE, PRESSURE BOOST (H) | ||
| 17462-MT8-000 | TUBE (4.5X260) | ||
| 17472-MT2-000 | TUBE (14MM) (GREEN 4) | ||
| 1 | 17724-102-700 | CLIP, SUB-TANK HOSE | 1 |
| 18610-MW5-000 | CASE ASSY., REED VALVE | ||
| 18650-MN5-024 | VALVE ASSY., AIR INJECTION CONTROL | ||
| 18652-MN5-000 | STAY, AIR INJECTION VALVE | ||
| 18654-MN5-000 | HOSE, AIR IN. | ||
| 36034-PD1-000 | PLUG, SEALING | ||
| 1 | 36627-MN5-000 | VALVE, IN. AIR SHOT AIR CHECK | 1 |
| 1 | 36627-MN5-003 | VALVE, IN. AIR SHOT AIR CHECK | 1 |
| 36010-PA6-004 | JOINT, THREE WAY | ||
| 38773-PB9-000 | JOINT (3.5) (THREE-WAY) | ||
| 2 | 90016-MN5-000 | BOLT, FLANGE (6X14) | 2 |
| 4 | 90040-MN5-000 | BOLT, SOCKET (6X18) | 4 |
| 1 | 90654-MK3-780 | CLIP, TUBE (B14) | 1 |
| 4 | 91305-422-000 | O-RING (9.8X2.4) | 4 |
| 4 | 91352-425-003 | O-RING (9.8X7.4) | 4 |
| 4 | 91405-PE0-003 | CLAMP, TUBE (D20) | 4 |
| 93904-25180 | SCREW, TAPPING (5X10) | ||
| 4 | 95002-41200-08 | CLAMP, TUBE (D12) | 4 |
| 1 | 95005-35008-10M | BULK HOSE, VACUUM (3.5X8000) (3.5X35) | 1 |
| 1 | 95005-35008-10M | BULK HOSE, VACUUM (3.5X8000) (3.5X400) | 1 |
| 1 | 95005-45001-10M | BULK HOSE, VACUUM (4.5X1000) (4.5X30) | 1 |
| 2 | 95701-06014-08 | BOLT, FLANGE (6X14) | 2 |
| 4 | 95701-06025-08 | BOLT, FLANGE (6X25) | 4 |
