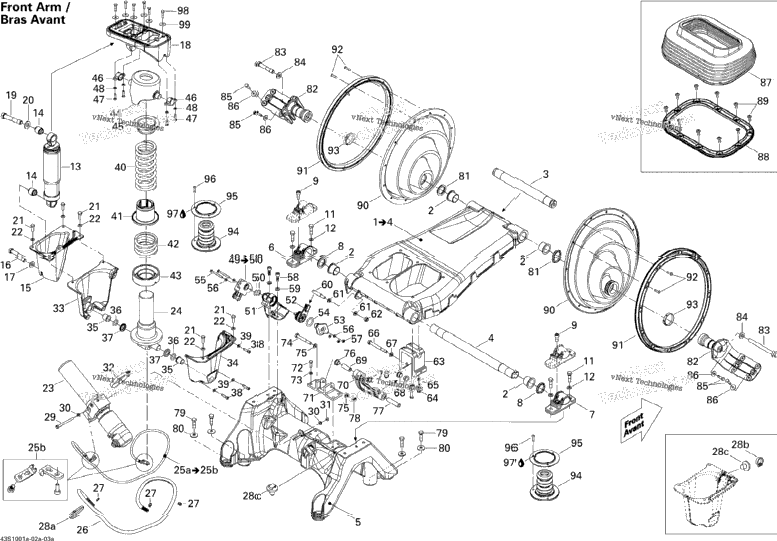

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 279000000 | FRONT ARM ASS'Y Includes 1 to 4 | ||
| 4 | 279000019 | Bushing | 4 |
| 1 | 279000038 | Pivot Tube | 1 |
| 1 | 279000041 | PIVOT TUBE | 1 |
| 1 | 279000167 | FRONT ARM BASE | 1 |
| 1 | 279000089 | LH CLAMP | 1 |
| 1 | 279000092 | RH CLAMP | 1 |
| 2 | 279000047 | RUBBER BUMPER | 2 |
| 2 | 205582060 | Socket Head Screw M8 X 20, Scotch Grip | 2 |
| 4 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 4 |
| 4 | 234080600 | Flat Washer M8, Stainless | 4 |
| 1 | 279000126 | Shock Absorber | 1 |
| 2 | 279000051 | Bushing | 2 |
| 1 | 279000055 | Shock Lower Holder | 1 |
| 1 | 207227060 | HEX. SCREW M12 X 70, SCOTCH GRIP | 1 |
| 1 | 250200053 | Flat Washer M12 | 1 |
| 1 | 279000057 | Shock Upper Holder | 1 |
| 6 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 6 |
| 6 | 234080600 | Flat Washer M8, Stainless | 6 |
| 279000177 | PUMP | ||
| 279000117 | ACTUATOR | ||
| 1 | 279000162 | CONNECTOR HOSE Includes 25a to 25b | 1 |
| XXXX | Not Available As Spare Part - Hose Attachment Kit | ||
| 1 | 219704425 | Tubing 6 MM 3000MM Long | 1 |
| 3 | 293750001 | Tie Wrap 94 mm | 3 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 293730040 | Mount Dart | 2 |
| 1 | 207067060 | Hex. Screw M6 X 70 | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 293650079 | Norma Clamp | 1 |
| 1 | 279000070 | LH SPRING HOLDER | 1 |
| 1 | 279000074 | RH SPRING HOLDER | 1 |
| 2 | 279000103 | BUSHING | 2 |
| 2 | 279000104 | O-RING | 2 |
| 2 | 279000105 | BUSHING | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 279000128 | PAINTED SPRING | 1 |
| 1 | 279000130 | Spring Spacer | 1 |
| 1 | 279000131 | PAINTED SPRING | 1 |
| 1 | 279000121 | Lower Spring Protector | 1 |
| 1 | 279000061 | UPPER SPRING HOLDER | 1 |
| 1 | 279000134 | UPPER SPRING PROTECTOR | 1 |
| 2 | 279000106 | Clamp | 2 |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 4 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 1 | 270000251 | Position Sensor Includes 49 to 50 | 1 |
| 1 | 270000544 | O-Ring | 1 |
| 1 | 279000098 | POSITION SENSOR BRACKET | 1 |
| 1 | 279000099 | SENSOR LEVER | 1 |
| 1 | 279000107 | Position Sensor Cover | 1 |
| 1 | 279000108 | O-Ring | 1 |
| 2 | 207144060 | Hex. Screw M4 X 40 | 2 |
| 4 | 234041600 | Flat Washer 4 mm, Stainless | 4 |
| 2 | 232541200 | Elastic Stop Nut M4 | 2 |
| 2 | 205561260 | Socket Head Screw M6 X 12, Scotch Grip | 2 |
| 1 | 279000139 | THREADED ROD | 1 |
| 279000154 | SPRING ALIGNMENT ADAPTOR | ||
| 4 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 4 |
| 207287560 | HEX. SCREW M8 X 75, SCOTCH GRIP | ||
| 1 | 234080600 | Flat Washer M8, Stainless | 1 |
| 2 | 279000137 | Bushing | 2 |
| 1 | 279000138 | Spacer | 1 |
| 1 | 279000157 | Spring Alignment Arm | 1 |
| 279000155 | BRACKET | ||
| 1 | 207086060 | HEX. SCREW M8 X 60 | 1 |
| 2 | 234080600 | Flat Washer M8, Stainless | 2 |
| 1 | 279000153 | SPACER | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 8 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 8 |
| 8 | 279000164 | Flat Washer | 8 |
| 2 | 279000065 | Footrest | 2 |
| 2 | 230201060 | Hex. Screw M10 X 110, Scotch Grip | 2 |
| 2 | 211200051 | Flat Washer | 2 |
| 12 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 12 |
| 12 | 250200115 | Flat Washer M6 | 12 |
| 279000008 | CENTRAL BELLOWS | ||
| 1 | 279000010 | Retaining Plate | 1 |
| 10 | 293150123 | Pop Rivet 3/16" | 10 |
| 2 | 279000009 | Lateral Bellows | 2 |
| 2 | 279000011 | Retaining Ring | 2 |
| 24 | 293150176 | Pop Rivet 3/16" | 24 |
| 2 | 293650199 | Oetiker Gear Clamp | 2 |
| 2 | 279000023 | Rubber Bumper | 2 |
| 2 | 279000115 | Retaining Ring | 2 |
| 6 | 293150005 | Pop Rivet 3/16" | 6 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 6 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 6 |
| 6 | 250200011 | Flat Washer 8 mm, Stainless | 6 |
