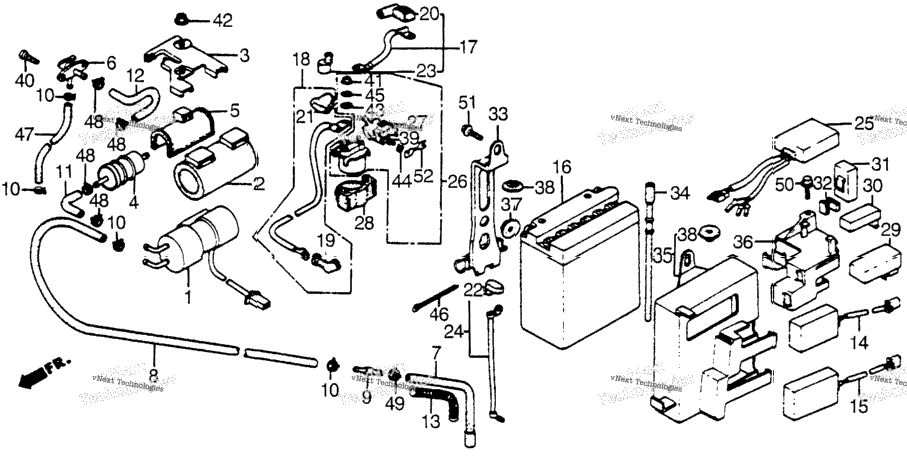

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 16710-MJ8-000 | PUMP, FUEL | ||
| 16710-MJ8-005 | PUMP, FUEL | ||
| 16711-MJ8-000 | HOLDER, FUEL PUMP | ||
| 16712-MJ8-000 | STAY, FUEL PUMP SETTING | ||
| 1 | 16900-371-004 | FILTER, FUEL | 1 |
| 16901-MJ8-000 | HOLDER, FUEL STRAINER | ||
| 16950-MB1-005 | PETCOCK ASSY. | ||
| 16955-MJ8-000 | TUBE C, FUEL | ||
| 16956-MJ8-000 | HOSE, FUEL (5.3X800) | ||
| 16959-MB1-000 | JOINT, FUEL TUBE | ||
| 1 | 16969-MB1-000 | CLIP, FUEL HOSE | 1 |
| 17512-MJ8-000 | TUBE B, FUEL | ||
| 17514-MJ8-000 | TUBE C, FUEL | ||
| 17532-404-000 | SPRING, FUEL TUBE COVER | ||
| 30400-MJ8-671 | MODULE, IGNITION CONTROL (CDI) | ||
| 30410-MJ8-671 | MODULE, IGNITION CONTROL (CDI) | ||
| 31500-MN2-672 | BATTERY (12V12) | ||
| 31500-413-601 | BATTERY (12V12) | ||
| 31500-413-721 | BATTERY (12V12) | ||
| 31500-413-722 | BATTERY (12V12) | ||
| 31500-413-771 | BATTERY (12V12) | ||
| 31500-413-941 | BATTERY (12V12) | ||
| 31500-413-942 | BATTERY (12V12) | ||
| 31500-426-771 | BATTERY (12V12) | ||
| 31500-447-771 | BATTERY (12V12) | ||
| 31500-460-671 | BATTERY (12V12) | ||
| 31500-460-672 | BATTERY (12V12) | ||
| 31500-460-677 | BATTERY (12V12) | ||
| 35100-MN2-673 | BATTERY (12V12) | ||
| 32401-KE8-000 | CABLE, STARTER BATTERY | ||
| 32402-MJ8-000 | CABLE, STARTER MOTOR | ||
| 1 | 32411-230-000 | COVER, STARTER MOTOR TERMINAL | 1 |
| 1 | 32411-253-000 | COVER, STARTER MOTOR TERMINAL | 1 |
| 32411-426-830 | COVER, BATTERY TERMINAL | ||
| 32412-426-000 | COVER, MAGNETIC SWITCH TERMINAL | ||
| 32412-443-900 | COVER A, MAGNETIC SWITCH | ||
| 1 | 32413-MA2-000 | COVER B, MAGNETIC SWITCH | 1 |
| 32601-MJ8-000 | CABLE, BATTERY GROUND | ||
| 35550-MB2-771 | SENSOR, STOP & TAILLIGHT | ||
| 1 | 35850-MB0-007 | SWITCH ASSY., STARTER MAGNETIC | 1 |
| 35852-MB0-007 | COVER, FUSE | ||
| 35856-MB0-007 | RUBBER, SHOCK ABSORBER | ||
| 36100-MB1-701 | RELAY, FUEL CUT | ||
| 37640-MB1-701 | CHECK UNIT, PILOT LAMP | ||
| 1 | 38301-MF8-771 | RELAY, TURN SIGNAL (TATEISHI) | 1 |
| 1 | 38306-KJ6-740 | SUSPENSION, TURN SIGNAL RELAY | 1 |
| 50151-MJ8-000 | LID, BATTERY BOX | ||
| 50238-MJ8-000 | TUBE, BATTERY | ||
| 50320-MJ8-000 | BOX, BATTERY | ||
| 50325-MJ8-000 | PLATE, STARTING MAGNETIC SETTING | ||
| 83618-MG7-000 | RUBBER, BATTERY BOX | ||
| 1 | 83618-323-000 | RUBBER, BATTERY BOX | 1 |
| 1 | 93500-04006-0H | SCREW, PAN (4X6) | 1 |
| 1 | 93500-04006-1H | SCREW, PAN (4X6) | 1 |
| 1 | 93500-06012-0A | SCREW, PAN (6X12) | 1 |
| 1 | 94002-06080-0S | NUT, HEX. (6MM) | 1 |
| 1 | 94002-06080-00 | NUT, HEX. (6MM) | 1 |
| 1 | 94050-06080 | NUT, FLANGE (6MM) | 1 |
| 1 | 94101-06800 | WASHER, PLAIN (6MM) | 1 |
| 1 | 94111-04800 | WASHER, SPRING (4MM) | 1 |
| 1 | 94111-06800 | WASHER, SPRING (6MM) | 1 |
| 94201-25400 | PIN, COTTER (2.5MM) | ||
| 95001-55008-20M | BULK HOSE, FUEL (5.5X8000) (5.5X180) | ||
| 95002-01110 | CLIP, TUBE (A11) | ||
| 1 | 95002-02100 | CLIP, TUBE (B10) | 1 |
| 1 | 95700-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 1 | 95701-06010-08 | BOLT, FLANGE (6X10) | 1 |
| 1 | 95700-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95701-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 1 | 98200-53000 | FUSE F (30A) | 1 |
