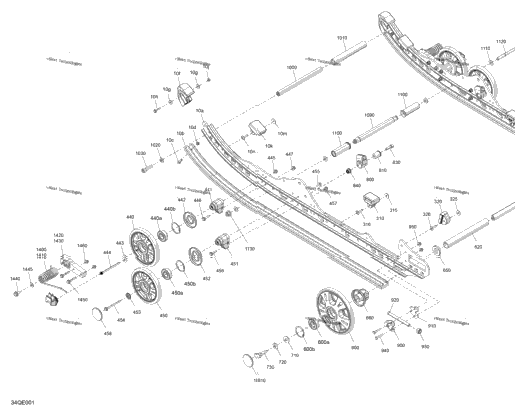

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503197032 | Neo Yellow, Suspension Rail 120 | 1 |
| 1 | 503197684 | Suspension Slide 120 | 1 |
| 1 | 208562531 | Phillips Screw M6 X 25 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 503196873 | Rail Protector | 1 |
| 2 | 250200140 | Washer | 2 |
| 1 | 207652544 | Hex. Flange Screw M5 X 25 | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 1 | 503190576 | Rubber Stopper | 1 |
| 1 | 503191273 | Washer | 1 |
| 1 | 293150256 | Rivet Ornit 4.8 X 27.5 | 1 |
| 2 | 503193504 | Rubber Stopper | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 293150256 | Rivet Ornit 4.8 X 27.5 | 2 |
| 2 | 503191291 | Rubber Stopper | 2 |
| 2 | 503192794 | Black, Wheel Ass'y 141 mm Includes 440 to 440a | 2 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503193894 | Casted Support | 2 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 2 | 229000735 | Socket Head Screw M6 X 90 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 250000945 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 503192794 | Black, Wheel Ass'y 141 mm Includes 450 to 450a | 2 |
| 2 | 503191820 | Wheel Cup M6 | 2 |
| 2 | 250000944 | Hex. Flange Screw M6 X 70 | 2 |
| 2 | 503192771 | Black, Wheel Cap | 2 |
| 2 | 503191742 | Black, Wheel Ass'y, 180 mm Includes 600 to 600b | 2 |
| 1 | 503190429 | Rear Axle | 1 |
| 1 | 503191108 | Spacer | 1 |
| 2 | 503190432 | Washer | 2 |
| 2 | 503196753 | Rear Wheel Support | 2 |
| 2 | 503191910 | Washer | 2 |
| 2 | 234201474 | Conical Spring Washer 10 mm | 2 |
| 2 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 | 2 |
| 2 | 861805547 | Spring Support Kit | 2 |
| 2 | 503196210 | Bushing | 2 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 2 | 503192583 | Tensioner | 2 |
| 2 | 503193250 | Spacer | 2 |
| 2 | 230100054 | Hex Screw M10 x 100 | 2 |
| 2 | 233601466 | Elastic Locking Nut M10 | 2 |
| 4 | 207063054 | Hex. Cap Screw M6 X 30 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 1 | 503191260 | Axle Strap | 1 |
| 1 | 503196943 | Spacer | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503191764 | Center Shaft | 1 |
| 2 | 503191351 | CENTER BUSHING | 2 |
| 4 | 250200143 | Flat Washer | 4 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
| 1 | 503197761 | LH Ice Scratcher | 1 |
| 1 | 503197762 | RH Ice Scratcher | 1 |
| 1 | 503197372 | LH Ice Scratcher Support | 1 |
| 1 | 503197373 | RH Ice Scratcher Support | 1 |
| 2 | 207681644 | Hex. Flange Screw M8 X 16 | 2 |
| 2 | 503192494 | Washer | 2 |
| 4 | 207663544 | Hex. Flange Screw M6 X 35 | 4 |
