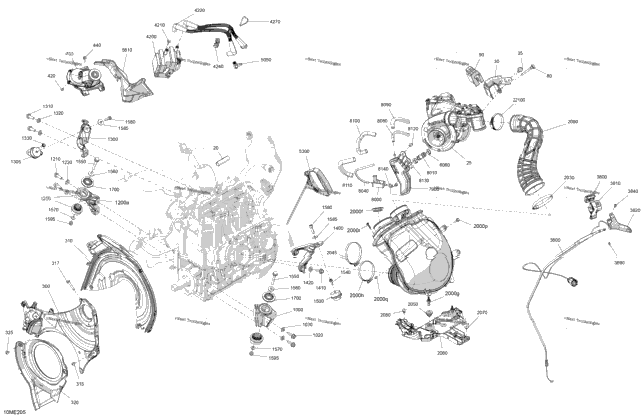

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515178492 | Braided Sleeve 60MM Long | 1 |
| 1 | 420893748 | Turbocharger Ass'y | 1 |
| 1 | 512061457 | Compressor Support | 1 |
| 2 | 207682046 | Hex. Flange Screw M8 X 20 | 2 |
| 1 | 250001058 | Hex. Flange Screw M8 X 50 | 1 |
| 1 | 512061328 | Upper Stopper | 1 |
| 1 | 512061447 | LH Side Member | 1 |
| 1 | 512061449 | Upper CVT Cooling Duct | 1 |
| 2 | 250000995 | Torx-truss M/s M6 X 10 | 2 |
| 1 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 | 1 |
| 1 | 512061450 | Lower CVT Cooling Duct | 1 |
| 3 | 250000995 | Torx-truss M/s M6 X 10 | 3 |
| 1 | 420889425 | Servo Motor Ass'y | 1 |
| 1 | 293370122 | Circlip | 1 |
| 2 | 207551044 | Hex. Flange Screw M5 X 10 | 2 |
| 1 | 512061634 | LH Rear Engine Support Ass'y | 1 |
| 2 | 250001016 | Hex Flange Screw M8 X 25 S.Grip | 2 |
| 2 | 250200146 | Conical Spring Washer M8 | 2 |
| 1 | 512061418 | LH Front Engine Support Ass'y Includes 1200 to 1200a | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 512061439 | RH Front Engine Support | 1 |
| 1 | 512061454 | Vibration Damper | 1 |
| 2 | 250001062 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 512061411 | RH Rear Engine Support Ass'y | 1 |
| 2 | 207585544 | Hex. Flange Screw M8 X 55 | 2 |
| 2 | 503183200 | Yellow, Washer | 2 |
| 2 | 250200008 | Flat Washer With Teflon 8 mm | 2 |
| 2 | 205082544 | Socket Head Screw M8 X 25 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 2 | 512061530 | Engine Stopper | 2 |
| 1 | 512061083 | Rubber | 1 |
| 2 | 420441840 | Screw | 2 |
| 2 | 293650079 | Norma Clamp | 2 |
| 1 | 207652544 | Hex. Flange Screw M5 X 25 | 1 |
| 1 | 233251414 | Hex. Flange Elastic Nut M5 | 1 |
| 6 | 250000760 | Torx Screw Truss Head K50X20 T20 | 6 |
| 1 | 293650091 | Norma Clamp | 1 |
| 2 | 293650118 | Norma Gear Clamp | 2 |
| 2 | 420201630 | Rubber Cap | 2 |
| 1 | 512061645 | Primary Chamber Support | 1 |
| 3 | 293150291 | Black, Pop Rivet 3/16 X ,425 | 3 |
| 1 | 293150292 | Black, Pop Rivet 3/16 X ,550 | 1 |
| 1 | 512061644 | Inlet Tube | 1 |
| 1 | 293650090 | Norma Gear Clamp | 1 |
| 1 | 512061224 | Throttle Cable | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 512060859 | Upper Housing | 1 |
| 1 | 512060860 | Lower Housing | 1 |
| 1 | 512061544 | Heated Hand Lever Accelerator | 1 |
| 2 | 250000991 | Flange Screw M5x12 | 2 |
| 1 | 512061168 | Ignition Coil | 1 |
| 3 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 3 |
| 2 | 512061166 | Ignition Cable | 2 |
| 2 | 512061238 | Spark Plug Wire Holder | 2 |
| 1 | 293300059 | O-Ring | 1 |
| 2 | 512060993 | Clamp | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 1 | 512061513 | LH Acoustic Cover | 1 |
| 1 | 512061538 | Oil Tank | 1 |
| 1 | 519000332 | Oil Pump | 1 |
| 1 | 512061379 | Hose 7,94 mm ID | 1 |
| 1 | 512061381 | Hose | 1 |
| 2 | 293650140 | Oetiker Clamp | 2 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 503195447 | Protector Tube | 1 |
| 2 | 250000767 | Torx Truss Screw M6 X 12 | 2 |
| 1 | 250000759 | Torx Truss Pt K40 X 16 | 1 |
| 1 | 512061322 | Grommet | 1 |
