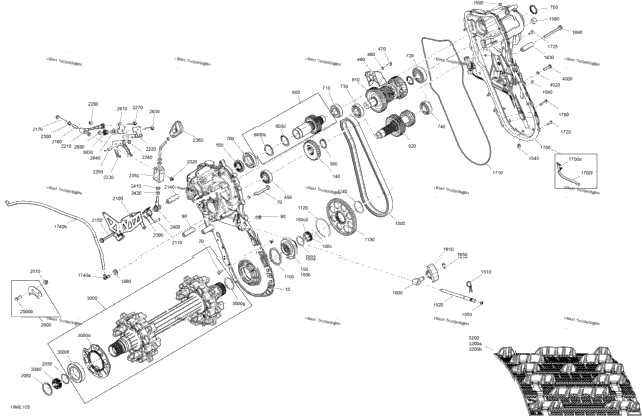

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504154331 | Gearbox Case Ass'y | 1 |
| 3 | 250001213 | Socket Head Screw M6 X 18 | 3 |
| 1 | 207587544 | Hex. Flange Screw M8 X 75, Scotch Grip | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 504153929 | Spacer | 1 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 504153686 | Sprocket 23 Teeth | 1 |
| 1 | 504154893 | Adapter Ass'y Includes 150 to 150d | 1 |
| 1 | 293350142 | Ball Bearing | 1 |
| 1 | 504154019 | Magnetic Cap Includes 150c to 150c2 | 1 |
| 1 | 504154043 | Cap | 1 |
| 1 | 293300291 | O-Ring Seal | 1 |
| 1 | 293370133 | External Snap Ring | 1 |
| 1 | 293350131 | Ball Bearing | 1 |
| 1 | 504153793 | Oil Deflector | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 234061410 | Flat Washer 6 mm | 2 |
| 1 | 504154125 | Shaft Gearbox In Ass'y Includes 600 to 600d | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 504154126 | Shaft Gearbox Selection Ass'y | 1 |
| 1 | 504154127 | Shaft Gearbox Out Ass'y | 1 |
| 1 | 293350053 | Ball Bearing | 1 |
| 1 | 293350153 | Ball Bearing | 1 |
| 1 | 293350117 | Ball Bearing | 1 |
| 1 | 504153165 | Ball Bearing | 1 |
| 1 | 504154145 | Cap | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504153996 | Sprocket 49 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 504152570 | Drive Chain 100 Links | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153627 | Adjustment Screw | 1 |
| 1 | 250500013 | Hex. Countersunk Drain Plug | 1 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 267001113 | Nylon Plug | 1 |
| 1 | 504154577 | Chain Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 504154305 | Spacer | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 414036300 | Grommet | 1 |
| 1 | 230584044 | Hex Flange Screw Din.6921 S.Grip | 1 |
| 1 | 504154651 | Gearbox Cover Ass'y Includes 1700 to 1700f | 1 |
| 1 | 515179692 | Connector Support | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 1 | 293300288 | O-Ring Seal | 1 |
| 8 | 250001153 | Hex. Flange Screw M6X20 | 8 |
| 4 | 250001153 | Hex. Flange Screw M6X20 | 4 |
| 1 | 414580700 | Male Connector | 1 |
| 219704539 | Hose 5.7MM - 630MM | ||
| 1 | 250001015 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 1 | 504154146 | Speed Selector Support | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 1 | 207589534 | Hex. Flange Screw Scotch Grip | 1 |
| 1 | 504153648 | Spacer | 1 |
| 1 | 207664544 | Hex. Flange Screw M6 X 45 | 1 |
| 1 | 504154246 | Actuating Rod Ass'y | 1 |
| 1 | 504154100 | Axle Fork | 1 |
| 1 | 504154101 | Fork | 1 |
| 2 | 250400045 | Spring Pin M5 X 16 | 2 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 2 | 504153735 | Bushing | 2 |
| 1 | 504154271 | Extrusion | 1 |
| 1 | 504154138 | Lever & Rod Ass'y | 1 |
| 1 | 504153984 | Lever Arm Spring | 1 |
| 1 | 504153977 | Ball Joint | 1 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500b | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153980 | Plate | 1 |
| 1 | 707000310 | Spring | 1 |
| 1 | 207664044 | Hex. Flange Screw M6 X 40 | 1 |
| 1 | 504154764 | Spacer | 1 |
| 1 | 504154549 | Drive Axle Ass'y Includes 3000 to 3000g | 1 |
| 1 | 504154417 | Retaining Ring | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 293300230 | O-Ring Seal | 1 |
| 1 | 504154714 | Track 24 X 154 X 1,5 Includes 3200 to 3200b | 1 |
| 1 | 415130661 | Clip | 1 |
| 1 | 504152651 | Cleat | 1 |
| 1 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 1 |
| 1 | 504082900 | Washer | 1 |
