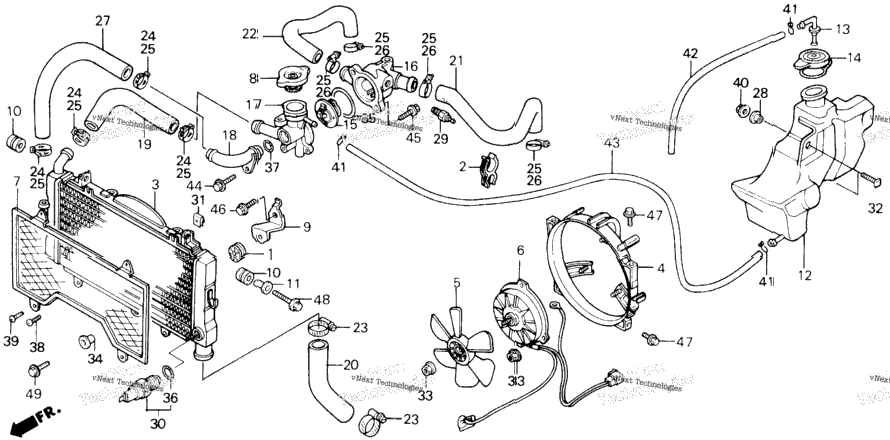

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 15604-MG7-000 | GROMMET, OIL COOLER | 1 |
| 16956-KM9-000 | CLAMP, FUEL TUBE | ||
| 19010-MM5-013 | RADIATOR | ||
| 19015-MM5-013 | SHROUD | ||
| 19020-MM5-003 | FAN, COOLING (TOYO) | ||
| 19030-MM5-004 | MOTOR, FAN (MATSUSHITA) | ||
| 19030-MM5-901 | MOTOR, FAN | ||
| 19030-MM5-902 | MOTOR, FAN | ||
| 19032-MM5-010 | GRILLE, RADIATOR | ||
| 1 | 19037-KA4-701 | CAP (TOYO) | 1 |
| 19051-MM5-000 | STAY, RADIATOR | ||
| 19052-HA2-000 | RUBBER, RADIATOR SETTING (B) | ||
| 1 | 19056-HA2-000 | COLLAR, RADIATOR SETTING (B) | 1 |
| 19101-MM5-000 | TANK, RADIATOR RESERVE | ||
| 19101-MM5-010 | TANK, RADIATOR RESERVE | ||
| 1 | 19106-GE2-000 | ADAPTER, RESERVE CAP | 1 |
| 19108-KK4-000 | CAP, RESERVE TANK | ||
| 1 | 19300-MG9-000 | THERMOSTAT | 1 |
| 19311-MM5-000 | CASE, THERMOSTAT | ||
| 19312-MM5-000 | FILLER, NECK | ||
| 19313-MM5-000 | JOINT, WATER | ||
| 19490-MM5-000 | HOSE, WATER CONNECTING (A) | ||
| 19493-MM5-000 | HOSE, WATER CONNECTING (B) | ||
| 19502-MM5-000 | HOSE, WATER CONNECTING (C) | ||
| 19503-MM5-000 | HOSE, WATER CONNECTING (B) | ||
| 1 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 1 |
| 1 | 19513-MM4-003 | CLAMP, HOSE (27MM) | 1 |
| 1 | 19517-ML7-691 | CLAMP, HOSE (22-29) | 1 |
| 19520-MM5-000 | HOSE, FR. WATER CONNECTING (A) | ||
| 33613-KG1-610 | COLLAR, TURN SIGNAL SETTING | ||
| 1 | 37750-PC1-004 | SENDING UNIT, WATER TEMPERATURE (DENSO) | 1 |
| 1 | 37760-ML7-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37760-MT2-003 | SWITCH ASSY., THERMOSTAT | 1 |
| 64527-KE8-700 | NUT, CLIP (4MM) | ||
| 90118-MM5-000 | BOLT, RESERVE TANK | ||
| 1 | 90315-MK3-003 | NUT, SERRATE (5MM) | 1 |
| 1 | 90551-MG7-000 | COLLAR (.8X11) | 1 |
| 1 | 91307-MB0-003 | O-RING (54X2) | 1 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (12.5X1.4) | 1 |
| 1 | 91312-KE7-003 | O-RING (19X3) (NOK) | 1 |
| 1 | 93500-04008-0G | SCREW, PAN (4X8) | 1 |
| 1 | 93500-04014-0G | SCREW, PAN (4X14) | 1 |
| 1 | 94050-05000 | NUT, FLANGE (5MM) | 1 |
| 1 | 95002-70000 | CLIP, TUBE (C11) | 1 |
| 1 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X550) | 1 |
| 1 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X910) | 1 |
| 1 | 95701-06016-00 | BOLT, FLANGE (6X16) | 1 |
| 1 | 95701-06020-00 | BOLT, FLANGE (6X20) | 1 |
| 1 | 95701-08020-00 | BOLT, FLANGE (8X20) | 1 |
| 1 | 96000-06010-00 | BOLT, FLANGE (6X10) | 1 |
| 1 | 96001-06010-00 | BOLT, FLANGE (6X10) | 1 |
| 1 | 96000-06028-00 | BOLT, FLANGE (6X28) | 1 |
| 1 | 96001-06028-00 | BOLT, FLANGE (6X28) | 1 |
| 1 | 96300-08022-00 | BOLT, FLANGE (8X22) | 1 |
| 1 | 96400-08022-00 | BOLT, FLANGE (8X22) | 1 |
