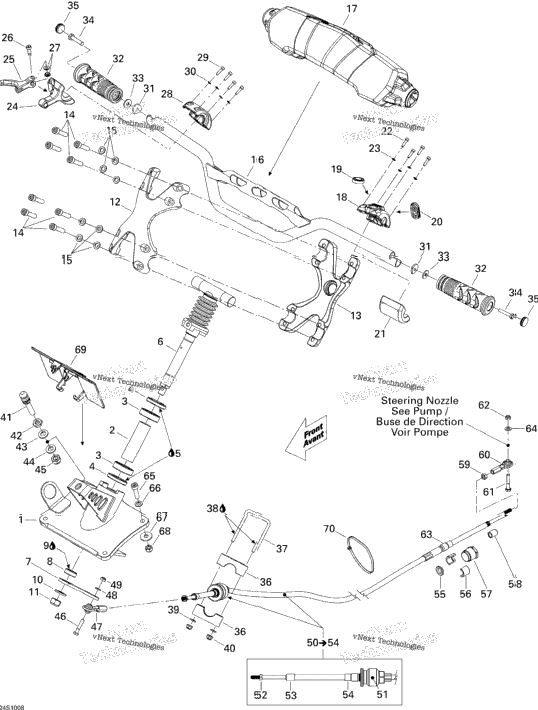

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277001632 | STEERING SUPPORT | 1 |
| 277001572 | Spacer | ||
| 2 | 503190396 | Ball Bearing | 2 |
| 2 | 293200115 | OIL SEAL | 2 |
| 293550010 | Synthetic Grease, 400 G | ||
| 277001636 | STEERING SHAFT ASS'Y | ||
| 277001639 | MOBILE ARM | ||
| 1 | 277001584 | RING | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 1 | 277001640 | HANDLE BAR EXTENSION, FRONT | 1 |
| 1 | 277001641 | HANDLE BAR EXTENSION, REAR | 1 |
| 8 | 205083560 | SOCKET HEAD SCREW M8 X 35 | 8 |
| 8 | 234080600 | Flat Washer M8, Stainless | 8 |
| 1 | 277001742 | HANDLE BAR | 1 |
| 1 | 277001557 | HANDLE PAD | 1 |
| 1 | 277001643 | HOUSING COVER ASS'Y | 1 |
| 1 | 277001676 | Switch Knob, Red | 1 |
| 278002066 | VTS KNOB | ||
| 1 | 277001644 | LOWER HOUSING | 1 |
| 4 | 205041660 | Socket Head Screw M4 X 16 | 4 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 1 | 277001646 | RH HOUSING | 1 |
| 1 | 277001647 | THROTTLE HANDLE | 1 |
| 1 | 250000343 | SOCKET HEAD SHOULDER SCREW | 1 |
| 293900090 | BUSHING | ||
| 1 | 277001648 | UPPER HOUSING | 1 |
| 2 | 277000554 | Handle Grip Insert | 2 |
| 2 | 277001336 | Handle Grip, Slate Grey | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277001528 | SUPPORT THRUST | 2 |
| 1 | 277001677 | U-CLAMP | 1 |
| 269000309 | Regular Seat Strap (Yellow) | ||
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 291002717 | LATCH STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 277001580 | Steering Cable Includes 50 to 54 | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001527 | Half Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 4 | 205083560 | SOCKET HEAD SCREW M8 X 35 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 277001623 | CAP | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
