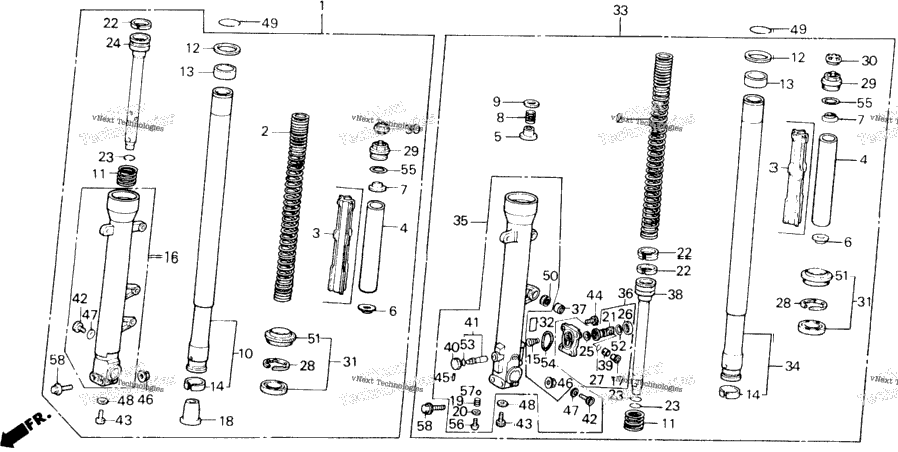

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 51400-ML7-003 | FORK ASSY., R. FR. (SHOWA) Use up to Frame SN GM001536 | ||
| 51400-ML7-013 | FORK ASSY., R. FR. (SHOWA) Use from Frame SN GM001537 | ||
| 51400-ML7-023 | FORK ASSY., R. FR. Use from Frame SN GM001537 | ||
| 51401-ML7-003 | SPRING, FR. FORK | ||
| 51402-ML7-003 | COLLAR, SPRING | ||
| 51403-MA6-003 | VALVE, OIL LOCK | ||
| 1 | 51403-ME4-003 | PLATE, SPRING JOINT | 1 |
| 51403-ML7-003 | PLATE, SPRING JOINT | ||
| 51404-MA6-003 | SPRING, OIL LOCK VALVE | ||
| 51405-MA6-003 | SEAT, SPRING | ||
| 51410-ML7-003 | PIPE, FR. FORK Use up to Frame SN GM001536 | ||
| 51410-ML7-013 | PIPE, FR. FORK Use from Frame SN GM001537 | ||
| 1 | 51411-MG1-003 | SPRING, FR. FORK REBOUND | 1 |
| 1 | 51412-461-003 | RING, BACK-UP | 1 |
| 1 | 51414-MN4-003 | BUSH, GUIDE | 1 |
| 1 | 51414-461-003 | BUSH, GUIDE | 1 |
| 1 | 51415-ML7-003 | BUSH, SLIDER | 1 |
| 1 | 51415-MN4-003 | BUSH, SLIDER | 1 |
| 51418-ML7-003 | SPRING, PISTON | ||
| 51421-ML7-003 | CASE, R. (LOWER) | ||
| 1 | 51423-MJ0-003 | COLLAR, PISTON | 1 |
| 51432-ML7-003 | PIECE, OIL LOCK | ||
| 51434-MC7-003 | SPRING, CLICK | ||
| 1 | 51435-MC7-003 | WASHER, SPECIAL (5MM) | 1 |
| 51436-ML7-003 | PISTON | ||
| 1 | 51437-ME4-003 | RING, PISTON | 1 |
| 51439-340-300 | RING, PISTON STOPPER | ||
| 51440-ML7-003 | PIPE, SEAT Use up to Frame SN GM001536 | ||
| 51440-ML7-013 | PIPE, SEAT Use from Frame SN GM001537 | ||
| 51441-ML7-003 | RUBBER, STOPPER | ||
| 1 | 51442-MJ0-003 | BOOT, PISTON CASE | 1 |
| 1 | 51445-MJ0-003 | RING, STOPPER | 1 |
| 1 | 51447-461-003 | CIRCLIP (INNER) (50MM) | 1 |
| 51450-ML7-003 | BOLT ASSY., FR. FORK | ||
| 51457-KM4-003 | CAP, AIR VALVE | ||
| 1 | 51490-KAZ-003 | SEAL SET, FR. FORK | 1 |
| 1 | 51490-ML7-305 | SEAL SET, FR. FORK | 1 |
| 1 | 51496-MC7-670 | MARK, FR. FORK | 1 |
| 51500-ML7-003 | FORK ASSY., L. FR. (SHOWA) Use up to Frame SN GM001536 | ||
| 51500-ML7-013 | CUSHION ASSY., L. FR. (SHOWA) Use from Frame SN GM001537 | ||
| 51500-ML7-023 | CUSHION ASSY., L. FR. (SHOWA) | ||
| 51500-ML7-033 | CUSHION ASSY., L. FR. (SHOWA) | ||
| 51510-ML7-003 | PIPE, L. FR. FORK Use up to Frame SN GM001536 | ||
| 51510-ML7-013 | PIPE, L. FR. FORK Use from Frame SN GM001537 | ||
| 51521-ML7-003 | CASE, L. (LOWER) | ||
| 51530-ML7-003 | CASE, PISTON | ||
| 51530-ML7-013 | CASE, PISTON | ||
| 51536-ML7-000 | COLLAR, L. FR. CALIPER BRACKET | ||
| 51540-ML7-003 | PIPE B, SEAT | ||
| 1 | 51545-MJ0-003 | BUSH, RUBBER | 1 |
| 51558-MK3-003 | PLATE, ADJUSTER | ||
| 51591-MK3-305 | ROD SET, ADJUSTER | ||
| 90111-MK7-671 | BOLT, SOCKET (6X8) | ||
| 1 | 90116-KV3-701 | BOLT, SOCKET (8MM) (SHOWA) | 1 |
| 1 | 90116-ML4-003 | BOLT, SOCKET (8MM) | 1 |
| 90116-ML7-003 | BOLT, SOCKET (5X13.5) | ||
| 90150-MK3-003 | SCREW, SOCKET | ||
| 1 | 90309-KF0-003 | NUT, FLANGE (8MM) | 1 |
| 1 | 90309-428-731 | NUT, FLANGE (8MM) | 1 |
| 1 | 90543-273-000 | GASKET, FR. FORK DRAIN VALVE | 1 |
| 1 | 90544-283-000 | WASHER, SPECIAL (8MM) | 1 |
| 90602-KM9-000 | RING, SNAP | ||
| 91071-ML7-003 | BEARING, NEEDLE (1422) | ||
| 1 | 91254-KAZ-003 | DUST SEAL | 1 |
| 1 | 91254-ML7-003 | DUST SEAL | 1 |
| 91304-ML7-003 | O-RING | ||
| 1 | 91310-MJ0-003 | O-RING | 1 |
| 1 | 91356-KF0-003 | O-RING (21.7X3.5) (SHOWA) | 1 |
| 1 | 91356-MJ6-741 | O-RING (30.2X2.4) | 1 |
| 1 | 93500-05006-0G | SCREW, PAN (5X6) | 1 |
| 1 | 93500-05006-1G | SCREW, PAN (5X6) | 1 |
| 1 | 96211-05000 | BALL, STEEL (#5) (5/32) | 1 |
| 96400-08060-00 | BOLT, FLANGE (8X60) | ||
| 96500-08060-00 | BOLT, FLANGE (8X60) Use from Frame SN GM001537 |
