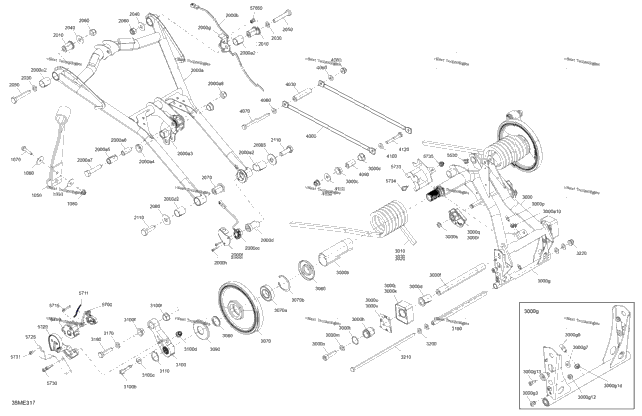

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503195313 | Stopper Strap | 1 |
| 2 | 503193995 | Washer | 2 |
| 1 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 503196000 | Front Suspension Arm Ass'y Includes 2000a to 2000a8 | 1 |
| 4 | 503191556 | Extended Bushing | 4 |
| 1 | 503196878 | Rocker | 1 |
| 2 | 503191555 | Swivel Bushing | 2 |
| 1 | 503193037 | Bushing | 1 |
| 1 | 503189282 | Bushing | 1 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 1 | 233601416 | Elastic Locking Nut M10 X 1.5 | 1 |
| 1 | 515178739 | Rear Suspension Wiring Harness | 1 |
| 1 | 503195951 | Hall Effect Sensor | 1 |
| 1 | 503196864 | Axle Suspension Arm Ass'y | 1 |
| 1 | 503196400 | Protection Sensor | 1 |
| 1 | 503196510 | Retaining Plate | 1 |
| 2 | 205541660 | Socket Screw M4 X 16 (Scotch Grip) | 2 |
| 2 | 503193714 | Upper Axle | 2 |
| 2 | 250200143 | Flat Washer | 2 |
| 2 | 503191926 | Washer | 2 |
| 2 | 207006056 | Hex. Cap Screw M10 X 60 | 2 |
| 2 | 233601466 | Elastic Locking Nut M10 | 2 |
| 1 | 503193716 | Lower Axle | 1 |
| 1 | 250200113 | Flat Washer, 12 mm | 1 |
| 1 | 503196366 | Washer | 1 |
| 2 | 250000537 | Hex. Cap Screw M12 X 35 | 2 |
| 1 | 503196853 | Rear Suspension Arm Ass'y Includes 3000 to 3000v | 1 |
| 1 | 232061404 | Hexagonal Nut M6 | 1 |
| 2 | 503192767 | Bushing | 2 |
| 4 | 503191555 | Swivel Bushing | 4 |
| 2 | 503191640 | Cushion | 2 |
| 1 | 503195743 | Lower Shaft | 1 |
| 1 | 503195658 | Pivot Arm Ass'y Includes 3000g to 3000g13 | 1 |
| 2 | 293150293 | Pop Rivet 3/16 X ,425 | 2 |
| 2 | 517225900 | Flat Washer | 2 |
| 1 | 408200700 | Grease Fitting | 1 |
| 2 | 232551414 | Elastic Stop Nut M5 | 2 |
| 2 | 205041060 | Socket Head Screw M4X 10 | 2 |
| 2 | 503195700 | Guide | 2 |
| 1 | 503195701 | LH Cam | 1 |
| 1 | 503195702 | RH Cam | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503191565 | LH Cam Adjuster | 1 |
| 1 | 503191566 | RH Cam Adjuster | 1 |
| 2 | 293370013 | E-Circlip | 2 |
| 2 | 503195853 | O-Ring | 2 |
| 1 | 516004900 | LH Block Sticker Decal | 1 |
| 1 | 516004901 | RH Block Sticker Decal | 1 |
| 1 | 503196052 | Black, LH Square Spring | 1 |
| 1 | 503196053 | Black, RH Square Spring | 1 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 503195817 | Black, Wheel Ass'y 165 Includes 3070 to 3070b | 2 |
| 1 | 503193548 | Ball Bearing | 1 |
| 1 | 415129780 | Retaining Ring | 1 |
| 2 | 503189146 | Axle Spring | 2 |
| 2 | 503192592 | Labyrinth Ring | 2 |
| 2 | 503195985 | Link Ass'y Includes 3100 to 3100f | 2 |
| 1 | 207085056 | Hex. Screw M8 | 1 |
| 1 | 503192494 | Washer | 1 |
| 1 | 233281466 | Elastic Flange Nut M8 | 1 |
| 2 | 293370080 | Retaining Ring | 2 |
| 2 | 207204056 | Cap Screw Hex. M10 X 40 | 2 |
| 1 | 503189156 | Pivot Arm Axle | 1 |
| 4 | 503192494 | Washer | 4 |
| 1 | 503192440 | Bolt M8 X 248mm | 1 |
| 2 | 503196492 | Link Rod | 2 |
| 1 | 503190643 | Axle Bar (Long) | 1 |
| 2 | 503192494 | Washer | 2 |
| 1 | 503193372 | Screw M8 X 90 | 1 |
| 2 | 503192555 | Axle Bar | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 207085556 | Hex. Screw M8 X 55 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 1 | 293720125 | Grommet | 1 |
| 1 | 503195631 | Rear Sensor Support | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 2 | 293150093 | Pop Rivet 3/16” | 2 |
| 1 | 503196898 | Lever Sensor Ass'y | 1 |
| 1 | 503196897 | Guard | 1 |
| 2 | 250001239 | Screw Socket Head M6 X 25 | 2 |
| 1 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 1 |
| 1 | 503196928 | Tank Support Shock Absorber | 1 |
| 1 | 207582054 | Hex Screw Washer Head M8 X 20 | 1 |
| 1 | 293150263 | Black, 3/16" Pop Rivet | 1 |
