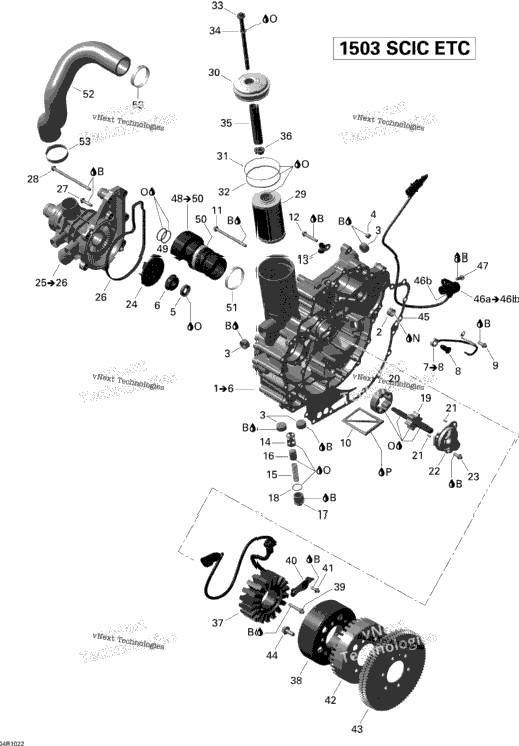

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420910521 | Timing/Drive Cover Ass'y Includes 1 to 6 | 1 |
| 1 | 420232480 | Needle Bushing | 1 |
| 4 | 420641317 | Plug Screw M20 X 1.5 | 4 |
| 1 | 420641323 | Plug Screw M10 X 1 | 1 |
| 1 | 420650310 | Oil Seal | 1 |
| 1 | 420650370 | Rotary Seal | 1 |
| 1 | 420856875 | Gicleur d'Huile Includes 7 to 8 | 1 |
| 1 | 420840180 | Banjo Screw | 1 |
| 1 | 420641048 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420956950 | Oil Sieve | 1 |
| 11 | 420641228 | Torx Flange Screw M6 X 85 | 11 |
| 10 | 420641258 | Torx Flange Screw M6 X 35 | 10 |
| 1 | 420853414 | Clamp | 1 |
| 1 | 420256606 | Valve Seat Sleeve | 1 |
| 420939410 | Compression Spring | ||
| 1 | 420256631 | Piston Valve | 1 |
| 1 | 420641052 | Plug Screw M20 X 1.5 | 1 |
| 1 | 420230890 | O-Ring | 1 |
| 1 | 420837472 | Pump Shaft Ass'y | 1 |
| 1 | 420956675 | Oil Pump Rotor 16 mm | 1 |
| 2 | 420929070 | Needle Pin | 2 |
| 1 | 420811590 | Oil Pump Cover | 1 |
| 3 | 420641048 | Torx Flange Screw M6 X 16 | 3 |
| 1 | 420922801 | Impeller | 1 |
| 1 | 420922686 | Water Pump Housing Ass'y Includes 25 to 26 | 1 |
| 1 | 420950840 | Water Pump Housing Gasket | 1 |
| 6 | 420641238 | Torx Flange Screw M6 X 25 | 6 |
| 2 | 420641338 | Torx Flange Screw M6 X 105 | 2 |
| 1 | 420956741 | Oil Filter | 1 |
| 1 | 420612080 | Oil Filter Cover | 1 |
| 1 | 420850500 | O-Ring | 1 |
| 1 | 420230920 | O-Ring | 1 |
| 1 | 420641103 | Hex. Screw M8 X 140.5 | 1 |
| 1 | 420950860 | O-Ring | 1 |
| 1 | 420857229 | Spacer | 1 |
| 1 | 420842610 | Hex. Nut M8 | 1 |
| 1 | 420889721 | Stator Plate | 1 |
| 1 | 420296900 | Magneto Flywheel | 1 |
| 3 | 420641258 | Torx Flange Screw M6 X 35 | 3 |
| 1 | 420926300 | Retaining Plate | 1 |
| 2 | 420641048 | Torx Flange Screw M6 X 16 | 2 |
| 1 | 420664082 | Trigger Wheel | 1 |
| 1 | 420834488 | Starter Double Gear | 1 |
| 6 | 420641016 | Hex. Screw M8 X 20 | 6 |
| 1 | 420931130 | Timing Drive Cover Gasket (1603 NA) | 1 |
| 1 | 420966570 | Crankshaft Position Sensor Ass'y Includes 46a to 46b | 1 |
| 1 | 420431580 | O-Ring | 1 |
| 1 | 420832753 | Ball Bearing With Bellows Includes 48 to 50 | 1 |
| XXX | Not Available As Spare Parts Sport Boats Application Only | ||
| 1 | 420853023 | Gear Clamp 46.8-50.0MM | 1 |
| 1 | 420851653 | Gear Clamp | 1 |
| 1 | 420922825 | Formed Hose | 1 |
| 2 | 420851687 | Oetiker Clamp | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g | 1 |
| XXXX | Not Available As Spare Part - Engine Oil | ||
| 1 | 293800081 | Loctite 5910, 300 ml | 1 |
