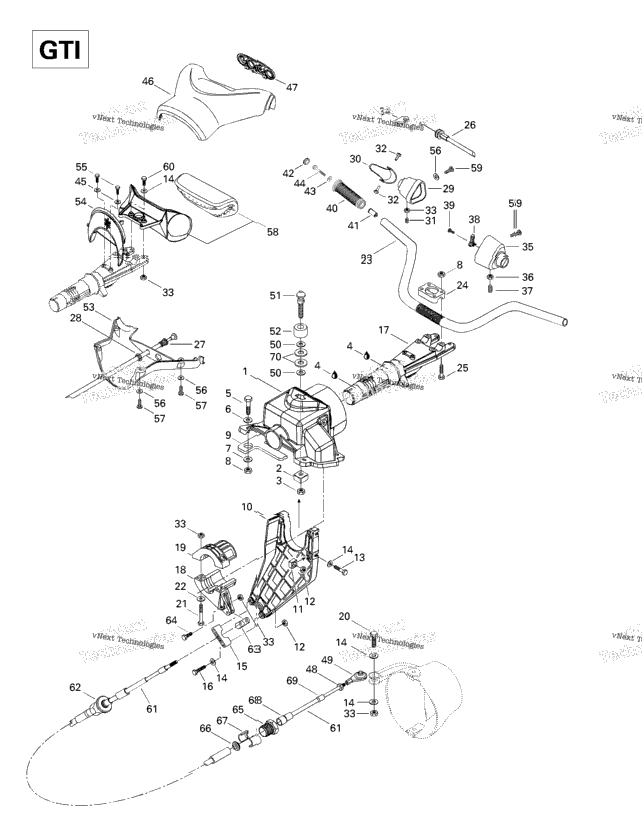

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277000515 | Steering Support Includes 1 - 3. GTI 5641. | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 2 - 3. GTI 5641. | ||
| 1 | 212000003 | Elastic Stop Nut M10 GTI 5641. | 1 |
| 293550010 | Synthetic Grease, 400 G GTI 5641. | ||
| 4 | 210100013 | Hex. Screw M8 x 35 GTI 5641. | 4 |
| 4 | 213200002 | Flat Washer 8 mm GTI 5641. | 4 |
| 4 | 213200011 | Flat Washer 8 mm GTI 5641. | 4 |
| 8 | 212000002 | Elastic Stop Nut M8 GTI 5641. | 8 |
| 1 | 293250068 | Gasket GTI 5641. | 1 |
| 277000516 | CABLE SUPPORT Includes 10 - 12. GTI 5641. | ||
| 3 | 269500252 | M6 Nut Housing Ass'y GTI 5641. | 3 |
| 5 | 212000001 | Elastic Stop Nut M6 GTI 5641. | 5 |
| 3 | 210000004 | Hex. Screw M6 x 20 GTI 5641. | 3 |
| 9 | 213200001 | Flat Washer 6 mm GTI 5641. | 9 |
| 1 | 277000162 | Support Thrust GTI 5641. | 1 |
| 2 | 215665060 | Hex. Screw M6 x 50 GTI 5641. | 2 |
| 277000562400 | Steering Stem GTI 5641. | ||
| 277000518 | Steering Stem Arm GTI 5641. | ||
| 277000519 | Arm Thrust GTI 5641. | ||
| 1 | 215664060 | Hex. Screw M6 x 40 GTI 5641. | 1 |
| 2 | 210000005 | Hex. Screw M6 x 25 GTI 5641. | 2 |
| 2 | 213200007 | Washer 6 mm GTI 5641. | 2 |
| 277000305 | Handle bar GTI 5641. | ||
| 277000142 | STEERING CLAMP GTI 5641. | ||
| 4 | 215685060 | Hex. Screw M8 x 50 GTI 5641. | 4 |
| 277000614 | THROTTLE CABLE GTI 5641. | ||
| 270000262 | Choke Cable Includes 27 - 28. GTI 5641. | ||
| 211100030 | NUT-HEXAGONAL HI-LEX GTI 5641. | ||
| 277000285 | Throttle Handle Housing GTI 5641. | ||
| 277000214 | Throttle Handle GTI 5641. | ||
| 211000039 | Set Screw M6 x 12 GTI 5641. | ||
| 2 | 277000381 | PIN GTI 5641. | 2 |
| 7 | 212000001 | Elastic Stop Nut M6 GTI 5641. | 7 |
| 1 | 277000279 | TAB LOCK GTI 5641. | 1 |
| 277000036 | LH HANDLE HOUSING ASS'Y Includes 35 - 37. GTI 5641. | ||
| 277000379 | LH HANDLE HOUSING GTI 5641. | ||
| 1 | 212000001 | Elastic Stop Nut M6 GTI 5641. | 1 |
| 277000219 | Retainer Plate GTI 5641. | ||
| 1 | 211000032 | Tapping Screw GTI 5641. | 1 |
| 1 | 295500110 | Handle Grip Kit (Black) Includes 40 - 44. GTI 5641. | 1 |
| XXXX | Grip Insert GTI 5641. | ||
| 2 | 277000203 | Black, Cap GTI 5641. | 2 |
| 2 | 211000031 | Hex. Screw M6 x 45 GTI 5641. | 2 |
| 277000632 | Upper Steering Cover GTI 5641. | ||
| 277000647 | Steering Cover Plug GTI 5641. | ||
| 1 | 212100005 | Hex. Nut GTI 5641. | 1 |
| 1 | 277000153 | BALL JOINT GTI 5641. | 1 |
| 2 | 217002600 | Flat Washer GTI 5641. | 2 |
| 291000987 | Stud Latch GTI 5641. | ||
| 293830025 | Rubber Pad GTI 5641. | ||
| 277000633 | Lower Steering Cover (Yellow) GTI 5641. | ||
| 1 | 277000549 | PLATE GTI 5641. | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 GTI 5641. | 2 |
| 6 | 213200004 | Flat Washer 5 mm GTI 5641. | 6 |
| 4 | 211000033 | Screw K40 x 16 GTI 5641. | 4 |
| 277000689 | Pad-Handle GTI 5641. | ||
| 4 | 211100004 | Tapping Screw GTI 5641. | 4 |
| 2 | 210000006 | Hex. Screw M6 x 30 GTI 5641. | 2 |
| 277000526 | STEERING CABLE Includes 61 - 62. GTI 5641. | ||
| 1 | 277000167 | KNOB ADJUSTER GTI 5641. | 1 |
| 277000646 | Joint GTI 5641. | ||
| 1 | 211000081 | Hex. Screw M6 X 30 GTI 5641. | 1 |
| 1 | 277000052 | Cable Lock GTI 5641. | 1 |
| 211100009 | RUBBER WASHER GTI 5641. | ||
| 2 | 277000055 | Half Ring GTI 5641. | 2 |
| 277000473 | Boot, Large GTI 5641. | ||
| 277000466 | Boot, Small GTI 5641. | ||
| 2 | 291000628 | RUBBER WASHER GTI 5641. | 2 |
