Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

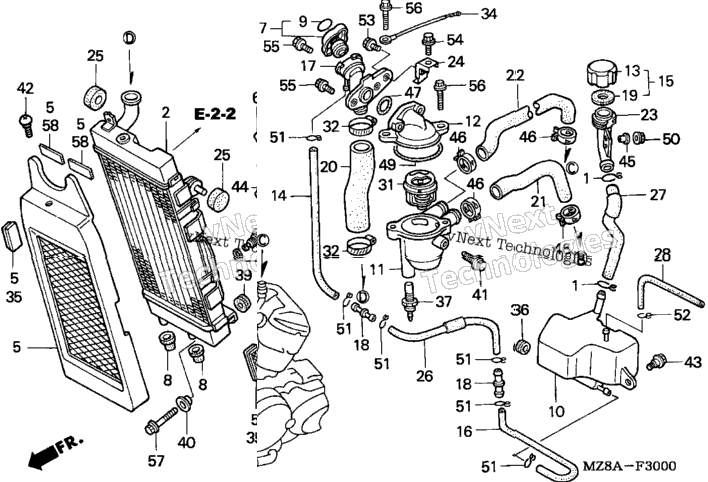

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 17316-611-000 | CLIP, BREATHER TUBE | 2 |
| 19010-MZ8-G21 | RADIATOR | ||
| 19010-MZ8-G22 | RADIATOR | ||
| 19015-MZ8-003 | SHROUD | ||
| 19030-MZ8-G21 | MOTOR ASSY., FAN | ||
| 19031-MZ8-K00 | GRILLE, RADIATOR | ||
| 1 | 19040-MF5-751 | FAN, COOLING (TOYO) | 1 |
| 1 | 19045-GBF-770 | CAP, RADIATOR | 1 |
| 2 | 19051-MB2-000 | RUBBER, RADIATOR MOUNTING | 2 |
| 1 | 19055-MV9-881 | SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) | 1 |
| 1 | 19055-MV9-921 | SEAL, RADIATOR CAP (ENGLISH) | 1 |
| 1 | 19101-MR1-010 | TANK, RESERVE | 1 |
| 19102-MR1-000 | CASE, THERMOSTAT | ||
| 19103-MR1-000 | CAP, THERMOSTAT | ||
| 1 | 19104-ME9-000 | CAP, RESERVE TANK | 1 |
| 19104-MR1-000 | TUBE B, RADIATOR RESERVE | ||
| 1 | 19105-MG8-000 | CAP ASSY., RESERVE TANK | 1 |
| 19105-MR1-000 | TUBE, RADIATOR RESERVE | ||
| 19106-MF5-003 | NECK, FILLER | ||
| 19106-MJ8-000 | JOINT, OVERFLOW TUBE | ||
| 1 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 |
| 1 | 19107-MR1-000 | HOSE, RADIATOR (UPPER) | 1 |
| 19108-MZ8-770 | HOSE, FR. OUTLET WATER | ||
| 1 | 19109-MR1-000 | HOSE, RR. OUTLET WATER | 1 |
| 19111-MR1-000 | NECK, RESERVE TANK FILLER | ||
| 1 | 19111-MZ8-G20 | STAY, THERMOSTAT | 1 |
| 2 | 19112-MF5-840 | MOUNT, RADIATOR (LOWER) | 2 |
| 19112-MR1-000 | TUBE C, RADIATOR RESERVE | ||
| 19113-MR1-000 | TUBE, RADIATOR RESERVE TANK | ||
| 19114-MR1-000 | TUBE, OVERFLOW | ||
| 1 | 19115-MR1-000 | HOSE, RADIATOR (LOWER) | 1 |
| 1 | 19116-MR1-000 | PROTECTOR, RADIATOR HOSE (LOWER) | 1 |
| 1 | 19300-KE8-000 | THERMOSTAT ASSY. | 1 |
| 2 | 19505-ML3-770 | CLAMP, WATER HOSE | 2 |
| 2 | 19509-MM5-003 | CLAMP, RADIATOR HOSE | 2 |
| 32111-167-000 | SUB-WIRE B | ||
| 2 | 33745-MBA-670 | REFLECTOR SET, FR. REFLEX | 2 |
| 1 | 36043-657-000 | GROMMET, WIRE HARNESS | 1 |
| 1 | 37760-MAV-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37760-MT2-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 61103-357-000 | RUBBER, FR. FENDER MOUNTING | 1 |
| 1 | 61104-422-000 | COLLAR, SETTING | 1 |
| 90042-ME9-000 | BOLT, SPECIAL (8MM) | ||
| 1 | 90107-KW7-930 | BOLT, COWL SETTING | 1 |
| 1 | 90111-162-000 | BOLT, FLANGE (6MM) | 1 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 1 | 90522-MF5-000 | WASHER, FR. COVER | 1 |
| 1 | 90522-170-700 | COLLAR, GEARSHIFT LEVER SETTING | 1 |
| 4 | 90701-MF5-003 | CLAMP, WATER HOSE (21MM) | 4 |
| 1 | 91302-MF5-000 | O-RING (18.9X1.5) | 1 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (13.5X1.4) | 1 |
| 1 | 91311-KE8-000 | O-RING (47.5X2) | 1 |
| 1 | 94050-06000 | NUT, FLANGE (6MM) | 1 |
| 6 | 95002-02120 | CLIP, TUBE (B12) | 6 |
| 1 | 95002-70000 | CLIP, TUBE (C11) | 1 |
| 1 | 95701-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 5 | 96001-06010-00 | BOLT, FLANGE (6X10) | 5 |
| 2 | 96001-06012-00 | BOLT, FLANGE (6X12) | 2 |
| 2 | 96001-06020-00 | BOLT, FLANGE (6X20) | 2 |
| 1 | 96001-06025-07 | BOLT, FLANGE (6X25) | 1 |
| 2 | 80126-GAG-750 | RUBBER, SPACER | 2 |
