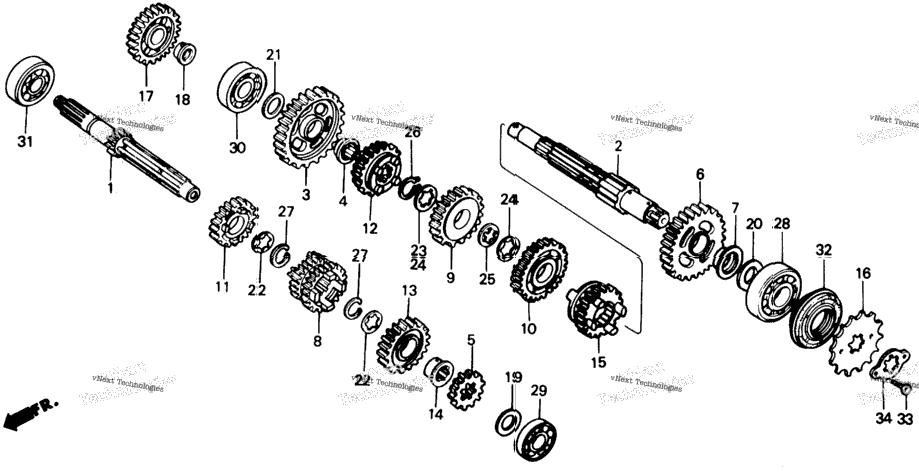

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 23210-KR0-010 | MAINSHAFT, TRANSMISSION (13T) | ||
| 23220-KK0-770 | COUNTERSHAFT, TRANSMISSION Use up to Engine SN 5200037 | ||
| 23220-KT1-000 | COUNTERSHAFT, TRANSMISSION Use from Engine SN 5200038 | ||
| 23411-KK1-000 | GEAR, COUNTERSHAFT LOW (36T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23412-KK0-000 | BUSH (18MM) | ||
| 23421-KK0-770 | GEAR, MAINSHAFT SECOND (17T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23431-KK1-000 | GEAR, COUNTERSHAFT SECOND (33T) | ||
| 23432-KK0-000 | COLLAR (22MM) (SOURCE: VINTAGE PARTS INC.) | ||
| 23441-KK1-000 | GEAR, MAINSHAFT THIRD & FOURTH (23T & 20T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23451-KK1-000 | GEAR, COUNTERSHAFT THIRD (29T) | ||
| 23471-KK1-000 | GEAR, COUNTERSHAFT FOURTH (27T) Use up to Engine SN 5200037 | ||
| 23471-KT1-000 | GEAR, COUNTERSHAFT FOURTH (27T) (SOURCE: VINTAGE PARTS INC.) | ||
| 23481-KK1-000 | GEAR, MAINSHAFT FIFTH (25T) | ||
| 23491-KK1-000 | GEAR, COUNTERSHAFT FIFTH (24T) | ||
| 23501-KK0-770 | GEAR, MAINSHAFT SIXTH (27T) | ||
| 23505-KL4-000 | COLLAR, SPLINE (23MM) (SOURCE: VINTAGE PARTS INC.) | ||
| 23511-KK0-770 | GEAR, COUNTERSHAFT SIXTH (22T) | ||
| 23801-KK1-000 | SPROCKET, DRIVE (13T) | ||
| 28211-KK0-000 | PINION, KICK STARTER (24T) | ||
| 28221-KK0-000 | GEAR, KICK STARTER IDLE (27T) | ||
| 1 | 28222-KK0-000 | BUSH (15MM) | 1 |
| 1 | 90451-107-000 | WASHER, THRUST (15MM) | 1 |
| 1 | 90454-KF0-000 | WASHER, THRUST (17MM) | 1 |
| 2 | 90455-107-000 | WASHER A, SPLINE (20MM) | 2 |
| 2 | 90464-360-000 | WASHER, COUNTERSHAFT THIRD SPLINE | 2 |
| 90465-KK0-000 | WASHER, LOCK Use up to Engine SN 5200037 | ||
| 90465-KE1-000 | WASHER, LOCK Use from Engine SN 5200038 | ||
| 90465-KE1-010 | WASHER, LOCK (SOURCE: VINTAGE PARTS INC.) Use from Engine SN 5200038 | ||
| 1 | 90601-437-000 | CIRCLIP (OUTER) (22MM) | 1 |
| 2 | 90605-200-000 | SET-RING (20MM) | 2 |
| 1 | 91004-KK0-003 | BEARING, BALL (62/22) (NTN CORP.) | 1 |
| 1 | 91004-KW3-004 | BEARING, BALL (62/22) (KOYO) | 1 |
| 1 | 91005-KK0-003 | BEARING, BALL (6202) (NTN) | 1 |
| 1 | 91007-KK0-000 | BEARING, RADIAL BALL (17X42X12) (NTN) | 1 |
| 91006-KK0-003 | BEARING, BALL (6204) (NTN) | ||
| 1 | 91201-KK1-641 | OIL SEAL (20X36X8) (NOK) | 1 |
| 2 | 92000-06010 | BOLT, HEX. (6X10) | 2 |
| 2 | 92000-06010-0A | BOLT, HEX. (6X10) | 2 |
| 2 | 92101-06010-0A | BOLT, HEX. (6X10) | 2 |
| 1 | 95014-92100 | PLATE B, FIXING | 1 |
