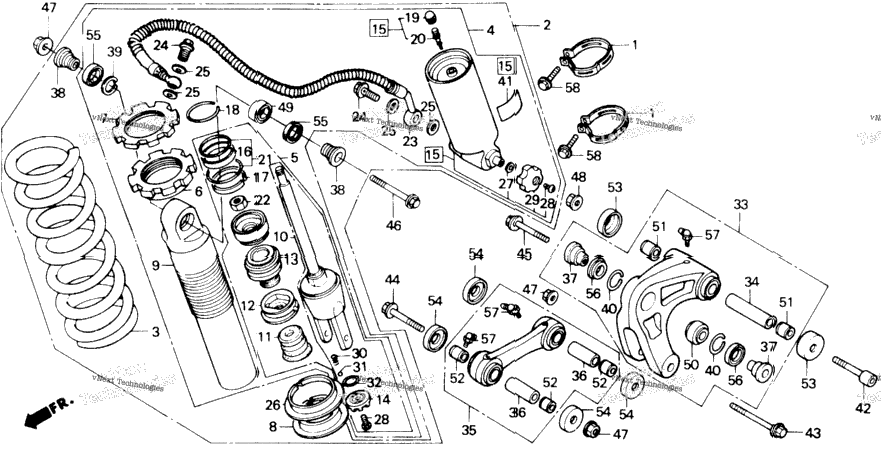

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 52427-KZ1-671 | CAP | ||
| 50252-KT1-670 | BAND, SUB-TANK | ||
| 52400-KT1-671 | SHOCK ABSORBER ASSY., RR. (KAYABA) | ||
| 52401-KT1-671 | SPRING, RR. SHOCK ABSORBER (KAYABA) | ||
| 52410-KT1-671 | DAMPER, RR. (KAYABA) | ||
| 52421-KT1-671 | ROD, PISTON | ||
| 52422-KS6-004 | SEAT, SPRING (UPPER) | ||
| 52423-KS6-004 | NUT, ADJUSTER | ||
| 52424-KT1-671 | SEAT, SPRING (LOWER) | ||
| 52424-KS6-701 | SEAT, SPRING (LOWER) | ||
| 52425-KT1-671 | CASE, RR. SHOCK ABSORBER | ||
| 52426-KT1-671 | ROD | ||
| 1 | 52427-KT1-671 | RUBBER, BUMPER | 1 |
| 52428-KA3-731 | CAP, CASE | ||
| 1 | 52429-KS6-004 | CASE, ROD GUIDE (KAYABA) | 1 |
| 52429-KT0-671 | DIAL, ADJUSTING | ||
| 52430-KT1-671 | SUB-TANK ASSY. | ||
| 52431-KS6-014 | RING A, PISTON (KAYABA) | ||
| 52433-KS6-004 | RING B, PISTON (KAYABA) | ||
| 52435-KS6-004 | RING, SNAP (KAYABA) | ||
| 52436-KA3-731 | CAP, AIR VALVE | ||
| 52437-KA3-832 | O-RING SET (KAYABA) | ||
| 1 | 52438-KA3-731 | NUT, HEX. (12MM) | 1 |
| 52440-KT1-671 | HOSE, JOINT | ||
| 52441-KA3-731 | BOLT, OIL | ||
| 4 | 52442-KA3-731 | WASHER, OIL BOLT | 4 |
| 52445-KT1-671 | WASHER, SPRING SEAT | ||
| 52447-KA3-731 | O-RING (2.4X10.8) | ||
| 52448-KS6-004 | SCREW, PAN (3X8) | ||
| 52449-KA3-731 | DIAL, ADJUSTING | ||
| 52455-KT0-671 | SPRING, CLICK | ||
| 52456-KT0-671 | BALL | ||
| 52457-KT0-671 | DUST SEAL | ||
| 52460-KN5-000 | ARM ASSY., CUSHION | ||
| 1 | 52463-KN5-000 | COLLAR, CUSHION ARM PIVOT | 1 |
| 52470-KN5-000 | ROD ASSY., RUBBER CONNECTING (SOURCE: VINTAGE PARTS INC.) | ||
| 2 | 52473-KN5-000 | COLLAR, CUSHION CONNECTING ROD | 2 |
| 2 | 52486-KN5-000 | COLLAR, DAMPER | 2 |
| 52486-KS6-004 | COLLAR, SHOCK ABSORBER (UPPER) | ||
| 52487-KA3-731 | RING, STOPPER | ||
| 2 | 52487-KN5-000 | RING, STOPPER | 2 |
| 87516-KA3-741 | LABEL, RR. DAMPER CAUTION | ||
| 1 | 90128-KT1-670 | BOLT, SOCKET (12X101) | 1 |
| 1 | 90128-MN1-670 | BOLT, SOCKET (12X102) | 1 |
| 1 | 90129-KF0-000 | BOLT, FLANGE (10X77) | 1 |
| 90151-KF0-000 | BOLT, FLANGE (10X69) | ||
| 90151-KV6-910 | BOLT, FLANGE (10X69) | ||
| 90153-KA3-730 | BOLT, FLANGE (10X48) | ||
| 90154-KA3-830 | BOLT, FLANGE (10X52) (SOURCE: VINTAGE PARTS INC.) | ||
| 3 | 90304-GE8-003 | NUT, U (10MM) (FUSE RASHI) | 3 |
| 1 | 90306-KF0-003 | NUT, FLANGE (12MM) (FUSE RASHI) | 1 |
| 91077-KA3-831 | BEARING, SPHERICAL (14MM) | ||
| 1 | 91077-KN5-004 | BEARING, SPHERICAL (14MM) | 1 |
| 2 | 91078-KN5-003 | BEARING, CUSHION ARM (NTN) | 2 |
| 4 | 91079-KN5-003 | BEARING, CONNECTING ROD | 4 |
| 2 | 91261-KN5-003 | SEAL, CUSHION ARM | 2 |
| 4 | 91262-KN5-003 | SEAL, CUSHION CONNECTING ROD PIVOT | 4 |
| 2 | 91351-KA3-831 | DUST SEAL, RR. SHOCK (UPPER) | 2 |
| 2 | 91351-KN5-004 | DUST SEAL B | 2 |
| 3 | 96201-80000 | NIPPLE, GREASE (B.T6S) | 3 |
| 2 | 96300-06022-00 | BOLT, FLANGE (6X22) | 2 |
| 2 | 96500-06022-00 | BOLT, FLANGE (6X22) | 2 |
