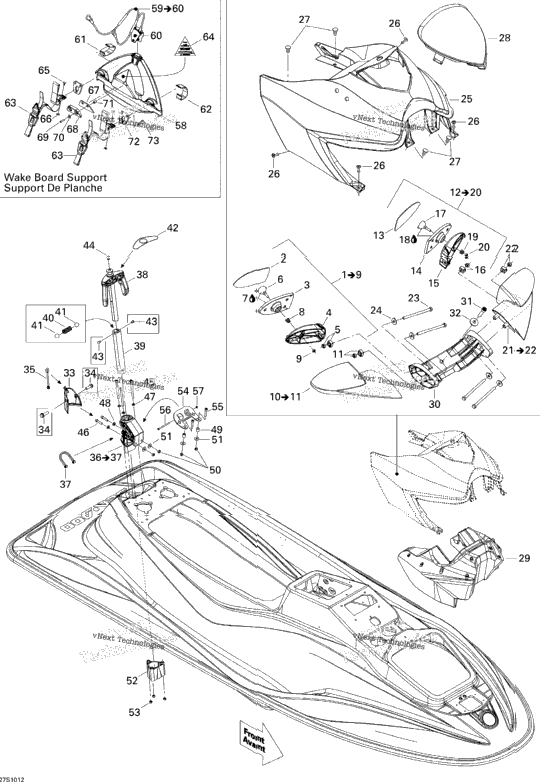

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501393 | RH Mirror Ass'y Includes 1 to 9 | ||
| XXXX | Not Available As Spare Part - RH Mirror | ||
| 269500697 | Frame Mirror | ||
| XXXX | Not Available As Spare Part - Housing Support | ||
| 1 | 269501387 | Nut Housing Ass'y | 1 |
| 269500079 | MIRROR BALL JOINT | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 269500453 | Mirror Spring | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 269501522 | RH MIRROR SHELL ASS'Y Includes 10 to 11 | ||
| 269501394 | LH Mirror Ass'y Includes 12 to 20 | ||
| XXXX | Not Available As Spare Part - LH Mirror | ||
| 269501521 | LH MIRROR SHELL ASS'Y Includes 21 to 22 | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 1 | 291002799 | Podium | 1 |
| 6 | 293150123 | Pop Rivet 3/16" | 6 |
| 4 | 293730039 | Dart | 4 |
| 1 | 291002511 | Wind Screen | 1 |
| 292001095 | FLOAT PLATFORM | ||
| 277001475 | MIRROR SUPPORT | ||
| 1 | 205004060 | SOCKET HEAD SCREW M10 X 40 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 291002661 | CAP | 1 |
| 2 | 241141360 | Hex. Flange Screw K40 X 13 | 2 |
| 1 | 269501743 | Strap | 1 |
| 291002560 | POST SUPPORT ASS'Y Includes 36 to 37 | ||
| 1 | 293250183 | Strap | 1 |
| 1 | 291002812 | Molded Handle | 1 |
| 291002642 | ALUMINUM POST | ||
| 1 | 269501651 | Ball Spring | 1 |
| 2 | 293350062 | Ball 1/4" | 2 |
| 1 | 219903137 | Warning Label | 1 |
| 2 | 293150167 | Type "U" Metallic Drive Screw | 2 |
| 291001519 | Bumper Plug, Black | ||
| 3 | 231080060 | SOCKET HEAD SCREW M8 X 100 | 3 |
| 2 | 205083560 | SOCKET HEAD SCREW M8 X 35 | 2 |
| 3 | 234081600 | Stainless, Flat Washer 8 mm | 3 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 291002796 | SPACER | 2 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 291002787 | Flange | ||
| 3 | 232581200 | Hex. Elastic Nut M8 Brass | 3 |
| 291002800 | Post Reinforcement Brace | ||
| 2 | 205084560 | Socket Head Screw M8 X 45 | 2 |
| 1 | 207068060 | Hex. Screw M6 x 80 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 291002256 | Board Support | ||
| 1 | 291002026 | ELASTIC ROPE ASS'Y Includes 59 to 60 | 1 |
| XXXX | Not Available As Spare Part - Rope Cap | ||
| 291002027 | LH Bracket Support | ||
| 291002028 | RH BRACKET SUPPORT | ||
| 2 | 291002029 | STRAP ASS'Y | 2 |
| 219902347 | Warning Decal, English, Secure Board | ||
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 2 | 517124300 | Washer | 2 |
| 1 | 293250149 | GASKET | 1 |
| 293830116 | Spacer | ||
| 2 | 205462560 | SOCKET SCREW M6 X 25 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250100083 | Expansion Nut M6 X 1 | 2 |
| 4 | 291002050 | BOARD RACK | 4 |
| 12 | 250000382 | SCREW-TAPP.CTSK.FL.HD.TORX #8 X 1 | 12 |
