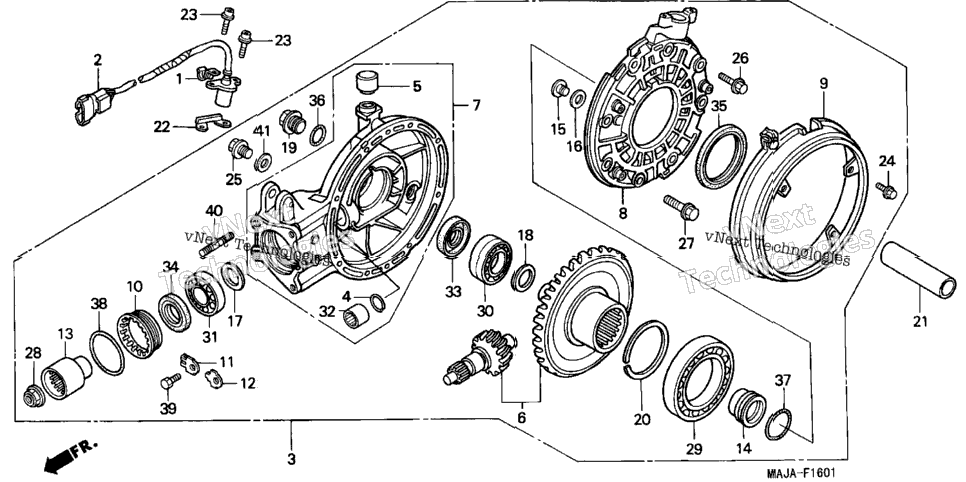

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16106-KW7-900 | CLIP B, TUBE | 1 |
| 38510-MAJ-781 | SENSOR, RR. WHEEL SPEED | ||
| 41300-MY3-780 | GEAR ASSY., FINAL | ||
| 1 | 41305-MB4-770 | RING, STOPPER | 1 |
| 1 | 41306-MB0-010 | CAP, BREATHER | 1 |
| 1 | 41306-MB0-020 | CAP, BREATHER | 1 |
| 41310-MT3-305 | GEAR SET, FINAL | ||
| 41311-MT3-305 | CASE SET, FINAL | ||
| 41321-MY3-780 | COVER, GEAR CASE | ||
| 1 | 41324-MY3-780 | PLATE, DUST GUARD | 1 |
| 1 | 41331-MN5-000 | RETAINER, BEARING | 1 |
| 1 | 41333-415-000 | LOCK B, BEARING ADJUSTING (DOUBLE TABS) | 1 |
| 1 | 41332-415-000 | LOCK A, BEARING ADJUSTING (SINGLE TAB) | 1 |
| 1 | 41410-MN5-000 | JOINT, PINION | 1 |
| 41433-MG9-000 | HOLDER, O-RING | ||
| 1 | 41436-MB0-310 | PIN, RING GEAR STOPPER | 1 |
| 1 | 41437-MB0-310 | SHIM A, STOPPER PIN (0.10) | 1 |
| 1 | 41438-MB0-310 | SHIM B, STOPPER PIN (0.15) | 1 |
| 1 | 41450-MT3-610 | SHIM A, PINION GEAR (1.32) | 1 |
| 1 | 41451-MT3-610 | SHIM B, PINION GEAR (1.35) | 1 |
| 1 | 41452-MT3-610 | SHIM C, PINION GEAR (1.38) | 1 |
| 1 | 41453-MT3-610 | SHIM D, PINION GEAR (1.41) | 1 |
| 1 | 41454-MT3-610 | SHIM E, PINION GEAR (1.44) | 1 |
| 1 | 41455-MT3-610 | SHIM F, PINION GEAR (1.47) | 1 |
| 1 | 41456-MT3-610 | SHIM G, PINION GEAR (1.50) | 1 |
| 1 | 41457-MT3-610 | SHIM H, PINION GEAR (1.53) | 1 |
| 1 | 41458-MT3-610 | SHIM I, PINION GEAR (1.56) | 1 |
| 1 | 41459-MT3-610 | SHIM J, PINION GEAR (1.59) | 1 |
| 1 | 41460-MT3-610 | SHIM K, PINION GEAR (1.62) | 1 |
| 1 | 41461-MT3-610 | SHIM L, PINION GEAR (1.65) | 1 |
| 1 | 41462-MT3-610 | SHIM M, PINION GEAR (1.68) | 1 |
| 1 | 41510-MB0-003 | WASHER, SPECIAL (35X40) | 1 |
| 1 | 41511-ME5-000 | CAP, GEAR CASE OIL | 1 |
| 1 | 41530-MT3-610 | SHIM A, RING GEAR (1.82) | 1 |
| 1 | 41531-MT3-610 | SHIM B, RING GEAR (1.85) | 1 |
| 1 | 41532-MT3-610 | SHIM C, RING GEAR (1.88) | 1 |
| 1 | 41533-MT3-610 | SHIM D, RING GEAR (1.91) | 1 |
| 1 | 41534-MT3-610 | SHIM E, RING GEAR (1.94) | 1 |
| 1 | 41535-MT3-610 | SHIM F, RING GEAR (1.97) | 1 |
| 1 | 41536-MT3-610 | SHIM G, RING GEAR (2.00) | 1 |
| 1 | 41537-MT3-610 | SHIM H, RING GEAR (2.03) | 1 |
| 1 | 41538-MT3-610 | SHIM I, RING GEAR (2.06) | 1 |
| 1 | 41539-MT3-610 | SHIM J, RING GEAR (2.09) | 1 |
| 1 | 41540-MT3-610 | SHIM K, RING GEAR (2.12) | 1 |
| 1 | 41541-MT3-610 | SHIM L, RING GEAR (2.15) | 1 |
| 1 | 41542-MT3-610 | SHIM M, RING GEAR (2.18) | 1 |
| 1 | 41543-MT3-610 | SHIM N, RING GEAR (2.21) | 1 |
| 1 | 41544-MT3-610 | SHIM O, RING GEAR (2.24) | 1 |
| 1 | 41545-MT3-610 | SHIM P, RING GEAR (2.27) | 1 |
| 1 | 41546-MT3-610 | SHIM Q, RING GEAR (2.30) | 1 |
| 1 | 42625-MT3-000 | COLLAR, RR. DISTANCE (B) | 1 |
| 1 | 57451-MY3-780 | SHIM, WHEEL SENSOR | 1 |
| 2 | 90010-MJ6-000 | BOLT, FLANGE SOCKET (6X16) | 2 |
| 3 | 90013-883-000 | BOLT, FLANGE (6X12) (CT200) | 3 |
| 1 | 90081-MC7-000 | BOLT, PLUG (14MM) | 1 |
| 6 | 90133-MB0-000 | BOLT, FLANGE (8X27) | 6 |
| 2 | 90134-HA0-000 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90381-MT3-000 | NUT, HEX. (16MM) | 1 |
| 1 | 91051-MN5-003 | BEARING, RADIAL BALL (65X100X11) (TOYO) | 1 |
| 1 | 91052-MN5-003 | BEARING, RADIAL BALL (35X62X18) ( TOYO) | 1 |
| 1 | 91061-MT3-003 | BEARING, RADIAL BALL (QJ3/28V1) | 1 |
| 91062-MG9-013 | BEARING, NEEDLE (20X35X18) | ||
| 1 | 91261-MY3-003 | OIL SEAL (35X54X8) (NOK) | 1 |
| 1 | 91262-MY3-003 | OIL SEAL (39X56X7) (NOK) | 1 |
| 1 | 91265-MY3-003 | OIL SEAL (65X85X7) (NOK) | 1 |
| 1 | 91302-001-020 | O-RING (30.8MM) (Honda Code 0001065) | 1 |
| 1 | 91356-MG9-003 | O-RING (39.5X2.4) (ARAI) (Honda Code 1532365) | 1 |
| 1 | 91356-MG9-004 | O-RING (39.5X2.4) (NOK) | 1 |
| 1 | 91359-MG9-003 | O-RING (64.5X3.5) (ARAI) | 1 |
| 1 | 92101-06012-0A | BOLT, HEX. (6X12) BOLT, FLANGE (6X12) | 1 |
| 4 | 92900-10032-0E | BOLT, STUD (10X32) | 4 |
| 1 | 94109-14000 | WASHER, DRAIN PLUG (14MM) | 1 |
