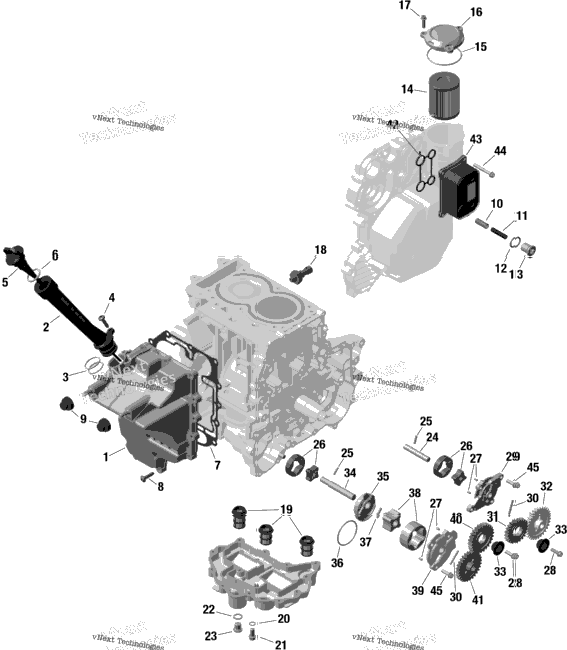

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420956210 | Oil Pump Cover | 1 |
| 1 | 420656901 | Oil Filler Tube | 1 |
| 2 | 420430440 | O-Ring Included in gasket kit | 2 |
| 1 | 420441386 | Torx Flange Screw M6 X 20 | 1 |
| 1 | 420856670 | Oil Dipstick Includes no. 5-6 | 1 |
| 1 | 420631642 | O-Ring Included in gasket kit | 1 |
| 1 | 420431770 | Gasket Included in gasket kit | 1 |
| 14 | 420841549 | Torx Flange Screw M6 X 25 | 14 |
| 2 | 420860150 | Rubber Grommet | 2 |
| 1 | 420256518 | Pressure Regulating Piston | 1 |
| 1 | 420239445 | Spring | 1 |
| 1 | 420430623 | Gasket Ring Included in gasket kit | 1 |
| 1 | 420441372 | Plug Screw | 1 |
| 1 | 9779253 | Ski-Doo Oil Change Kit 0W40 600 ACE | 1 |
| 1 | 420956124 | Oil Filter | 1 |
| 1 | 420230920 | O-Ring | 1 |
| 1 | 420612132 | Oil Filter Cover | 1 |
| 3 | 420440207 | Torx Flange Screw M6 X 20 | 3 |
| 1 | 420256915 | Oil Pressure Switch | 1 |
| 3 | 420656680 | Oil Sieve | 3 |
| 1 | 420950141 | Sealing Ring Included in gasket kit | 1 |
| 1 | 420440852 | Torx Flange Screw M8 X 16 | 1 |
| 1 | 420250640 | Copper Washer Included in gasket kit | 1 |
| 1 | 420241701 | Plug Screw M12 x 1,5 | 1 |
| 1 | 420820120 | Oil Pump Shaft | 1 |
| 2 | 420232731 | Needle Pin | 2 |
| 2 | 420256348 | Oil Pump Rotor | 2 |
| 4 | 420929075 | Needle Pin | 4 |
| 2 | 420440207 | Torx Flange Screw M6 X 20 | 2 |
| 1 | 420911081 | Oil Pump Cover | 1 |
| 2 | 420232431 | Needle Pin | 2 |
| 1 | 420835400 | Gear 22 Teeths | 1 |
| 1 | 420834882 | Oil Pump Gear, 29 Teeth | 1 |
| 1 | 420947394 | Spacer | 1 |
| 1 | 420837916 | Oil Pump Shaft | 1 |
| 1 | 420611950 | Oil Pump Cover | 1 |
| 1 | 420631830 | O-Ring Included in gasket kit | 1 |
| 1 | 420632221 | Needle Pin | 1 |
| 1 | 420256836 | Oil Pump Rotor | 1 |
| 1 | 420611981 | Oil Pump Cover | 1 |
| 1 | 420835321 | Idle Gear, 26 Teeth | 1 |
| 1 | 420834887 | Oil Pump Gear, 28 Teeth | 1 |
| 1 | 420431870 | Oil Cooler Gasket Included in gasket kit | 1 |
| 1 | 420656698 | Oil Water Heat Exchanger | 1 |
| 4 | 420440324 | Torx Flange Screw M6 X 45 | 4 |
| 7 | 420440207 | Torx Flange Screw M6 X 20 | 7 |
