Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

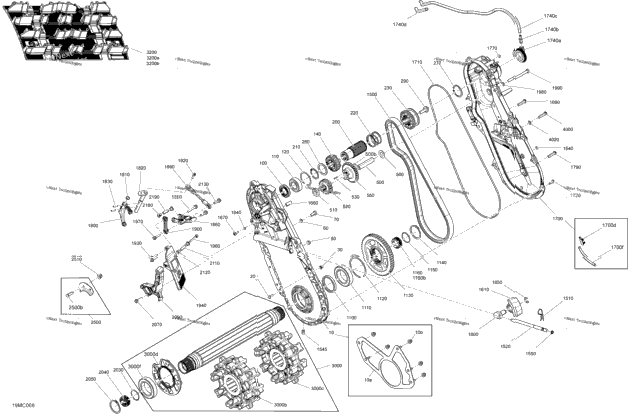

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 7 | 504154233 | Chain Case Ass'y Includes 10 to 10b | 7 |
| 1 | 504153560 | Plate Ass'y | 1 |
| 8 | 233261434 | Flange Elastic Nut M6 | 8 |
| 1 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 1 |
| 1 | 293150149 | Collar Huck Magna-Grip 6.4 | 1 |
| 9 | 504082900 | Washer | 9 |
| 6 | 250000740 | Torx Screw M8 X 20, Scotch Grip | 6 |
| 6 | 293200168 | Oil Seal | 6 |
| 1 | 293350153 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 6 | 504154082 | Sprocket 21 Teeth Ass'y | 6 |
| 1 | 504153500 | Connecting Shaft Ass'y | 1 |
| 1 | 293370183 | External Retaining Ring | 1 |
| 6 | 504153179 | Spring Release | 6 |
| 1 | 504153502 | Sliding Gear 27 Teeth Machined | 1 |
| 1 | 504152689 | Washer | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 504153519 | Axle Reverse Ass'y Includes 500 to 500b | 1 |
| 1 | 250400010 | Rolled Pin M3 X 10 | 1 |
| 1 | 504078700 | Ring | 1 |
| 6 | 504154086 | Sprocket 19 Teeth Ass'y | 6 |
| 6 | 570048600 | Alignement Rod | 6 |
| 6 | 504154087 | Gear Straight 29 Teeth Ass'y | 6 |
| 1 | 504077300 | Spacer | 1 |
| 6 | 293200159 | Oil Seal | 6 |
| 6 | 293350059 | Ball Bearing | 6 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504153998 | Sprocket 53 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 6 | 504154019 | Magnetic Cap Includes 1160 to 1160b | 6 |
| 1 | 504154043 | Cap | 1 |
| 1 | 504153397 | Drive Chain 116 Links | 1 |
| 7 | 414575600 | Hair Pin | 7 |
| 6 | 504153760 | Adjustment Screw | 6 |
| 6 | 250500013 | Hex. Countersunk Drain Plug | 6 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 504154577 | Chain Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 250200185 | Copper Washer | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 504153531 | Slide Chain | 1 |
| 6 | 250000717 | Torx Head Screw M6 X 16 | 6 |
| 6 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 6 |
| 7 | 504154076 | Black, Chain Case Cover Ass'y Includes 1700 to 1700f | 7 |
| 1 | 515178223 | Clip Connector | 1 |
| 3 | 415130141 | Braided Sleeve | 3 |
| 1 | 293300200 | O-Ring | 1 |
| 1 | 250001153 | Hex. Flange Screw M6X20 | 1 |
| 1 | 504154304 | Plug | 1 |
| 1 | 293710180 | Straight Pipe Fitting | 1 |
| 3 | 219704410 | Polyurethane Hose 10000Mm Long | 3 |
| 1 | 515179201 | Heat Shield | 1 |
| 1 | 250001015 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 504154097 | Fork Ass'y | 1 |
| 6 | 504154096 | Reverse Axle | 6 |
| 1 | 250400045 | Spring Pin M5 X 16 | 1 |
| 1 | 504153532 | Machined Lever | 1 |
| 1 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 1 |
| 1 | 504153657 | Rod Actuating Adjustable Ass'y | 1 |
| 1 | 504153944 | Rod Actuating Ass'y | 1 |
| 1 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207562544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 504153524 | Reverse Lever | 1 |
| 1 | 205564044 | Socket Head Screw M6 X 40, S.GRIP | 1 |
| 9 | 207089044 | Hex. Screw M8 X 90 | 9 |
| 1 | 504153683 | Handle Support | 1 |
| 1 | 504153648 | Spacer | 1 |
| 1 | 504153735 | Bushing | 1 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500b | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 | 9 |
| 1 | 504154428 | Drive Axle Ass'y Includes 3000 to 3000f | 1 |
| 504153880 | Sprocket, 8 Teeth | ||
| 504153881 | Sprocket, 8 Teeth | ||
| 1 | 504154417 | Retaining Ring | 1 |
| 1 | 504152761 | Track Ass'y, 16 X 154 X 1.5CH Includes 3200 to 3200b | 1 |
| 3 | 415129528 | Track Guide | 3 |
| 5 | 504152651 | Cleat | 5 |
