Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

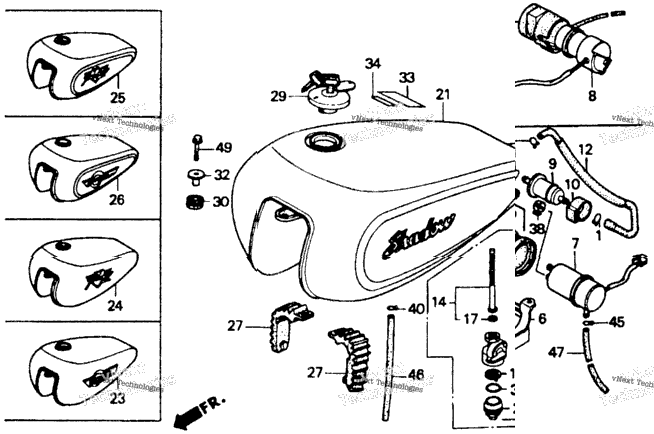

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 15707-634-000 | CLIP, OIL DRAIN | 2 |
| 1 | 16173-001-004 | GASKET, FUEL STRAINER CUP | 1 |
| 1 | 16701-MAA-000 | RUBBER, FUEL PUMP | 1 |
| 16703-MM8-000 | BAND, FUEL PUMP | ||
| 16710-MAA-005 | PUMP, FUEL | ||
| 16710-MAA-842 | PUMP, FUEL | ||
| 16710-MAA-843 | PUMP, FUEL | ||
| 1 | 16900-MG8-003 | FILTER, FUEL | 1 |
| 1 | 16905-MG7-000 | RUBBER, FUEL STRAINER | 1 |
| 1 | 16950-MM8-020 | PETCOCK ASSY. | 1 |
| 16951-MM8-000 | TUBE A, FUEL | ||
| 16952-MAA-000 | TUBE B, FUEL | ||
| 16952-422-015 | SCREEN SET, FUEL STRAINER | ||
| 16952-469-005 | FILTER SET, FUEL | ||
| 16953-MAA-000 | TUBE C, FUEL | ||
| 16954-MAA-000 | TUBE D, FUEL | ||
| 1 | 16195-657-300 | O-RING (10.6X1.3) | 1 |
| 1 | 16958-MA1-731 | O-RING | 1 |
| 16959-HB3-005 | FILTER, CUP | ||
| 1 | 16961-MK7-000 | JOINT, FUEL TUBE | 1 |
| 1 | 16966-MR1-000 | JOINT, FUEL TUBE | 1 |
| 1 | 17515-MG8-000 | TUBE, L. CARBURETOR FUEL | 1 |
| 17520-MAA-670ZA | TANK SET, FUEL (NH1BA) *NH1* (TYPE1) (WL) (BLACK) | ||
| 17520-MAA-670ZB | TANK SET, FUEL (R176KA) (TYPE11) (WL) | ||
| 17520-MAA-670ZD | TANK SET, FUEL (R176BB) (TYPE23) (WL) | ||
| 17520-MAA-670ZE | TANK SET, FUEL (B138BB) (TYPE26) (WL) | ||
| 17520-MAA-670ZK | TANK SET, FUEL (NH1AB) *NH1* (TYPE35) (WL) (BLACK) | ||
| 17520-MAA-670ZL | TANK SET, FUEL (R176AB) (TYPE36) (WL) | ||
| 17520-MAA-670ZM | TANK SET, FUEL (B138AB) (TYPE37) (WL) | ||
| 17520-MAA-670ZN | TANK SET, FUEL (PB255AB) (TYPE40) (WL) | ||
| 17520-MAA-670YA | TANK SET, FUEL (BG101BB) (TYPE51) (WL) | ||
| 17520-MAA-670YB | TANK SET, FUEL (BG101AB) (TYPE52) (WL) | ||
| 17520-MAA-670ZX | TANK SET, FUEL (B142BB) (TYPE49) (WL) | ||
| 17520-MAA-670ZY | TANK SET, FUEL (B142AB) (TYPE50) (WL) | ||
| 17520-MAA-670YC | TANK SET, FUEL (R176BA) (TYPE9) (WL) | ||
| 17520-MAA-670ZC | TANK SET, FUEL (B138BA) (TYPE12) (WL) | ||
| 17520-MAA-670ZF | TANK SET, FUEL (NH1AA) *NH1* (TYPE29) (WL) (BLACK) | ||
| 17520-MAA-670ZG | TANK SET, FUEL (R176AA) (TYPE30) (WL) | ||
| 17520-MAA-670ZH | TANK SET, FUEL (B138AA) (TYPE31) (WL) | ||
| 17520-MAA-670ZJ | TANK SET, FUEL (B138EA) (TYPE34) (WL) | ||
| 17520-MAA-670ZR | TANK SET, FUEL (B142BA) (TYPE43) (WL) | ||
| 17520-MAA-670ZS | TANK SET, FUEL (B142AA) (TYPE44) (WL) | ||
| 17520-MAA-670ZT | TANK SET, FUEL (BG101BA) (TYPE45) (WL) | ||
| 17520-MAA-670ZU | TANK SET, FUEL (BG101AA) (TYPE46) (WL) | ||
| 2 | 17611-MM8-000 | RUBBER, FR. FUEL TANK | 2 |
| 1 | 17613-MM8-000 | RUBBER, RR. FUEL TANK | 1 |
| 1 | 17620-KR3-751 | CAP, FUEL FILLER | 1 |
| 1 | 33157-MJ0-000 | RUBBER, HEADLIGHT BRACKET | 1 |
| 1 | 52486-074-000 | COLLAR, FORK RUBBER BUSH | 1 |
| 1 | 61104-422-000 | COLLAR, SETTING | 1 |
| 87560-MW0-670ZB | LABEL, DRIVE (TYPE2) | ||
| 87586-MR6-670ZA | LABEL, FUEL (TYPEG) | ||
| 2 | 90301-473-003 | NUT, U (6MM) | 2 |
| 1 | 90455-896-700 | WASHER, TANK MOUNTING | 1 |
| 3 | 90682-SA0-671 | CLAMP, CANISTER HOSE | 3 |
| 1 | 95001-55003-60M | BULK HOSE, FUEL (5.5X3000) (5.5X65) | 1 |
| 2 | 95002-02100 | CLIP, TUBE (B10) | 2 |
| 3 | 95002-02120 | CLIP, TUBE (B12) | 3 |
| 1 | 95002-02100 | CLIP, TUBE (B10) | 1 |
| 1 | 95002-41200-08 | CLIP, TUBE (D12) | 1 |
| 1 | 95002-50000 | CLIP, TUBE (C9) | 1 |
| 1 | 95005-50003-30M | BULK HOSE, VACUUM (5X3000) (5X250) | 1 |
| 1 | 95701-08035-07 | BOLT, FLANGE (8X35) | 1 |
| 1 | 96001-06025-07 | BOLT, FLANGE (6X25) | 1 |
| 1 | 16953-GT4-305 | CUP SET, FUEL STRAINER | 1 |
