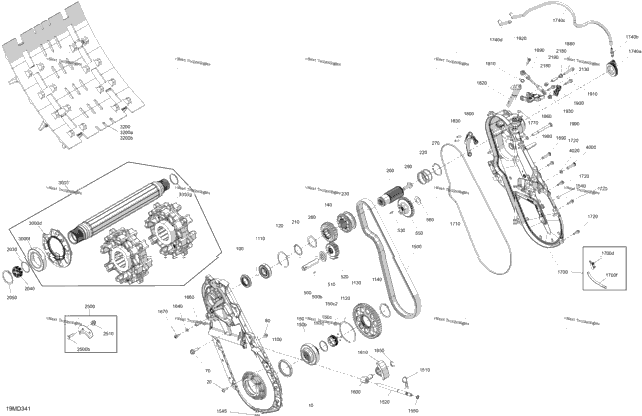

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504154292 | Deep Black, Chain Case Ass'y | 1 |
| 3 | 250001213 | Socket Head Screw M6 X 18 | 3 |
| 1 | 250001016 | Hex Flange Screw M8 X 25 S.Grip | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 293350153 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504154085 | Sprocket 27 Teeth Ass'y | 1 |
| 1 | 504154311 | Adapter Ass'y Includes 150 to 150d | 1 |
| 1 | 293350142 | Ball Bearing | 1 |
| 1 | 504154019 | Magnetic Cap Includes 150c to 150c2 | 1 |
| 1 | 504154043 | Cap | 1 |
| 1 | 293300230 | O-Ring Seal | 1 |
| 1 | 504153500 | Connecting Shaft Ass'y | 1 |
| 1 | 293370129 | Circlip | 1 |
| 1 | 504153179 | Spring Release | 1 |
| 1 | 504153502 | Sliding Gear 27 Teeth Machined | 1 |
| 1 | 504152689 | Washer | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 504153519 | Axle Reverse Ass'y Includes 500 to 500b | 1 |
| 1 | 250400010 | Rolled Pin M3 X 10 | 1 |
| 1 | 504078700 | Ring | 1 |
| 1 | 504154086 | Sprocket 19 Teeth Ass'y | 1 |
| 1 | 570048600 | Alignement Rod | 1 |
| 1 | 504154087 | Gear Straight 29 Teeth Ass'y | 1 |
| 1 | 504077300 | Spacer | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504153995 | Sprocket 45 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 504153266 | Drive Chain, 110 Links | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153760 | Adjustment Screw | 1 |
| 1 | 250500013 | Hex. Countersunk Drain Plug | 1 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 504154577 | Chain Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 250200185 | Copper Washer | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 504153531 | Slide Chain | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 1 |
| 1 | 504154064 | Chain Case Cover Ass'y Includes 1700 to 1700f | 1 |
| 1 | 515179692 | Connector Support | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 1 | 293300214 | O Ring | 1 |
| 8 | 250001153 | Hex. Flange Screw M6X20 | 8 |
| 1 | 504152930 | Cap | 1 |
| 1 | 293710180 | Straight Pipe Fitting | 1 |
| 219704539 | Hose 5.7MM - 630MM | ||
| 1 | 515179201 | Heat Shield | 1 |
| 1 | 503195447 | Protector Tube Not Shown | 1 |
| 1 | 504154097 | Fork Ass'y | 1 |
| 1 | 504154096 | Reverse Axle | 1 |
| 2 | 250400045 | Spring Pin M5 X 16 | 2 |
| 1 | 504153532 | Machined Lever | 1 |
| 1 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 1 |
| 1 | 504153657 | Rod Actuating Adjustable Ass'y | 1 |
| 1 | 504153707 | Rod Actuating Ass'y | 1 |
| 1 | 207562544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 1 | 504082900 | Washer | 1 |
| 1 | 207089044 | Hex. Screw M8 X 90 | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 2 | 504153735 | Bushing | 2 |
| 1 | 504153648 | Spacer | 1 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500b | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504154543 | Drive Axle Ass'y Includes 3000 to 3000g | 1 |
| 1 | 504154417 | Retaining Ring | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504154387 | Track 15 X 137 X 1,5 Includes 3200 to 3200b | 1 |
| 1 | 415130661 | Clip | 1 |
| 1 | 504152651 | Cleat | 1 |
