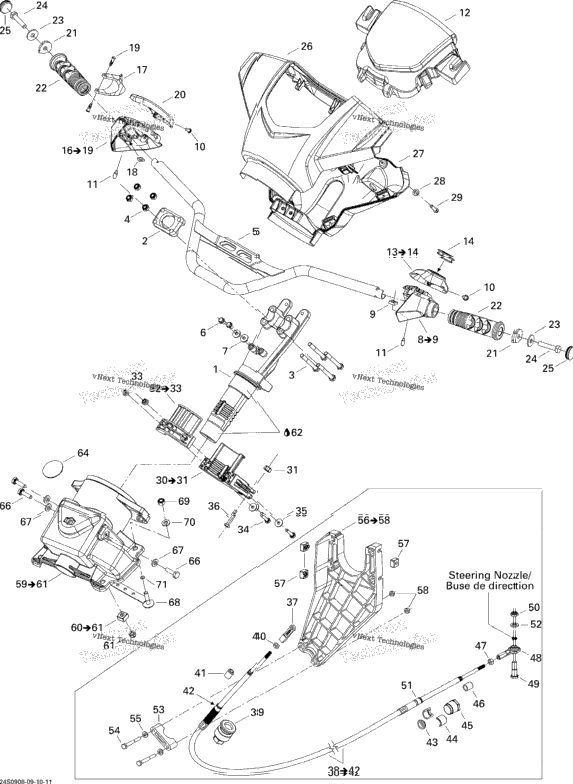

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277001507 | STEERING STEM | 1 |
| 277000142 | STEERING CLAMP | ||
| 207087060 | HEX. SCREW M8 X 70 | ||
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 277001498 | HANDLE BAR | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277001481 | HOUSING ASS'Y Includes 8 to 9 | 1 |
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 2 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 2 |
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 277001542 | HANDLE PAD | ||
| 1 | 277001440 | HOUSING COVER ASS'Y Includes 13 to 14 | 1 |
| 1 | 278001713 | Stop Knob | 1 |
| 1 | 277001483 | THROTTLE HOUSING ASS'Y Includes 16 to 19 | 1 |
| 1 | 277001485 | THROTTLE HANDLE | 1 |
| 2 | 277000381 | PIN | 2 |
| 1 | 277001023 | THROTTLE HOUSING COVER | 1 |
| 2 | 277000554 | Handle Grip Insert | 2 |
| 2 | 277001336 | Handle Grip, Slate Grey | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277001518 | Upper Steering Cover | 1 |
| 1 | 277001519 | LOWER STEERING COVER | 1 |
| 3 | 234051600 | Flat Washer M5, Stainless | 3 |
| 3 | 241141660 | Hex. Flange Screw K40 X 16 | 3 |
| 1 | 277001520 | SUPPORT Includes 30 to 31 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 277001521 | ARM THRUST Includes 32 to 33 | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277001180 | Ball Joint | 1 |
| 1 | 277001580 | Steering Cable Includes 38 to 42 | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001527 | Half Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277001528 | SUPPORT THRUST | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 277001522 | CABLE SUPPORT Includes 56 to 58 | ||
| 3 | 269500252 | M6 Nut Housing Ass'y | 3 |
| 5 | 232561200 | Elastic Stop Nut M6, Brass | 5 |
| 1 | 277001471 | STEERING SUPPORT Includes 59 to 61 | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 60 to 61 | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 293250169 | GASKET | 1 |
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 2 | 277001072 | STEERING SUPPORT | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 293300123 | O-Ring | 2 |
