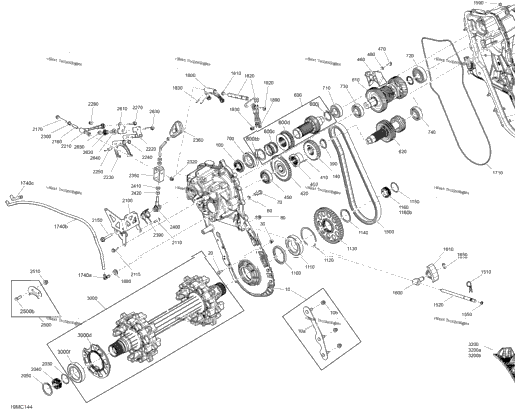

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504154091 | Gearbox Case Ass'y Includes 10 to 10b | 1 |
| 1 | 504154136 | Plate Ass'y | 1 |
| 5 | 233261434 | Flange Elastic Nut M6 | 5 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 504082900 | Washer | 1 |
| 1 | 250000740 | Torx Screw M8 X 20, Scotch Grip | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 504153665 | Sprocket 21 Teeth | 1 |
| 1 | 293370133 | External Snap Ring | 1 |
| 1 | 504153650 | Sleeve Coupling | 1 |
| 1 | 570048600 | Alignement Rod | 1 |
| 1 | 504154003 | Gear Straight 41 Teeth Ass'y | 1 |
| 1 | 293350131 | Ball Bearing | 1 |
| 1 | 504153793 | Oil Deflector | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 234061410 | Flat Washer 6 mm | 2 |
| 1 | 504154341 | Shaft Gearbox In Ass'y Includes 600 to 600j | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 504153690 | Spring Return | 1 |
| 1 | 504153502 | Sliding Gear 27 Teeth Machined | 1 |
| 1 | 293370183 | External Retaining Ring | 1 |
| 1 | 504154126 | Shaft Gearbox Selection Ass'y | 1 |
| 1 | 504154127 | Shaft Gearbox Out Ass'y | 1 |
| 1 | 293350053 | Ball Bearing | 1 |
| 1 | 293350153 | Ball Bearing | 1 |
| 1 | 293350117 | Ball Bearing | 1 |
| 1 | 504153165 | Ball Bearing | 1 |
| 1 | 504154145 | Cap | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504153995 | Sprocket 45 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 1 | 504154019 | Magnetic Cap Includes 1160 to 1160b | 1 |
| 1 | 504154043 | Cap | 1 |
| 1 | 504153679 | Drive Chain 96 Links | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153627 | Adjustment Screw | 1 |
| 1 | 250500013 | Hex. Countersunk Drain Plug | 1 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 267001113 | Nylon Plug | 1 |
| 1 | 504154577 | Chain Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 414036300 | Grommet | 1 |
| 1 | 207588544 | Hex. Flange Screw M8 X 85, Scotch Grip | 1 |
| 1 | 504153937 | Gearbox Cover Ass'y Includes 1700 to 1700f | 1 |
| 1 | 515178223 | Clip Connector | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 1 | 293300197 | O Ring | 1 |
| 8 | 250001153 | Hex. Flange Screw M6X20 | 8 |
| 4 | 250001153 | Hex. Flange Screw M6X20 | 4 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 515179201 | Heat Shield | 1 |
| 1 | 250001015 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 504154097 | Fork Ass'y | 1 |
| 1 | 504154099 | Reverse Axle | 1 |
| 2 | 250400045 | Spring Pin M5 X 16 | 2 |
| 1 | 504153658 | Ball Joint | 1 |
| 1 | 207361644 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 1 | 504153662 | Speed Selector Support | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip | 1 |
| 1 | 504153648 | Spacer | 1 |
| 1 | 207664544 | Hex. Flange Screw M6 X 45 | 1 |
| 1 | 504154245 | Actuating Rod Ass'y | 1 |
| 1 | 504154100 | Axle Fork | 1 |
| 1 | 504154101 | Fork | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 504153735 | Bushing | 2 |
| 1 | 504154271 | Extrusion | 1 |
| 1 | 504154138 | Lever & Rod Ass'y | 1 |
| 1 | 504153984 | Lever Arm Spring | 1 |
| 1 | 504153977 | Ball Joint | 1 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500b | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153980 | Plate | 1 |
| 1 | 707000310 | Spring | 1 |
| 1 | 207664044 | Hex. Flange Screw M6 X 40 | 1 |
| 1 | 504153981 | Sapcer | 1 |
| 1 | 504154435 | Drive Axle Ass'y Includes 3000 to 3000f | 1 |
| 1 | 504154417 | Retaining Ring | 1 |
| 1 | 504154259 | Track 20 X 154 X 1,5 Model With Silent Ice Cobra Track | 1 |
| 1 | 504154260 | Track 20 X 154 X 1,5 Model With Silent Cobra Track | 1 |
| 1 | 415129528 | Track Guide | 1 |
| 1 | 504152651 | Cleat | 1 |
| 1 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 1 |
