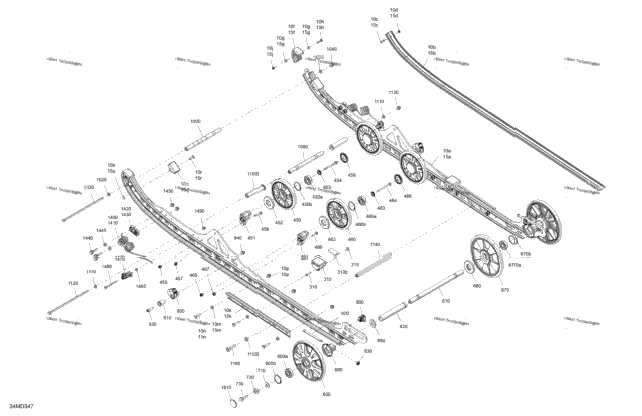

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503197256 | Rail Suspension 154 | 1 |
| 1 | 503191198 | Black, Slider 154 | 1 |
| 1 | 208562531 | Phillips Screw M6 X 25 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 503196874 | Rail Protector | 1 |
| 2 | 250200140 | Washer | 2 |
| 1 | 207652544 | Hex. Flange Screw M5 X 25 | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 1 | 503195826 | Rail Reinforcement | 1 |
| 3 | 503192494 | Washer | 3 |
| 3 | 207183054 | Hex. Cap Screw M8 X 30 | 3 |
| 3 | 233281466 | Elastic Flange Nut M8 | 3 |
| 1 | 503190576 | Rubber Stopper | 1 |
| 1 | 503191273 | Washer | 1 |
| 1 | 293150256 | Rivet Ornit 4.8 X 27.5 | 1 |
| 2 | 503193717 | Rubber Stopper Ass'y Includes 310 to 310b | 2 |
| 1 | 503195523 | Rubber Stopper Ass'y | 1 |
| 2 | 503191273 | Washer | 2 |
| 2 | 293150256 | Rivet Ornit 4.8 X 27.5 | 2 |
| 2 | 503191755 | Black, Wheel Ass'y 152 mm Includes 450 to 450b | 2 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503193894 | Casted Support | 2 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 503191820 | Wheel Cup M6 | 2 |
| 2 | 250000944 | Hex. Flange Screw M6 X 70 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 250000945 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 503192771 | Black, Wheel Cap | 2 |
| 2 | 503191755 | Black, Wheel Ass'y 152 mm Includes 460 to 460b | 2 |
| 2 | 503191741 | Wheel 200, Black Includes 600 to 600b | 2 |
| 1 | 503196754 | Rear Axle | 1 |
| 1 | 503196317 | Spacer | 1 |
| 1 | 503190432 | Washer | 1 |
| 3 | 503196246 | Rear Wheel Support | 3 |
| 1 | 503193098 | Black, Wheel Ass'y 200 mm Includes 670 to 670b | 1 |
| 1 | 503190682 | Labyrinth Seal | 1 |
| 2 | 503191910 | Washer | 2 |
| 2 | 234201474 | Conical Spring Washer 10 mm | 2 |
| 2 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 | 2 |
| 2 | 861805547 | Spring Support Kit | 2 |
| 2 | 503196210 | Bushing | 2 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 2 | 503194266 | Tensioner | 2 |
| 2 | 503194267 | Hex. Cap Screw M8 X 95 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 503196663 | Axle | 1 |
| 2 | 503192494 | Washer | 2 |
| 1 | 503192440 | Bolt M8 X 248mm | 1 |
| 1 | 233281466 | Elastic Flange Nut M8 | 1 |
| 1 | 503195954 | Pivot Axle | 1 |
| 2 | 503195825 | Spacer | 2 |
| 4 | 503192494 | Washer | 4 |
| 1 | 503191260 | Axle Strap | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503194900 | LH Spring | 1 |
| 1 | 503194901 | RH Spring | 1 |
| 1 | 503194294 | LH Support | 1 |
| 1 | 503194295 | RH Support | 1 |
| 4 | 207683054 | Hex. Flange Screw M8 X 30 | 4 |
| 4 | 233281466 | Elastic Flange Nut M8 | 4 |
| 2 | 503196336 | Hook Ass'y | 2 |
| 2 | 207167054 | Hex. Cap Screw M6 X 70 | 2 |
| 2 | 250200039 | Flat Washer | 2 |
