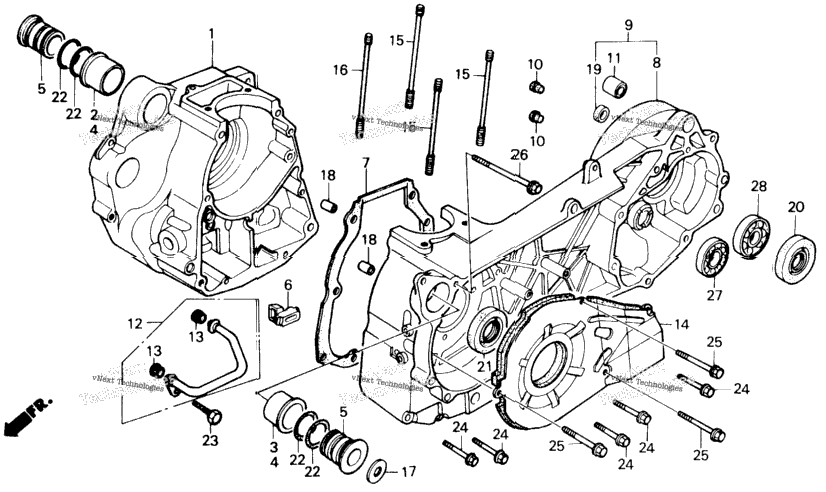

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11100-KM1-010 | CRANKCASE, R. | ||
| 11104-KM1-670 | BUSH, ENGINE HANGER (OUTER) | ||
| 11105-KM1-670 | BUSH, ENGINE HANGER (INNER) | ||
| 11121-KM1-000 | RUBBER, OIL FENCE Use from Engine SN 5015138 | ||
| 11191-KM1-000 | GASKET, R. CRANKCASE Use up to Engine SN 5015137 | ||
| 11191-KM1-010 | GASKET, R. CRANKCASE | ||
| 11191-KM1-306 | GASKET, R. CRANKCASE | ||
| 11191-KS4-690 | GASKET, R. CRANKCASE | ||
| 11200-KM1-010 | CRANKCASE, L. | ||
| 11200-KM1-020 | CRANKCASE, L. | ||
| 11200-KM1-030 | CRANKCASE | ||
| 11200-KM1-040 | CRANKCASE | ||
| 11202-GC7-300 | RUBBER, SPRING GUIDE | ||
| 1 | 11203-GC7-300 | BUSH, RR. CUSHION RUBBER (LOWER) | 1 |
| 1 | 15520-KM1-000 | PIPE B, OIL | 1 |
| 2 | 15525-KM1-000 | SEAL, RUBBER | 2 |
| 19600-KM1-670 | INSULATOR, HEAT | ||
| 19600-KM1-671 | INSULATOR, HEAT | ||
| 3 | 90031-KM1-000 | BOLT A, STUD (8MM) | 3 |
| 3 | 90031-KM1-010 | BOLT A, STUD (8MM) | 3 |
| 90032-KM1-000 | BOLT B, STUD (8MM) | ||
| 90032-KM1-010 | BOLT B, STUD (8MM) | ||
| 90701-KM1-000 | PIN, DOWEL (10X8X15) | ||
| 1 | 91253-KM1-000 | OIL SEAL (34X52X5) | 1 |
| 1 | 91253-KM1-003 | OIL SEAL (34X52X5) (NOK) | 1 |
| 1 | 91253-KM1-005 | OIL SEAL (34X52X5) (ARAI) | 1 |
| 1 | 91261-KM1-003 | OIL SEAL (27.9X40X8) (ARAI) | 1 |
| 1 | 91261-KM1-005 | OIL SEAL (28X40X8) (NOK) | 1 |
| 4 | 91354-671-004 | O-RING (14.8X2.4) | 4 |
| 1 | 92000-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92000-06012-0A | BOLT, HEX. (6X12) | 1 |
| 1 | 92100-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012 | BOLT, HEX. (6X12) | 1 |
| 1 | 92101-06012-0A | BOLT, HEX. (6X12) | 1 |
| 5 | 96000-06060-00 | BOLT, FLANGE (6X60) | 5 |
| 5 | 96001-06060-00 | BOLT, FLANGE (6X60) | 5 |
| 3 | 96000-06070-00 | BOLT, FLANGE (6X70) | 3 |
| 3 | 96001-06070-00 | BOLT, FLANGE (6X70) | 3 |
| 96000-06125-00 | BOLT, FLANGE (6X125) | ||
| 96001-06125-00 | BOLT, FLANGE (6X125) | ||
| 1 | 91003-KM1-000 | BEARING, RADIAL BALL (6301) Use from Engine SN 5008558 to 5017671 | 1 |
| 1 | 91003-KM1-003 | BEARING, RADIAL BALL (6301) (TMB) Use from Engine SN 5008558 | 1 |
| 1 | 91003-KS4-000 | BEARING, RADIAL BALL (6301) Use from Engine SN 5008558 | 1 |
| 1 | 91003-KS4-003 | BEARING, RADIAL BALL (6301) (NTN CORP.) Use from Engine SN 5008558 | 1 |
| 1 | 96100-63010-00 | BEARING, RADIAL BALL (6301) Use up to Engine SN 5008557 | 1 |
| 96150-62053-10 | BEARING, RADIAL BALL (6205UU) |
