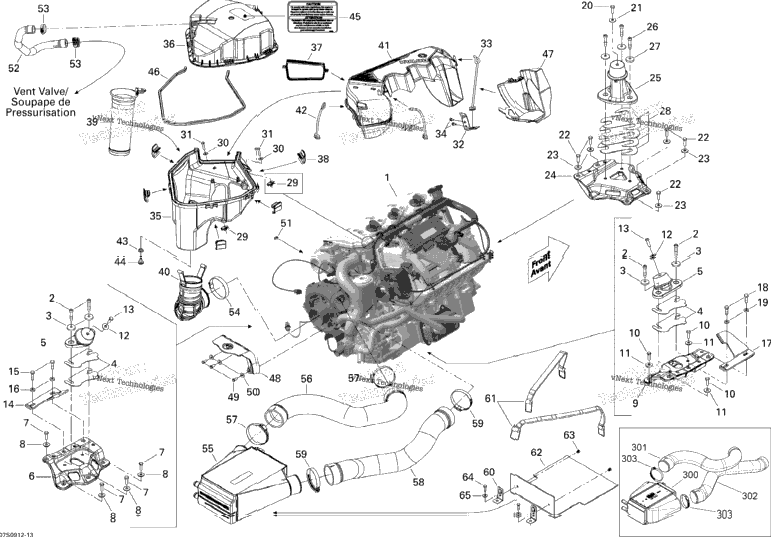

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420150365 | Engine Long Block, 1503 HO ETC | 1 |
| 1 | 421000657 | REBUILT - BASIC LONG BLOCK 1503IC | 1 |
| 1 | 421000707 | REBUILT - LONG BLOCK 1503HO | 1 |
| 4 | 250000334 | Socket Head Screw M8 X 40, Scotch Grip | 4 |
| 4 | 250200018 | Cone Washer | 4 |
| 4 | 270000762 | Shim 1.3 mm | 4 |
| 2 | 270000688 | Rubber Mount | 2 |
| 270000763 | SPACER | ||
| 4 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 1 | 270000766 | Spacer | 1 |
| 3 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 3 |
| 3 | 234082600 | Flat Washer 8 mm, Stainless | 3 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 2 |
| 1 | 270000796 | LH STOPPER | 1 |
| 2 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 2 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 270000799 | RH Stopper | ||
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 5 |
| 5 | 234082600 | Flat Washer 8 mm, Stainless | 5 |
| 270000767 | SPACER | ||
| 1 | 270000738 | Rubber Mount | 1 |
| 3 | 250000334 | Socket Head Screw M8 X 40, Scotch Grip | 3 |
| 3 | 250200018 | Cone Washer | 3 |
| 4 | 270000770 | Shim 1.3 mm | 4 |
| 2 | 420942108 | Panel Nut M6 X 1 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 1 | 273000260 | AIR BOX BRACKET | 1 |
| 1 | 273000261 | Strap | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 1 | 273000250 | AIR SILENCER LOW | 1 |
| 1 | 273000249 | Air Silencer Upper | 1 |
| 1 | 293250190 | Seal | 1 |
| 5 | 269501718 | Clip | 5 |
| 1 | 273000252 | Intake Hose | 1 |
| 1 | 273000251 | CONNECTOR HOSE | 1 |
| 1 | 273000253 | INTAKE TUBE | 1 |
| 2 | 269501299 | Strap | 2 |
| 293720064 | GROMMET | ||
| 1 | 275500454 | CHECK VALVE | 1 |
| 219902673 | Caution Decal, Air Silencer | ||
| 1 | 293200123 | NEOPRENE SEAL | 1 |
| 1 | 273000271 | DEFLECTOR | 1 |
| 1 | 270000735 | AIR BOX SUPPORT | 1 |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 270000761 | Formed Hose | 1 |
| 2 | 293650051 | Tridon Gear Clamp | 2 |
| 1 | 293650179 | Tridon Clamp | 1 |
| 276000179 | Intercooler | ||
| 1 | 273000254 | Inlet Hose Cooler | 1 |
| 2 | 293650107 | Tridon Clamp | 2 |
| 1 | 273000255 | Outlet Hose Cooler | 1 |
| 2 | 275500743 | STRAP CLIP 90 | 2 |
| 2 | 293850067 | Strap | 2 |
| 1 | 293830138 | Rubber Pad | 1 |
| 2 | 293730016 | Dart, Black | 2 |
| 2 | 243162060 | Hex. Flange Screw M6.81 x 20 | 2 |
| 1 | 276000397 | Intercooler Ref Service Bulletin 2015-7. Zinc Anode: 271001942 | 1 |
| 1 | 273000361 | Formed Hose Ref Service Bulletin 2015-7 | 1 |
| 1 | 273000362 | Formed Hose Ref Service Bulletin 2015-7 | 1 |
| 2 | 293650244 | Tridon Gear Clamp Ref Service Bulletin 2015-7 | 2 |
