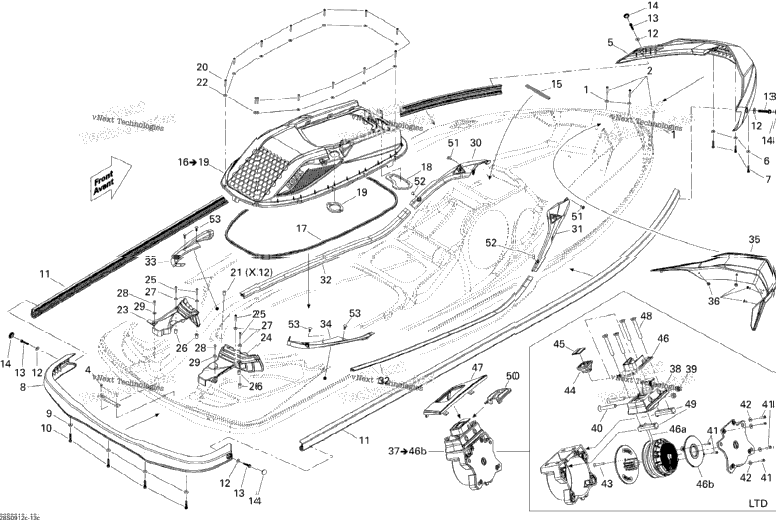

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 2 | 211000106 | Hex. Forming Screw M6 X 16 | 2 |
| 1 | 291002588 | Front Bumber | 1 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 3 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 3 |
| 1 | 291002592 | Rear Bumber | 1 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 4 |
| 291002593 | Lateral Bumber | ||
| 4 | 291002744 | Bumber Cap | 4 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 1 | 291002763 | Deck Extension Ass'y Includes 16 to 19 | 1 |
| 1 | 293250185 | Lip Seal | 1 |
| 1 | 293250205 | LIP SEAL | 1 |
| 1 | 293250209 | LIP SEAL | 1 |
| 12 | 205463560 | Socket Head Screw M6 X 35 | 12 |
| 12 | 250100083 | Expansion Nut M6 X 1 | 12 |
| 12 | 234062600 | Flat Washer M6, Stainless | 12 |
| 1 | 291002658 | LH Rear Grille | 1 |
| 1 | 291002698 | RH Rear Grille | 1 |
| 4 | 205463560 | Socket Head Screw M6 X 35 | 4 |
| 4 | 250100083 | Expansion Nut M6 X 1 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 291002837 | LH Front Scraper Joint | 1 |
| 1 | 291002838 | RH FRONT SCRAPER JOINT | 1 |
| 291002839 | MIDLE SRAPER JOINT | ||
| 1 | 291002696 | LH REAR SCRAPER JOINT | 1 |
| 1 | 291002697 | RH REAR SCRAPER JOINT | 1 |
| 1 | 291002743 | Body Deflector | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 291002628 | Retractable Rope Ass'y Includes 37 to 46b | 1 |
| 1 | 291002718 | JAM CLEAT LOCK | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 205364060 | Socket Head Screw M6 X 40 | 2 |
| 6 | 241731260 | Oval Philipp Screw KA30 x 12 | 6 |
| 4 | 234032600 | Flat Washer M3, Stainless | 4 |
| 1 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 1 |
| 1 | 291002726 | BUTTON | 1 |
| 1 | 291002754 | Button Cap | 1 |
| 1 | 291002729 | ROPE GUIDE | 1 |
| 1 | 219704363 | ROPE 3/16 3000MM LONG | 1 |
| 291002762 | INSIDE COVER | ||
| 1 | 291002724 | FRONT REWINDER COVER | 1 |
| 4 | 205364560 | SOCKET SCREW HEAD M6 X 45 | 4 |
| 2 | 291002755 | DOUBLE CAGE NUT ASS'Y | 2 |
| 1 | 291002727 | UNDER CAM | 1 |
| 2 | 293150123 | Pop Rivet 3/16" | 2 |
| 2 | 293730010 | Black Dart | 2 |
| 4 | 293730006 | Black, Dart | 4 |
