Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

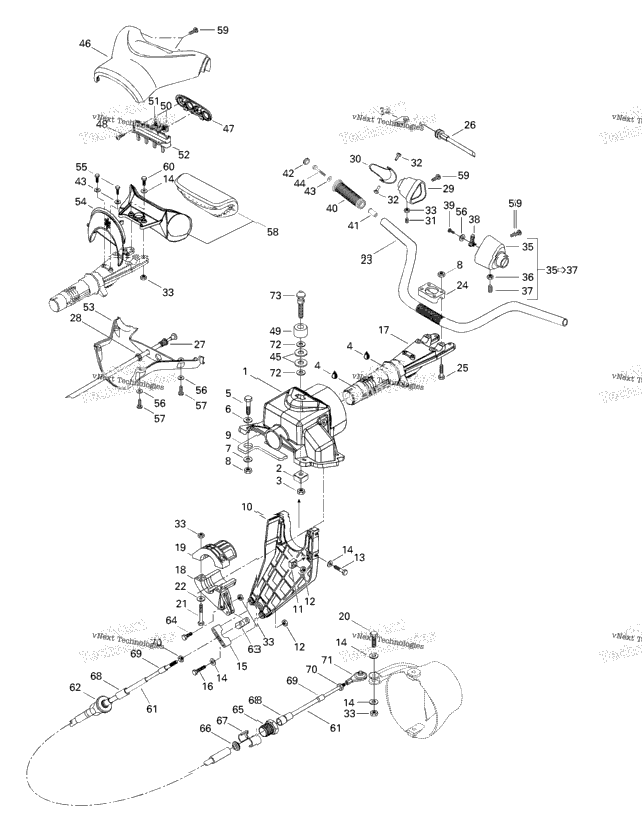

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277000515 | Steering Support Includes 1 - 3. | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 2 - 3. | ||
| 1 | 212000003 | Elastic Stop Nut M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 4 | 210100013 | Hex. Screw M8 x 35 | 4 |
| 4 | 213200002 | Flat Washer 8 mm | 4 |
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 8 | 212000002 | Elastic Stop Nut M8 | 8 |
| 1 | 293250068 | Gasket | 1 |
| 277000516 | CABLE SUPPORT Includes 10 - 12. | ||
| 3 | 269500108 | Nut Housing | 3 |
| 5 | 212000001 | Elastic Stop Nut M6 | 5 |
| 3 | 210000004 | Hex. Screw M6 x 20 | 3 |
| 9 | 213200001 | Flat Washer 6 mm | 9 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 215665060 | Hex. Screw M6 x 50 | 2 |
| 277000562400 | Steering Stem | ||
| 277000518 | Steering Stem Arm | ||
| 277000519 | Arm Thrust | ||
| 1 | 215664060 | Hex. Screw M6 x 40 | 1 |
| 2 | 210000005 | Hex. Screw M6 x 25 | 2 |
| 2 | 213200007 | Washer 6 mm | 2 |
| 277000305 | Handle bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 215685060 | Hex. Screw M8 x 50 | 4 |
| 277000595 | Throttle Cable | ||
| 270000236 | Choke Cable(Incl. 57) Includes 27 - 28. | ||
| 211100030 | NUT-HEXAGONAL HI-LEX | ||
| 277000285 | Throttle Handle Housing | ||
| 277000214 | Throttle Handle | ||
| 211000039 | Set Screw M6 x 12 | ||
| 2 | 277000381 | PIN | 2 |
| 7 | 212000001 | Elastic Stop Nut M6 | 7 |
| 1 | 277000279 | TAB LOCK | 1 |
| 277000036 | LH HANDLE HOUSING ASS'Y Includes 35 - 37. | ||
| 277000379 | LH HANDLE HOUSING | ||
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 277000219 | Retainer Plate | ||
| 1 | 211000032 | Tapping Screw | 1 |
| 1 | 295500110 | Handle Grip Kit (Black) Includes 40 - 44. | 1 |
| XXXX | Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 4 | 213200007 | Washer 6 mm | 4 |
| 2 | 211000031 | Hex. Screw M6 x 45 | 2 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 277000603 | Upper Steering Cover (Green) | ||
| 1 | 277000688 | RETAINER PLATE | 1 |
| 3 | 211000028 | Screw K40 x 10 | 3 |
| 293830025 | Rubber Pad | ||
| 293000058 | <<Mode>> Knob | ||
| 293000054 | <<Set>> Knob | ||
| 277000563 | Switch Support | ||
| 277000550 | Lower Steering Cover (Green) | ||
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 6 | 213200004 | Flat Washer 5 mm | 6 |
| 4 | 211000033 | Screw K40 x 16 | 4 |
| 277000671 | Pad-Handle (Green) | ||
| 4 | 211100004 | Tapping Screw | 4 |
| 2 | 210000006 | Hex. Screw M6 x 30 | 2 |
| 277000526 | STEERING CABLE Includes 61 - 62. | ||
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 277000646 | Joint | ||
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000052 | Cable Lock | 1 |
| 211100009 | RUBBER WASHER | ||
| 2 | 277000055 | Half Ring | 2 |
| 277000473 | Boot, Large | ||
| 277000466 | Boot, Small | ||
| 1 | 212100005 | Hex. Nut | 1 |
| 1 | 277000153 | BALL JOINT | 1 |
| 2 | 217002600 | Flat Washer | 2 |
| 291000987 | Stud Latch | ||
| 293450152 | Nylon Insert |
