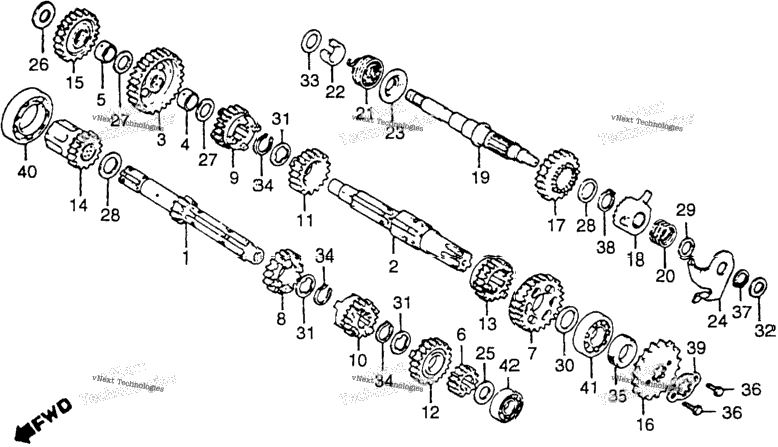

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 23211-383-000 | MAINSHAFT, TRANSMISSION (13T) | ||
| 23211-383-003 | MAINSHAFT, TRANSMISSION (13T) | ||
| 23221-441-000 | COUNTERSHAFT, TRANSMISSION | ||
| 1 | 23426-KCS-650 | GEAR, COUNTERSHAFT LOW (36T) | 1 |
| 1 | 23426-439-320 | GEAR, COUNTERSHAFT LOW (36T) | 1 |
| 1 | 23427-439-000 | COLLAR, COUNTERSHAFT LOW GEAR | 1 |
| 23431-439-000 | BUSHING | ||
| 23441-439-000 | GEAR, MAINSHAFT SECOND (17T) | ||
| 23451-439-900 | GEAR, COUNTERSHAFT SECOND (32T) | ||
| 1 | 23461-439-000 | GEAR, MAINSHAFT THIRD (20T) | 1 |
| 23471-439-000 | GEAR, COUNTERSHAFT THIRD (28T) | ||
| 23481-439-000 | GEAR, MAINSHAFT FOURTH (23T) | ||
| 23491-KN6-930 | GEAR, COUNTERSHAFT FOURTH (26T) | ||
| 23491-439-000 | GEAR, COUNTERSHAFT FOURTH (26T) | ||
| 23501-KN6-930 | GEAR, MAINSHAFT FIFTH (25T) | ||
| 23501-439-000 | GEAR, MAINSHAFT FIFTH (25T) | ||
| 23511-439-010 | GEAR, COUNTERSHAFT FIFTH (24T) | ||
| 23520-383-000 | GEAR, STARTER (19T) | ||
| 23531-439-000 | GEAR ONLY, IDLE STARTER (29T) | ||
| 1 | 23801-KF9-900 | SPROCKET, DRIVE (14T) | 1 |
| 1 | 23801-437-000 | SPROCKET, DRIVE (14T) | 1 |
| 28211-397-010 | PINION, KICK STARTER (29T) | ||
| 28221-397-020 | RATCHET, KICK STARTER | ||
| 28251-397-010 | SPINDLE, KICK STARTER | ||
| 1 | 28253-KA2-000 | SPRING, KICK STARTER RATCHET | 1 |
| 28261-397-000 | SPRING, KICK STARTER | ||
| 28262-397-000 | COLLAR, KICK SPINDLE | ||
| 28263-397-000 | RETAINER, STARTER SPRING | ||
| 28270-397-020 | PLATE, RATCHET GUIDE | ||
| 1 | 90451-107-000 | WASHER, THRUST (15MM) | 1 |
| 1 | 90451-365-000 | WASHER, THRUST (15MM) | 1 |
| 90452-107-000 | WASHER, THRUST (16.5MM) | ||
| 2 | 90453-107-000 | WASHER A, THRUST (20MM) | 2 |
| 1 | 90453-235-000 | WASHER, THRUST (16MM) | 1 |
| 1 | 90454-107-000 | WASHER, THRUST (20MM) | 1 |
| 3 | 90455-107-000 | WASHER A, SPLINE (20MM) | 3 |
| 1 | 90459-107-000 | WASHER, THRUST (12MM) | 1 |
| 1 | 90462-107-000 | WASHER, THRUST (16MM) | 1 |
| 3 | 90605-200-000 | SET-RING (20MM) | 3 |
| 1 | 91201-030-023 | OIL SEAL (20X34X7) | 1 |
| 1 | 91201-030-025 | OIL SEAL (20X34X7) (NOK) | 1 |
| 1 | 91201-030-033 | OIL SEAL (20X34X7) (ARAI) | 1 |
| 2 | 92000-06010 | BOLT, HEX. (6X10) | 2 |
| 2 | 92101-06010-0A | BOLT, HEX. (6X10) | 2 |
| 1 | 94510-16000 | CIRCLIP, OUTER (16MM) | 1 |
| 1 | 94510-20000 | CIRCLIP, OUTER (20MM) | 1 |
| 1 | 95014-92100 | PLATE B, FIXING | 1 |
| 1 | 96100-60060-00 | BEARING, RADIAL BALL (6006) | 1 |
| 1 | 96100-62040-00 | BEARING, RADIAL BALL (6204) | 1 |
| 1 | 96120-62020-00 | BEARING, RADIAL BALL (6202Z) | 1 |
