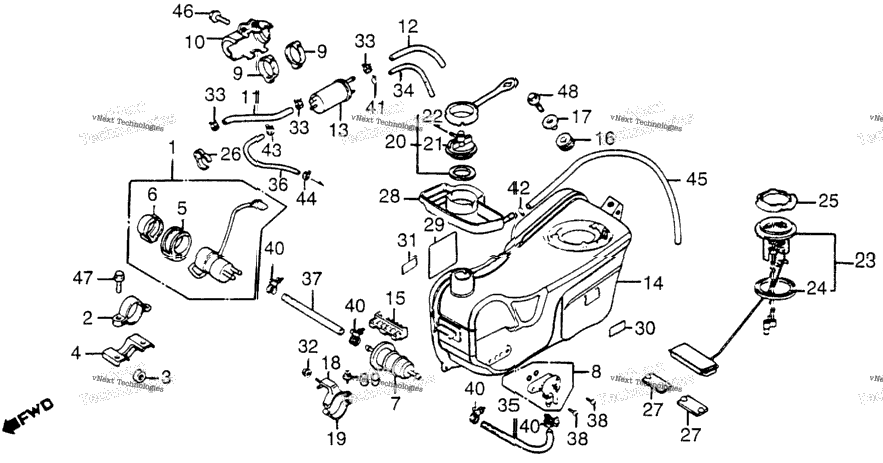

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16700-MG9-770 | PUMP ASSY., FUEL | 1 |
| 1 | 16700-MG9-771 | PUMP ASSY., FUEL | 1 |
| 16705-MG9-000 | BAND, FUEL PUMP | ||
| 16706-MG9-000 | COLLAR, PUMP SETTING | ||
| 16708-MG9-000 | STAY, FUEL PUMP | ||
| 16720-MG9-000 | RUBBER, FUEL PUMP | ||
| 1 | 16900-371-004 | FILTER, FUEL | 1 |
| 16950-MG9-005 | PETCOCK ASSY. | ||
| 2 | 17303-MG9-640 | BAND, CANISTER SETTING | 2 |
| 2 | 17310-GE1-871 | EVAPORATIVE EMISSION CANISTER ASSY. | 2 |
| 17305-MG9-640 | COVER, CANISTER | ||
| 17307-MG9-640 | TUBE, PURGE CONTROL VALVE | ||
| 17309-MG9-640 | TUBE, BREATHER | ||
| 17309-ML8-790 | TUBE, AIR BREATHER | ||
| 1 | 17303-MG9-640 | BAND, CANISTER SETTING | 1 |
| 1 | 17310-GE1-871 | EVAPORATIVE EMISSION CANISTER ASSY. | 1 |
| 1 | 17310-MG9-641 | CANISTER ASSY. | 1 |
| 17510-MG9-010 | TANK, FUEL | ||
| 17510-ML8-000 | TANK, FUEL | ||
| 17615-MG9-000 | RUBBER B, FUEL TANK SETTING | ||
| 17616-371-000 | RUBBER C, FUEL TANK SETTING | ||
| 17618-371-000 | COLLAR, TANK SET (FUEL) | ||
| 17626-MG9-000 | STAY A, STRAINER | ||
| 17628-371-000 | STAY B, STRAINER | ||
| 17660-MG9-640 | CAP ASSY., FUEL FILLER | ||
| 17670-MG9-641 | CAP, FUEL FILLER | ||
| 17670-MN5-741 | CAP, FUEL FILLER | ||
| 17671-463-000 | RING, FUEL FILLER CAP | ||
| 37800-MG9-771 | METER UNIT, FUEL | ||
| 1 | 37801-689-000 | GASKET, BASE | 1 |
| 37802-371-000 | RETAINER, FUEL UNIT | ||
| 61108-MB0-000 | CLAMP, SPEEDOMETER SENSOR WIRE | ||
| 2 | 77204-312-000 | RUBBER, SEAT SETTING | 2 |
| 83502-MG9-000 | BOX, FUEL TANK | ||
| 87135-MG9-640 | DIAGRAM, VACUUM HOSE ROUTING | ||
| 87506-463-740 | MARK, BATTERY CAUTION | ||
| 87518-MG9-770 | LABEL, RR. RUBBER CAUTION | ||
| 1 | 90117-371-003 | NUT, FLANGE (5MM) | 1 |
| 1 | 94050-05000 | NUT, FLANGE (5MM) | 1 |
| 3 | 90682-SA0-671 | CLAMP, CANISTER HOSE | 3 |
| 91454-MG9-640 | TUBE, CANISTER DRAIN | ||
| 91455-MG9-000 | HOSE, FUEL (5.5X170) | ||
| 91455-MG9-640 | HOSE, FUEL (4.5X400) | ||
| 91456-MG9-000 | HOSE, FUEL (5.5X110) | ||
| 2 | 93500-06012 | SCREW, PAN (6X12) | 2 |
| 2 | 93500-06012-0A | SCREW, PAN (6X12) | 2 |
| 2 | 93500-06012-00 | SCREW, PAN (6X12) | 2 |
| 1 | 93893-05012-00 | SCREW-WASHER (5X12) | 1 |
| 4 | 95002-01120 | CLIP, TUBE (A12) | 4 |
| 1 | 95002-02080 | CLIP, TUBE (B8) | 1 |
| 1 | 95002-02120 | CLIP, TUBE (B12) | 1 |
| 1 | 95002-40850-08 | CLAMP, TUBE (D8.5) | 1 |
| 1 | 95002-50000 | CLIP, TUBE (C9) | 1 |
| 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (8X12X670) | ||
| 2 | 95700-06010-00 | BOLT, FLANGE (6X10) | 2 |
| 2 | 95701-06010-00 | BOLT, FLANGE (6X10) | 2 |
| 2 | 95700-06020-00 | BOLT, FLANGE (6X20) | 2 |
| 2 | 95701-06020-00 | BOLT, FLANGE (6X20) | 2 |
| 1 | 95700-08028-08 | BOLT, FLANGE (8X28) | 1 |
| 1 | 95701-08028-08 | BOLT, FLANGE (8X28) | 1 |
