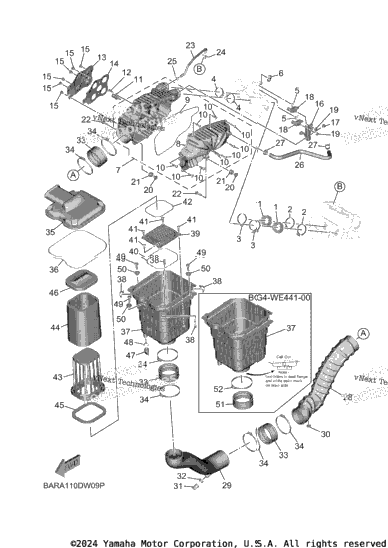

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | BG4-13586-00-00 | Joint, Carburetor 1 | 2 |
| 2 | 90450-56011-00 | Hose Clamp Assy | 2 |
| 2 | 90450-56013-00 | Hose Clamp Assy | 2 |
| 2 | 90450-50005-00 | Hose Clamp Assy | 2 |
| 2 | 90467-10041-00 | Clip | 2 |
| 1 | 90464-09M31-00 | Clamp | 1 |
| 1 | BG4-E4440-00-00 | Silencer Assy, Intake | 1 |
| 1 | BG4-E4431-00-00 | . .Silencer, Intake 1 | 1 |
| 1 | BG4-E4467-00-00 | . .Seal | 1 |
| 9 | 97702-50025-00 | . Screw, Tapping | 9 |
| 1 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 |
| 1 | 97702-50520-00 | Screw, Tapping | 1 |
| 1 | BG4-E4477-00-00 | Plate | 1 |
| 1 | BG4-E4409-00-00 | Damper | 1 |
| 6 | 98902-06008-00 | Screw, Bind | 6 |
| 1 | BG4-E4493-00-00 | Stay 1 | 1 |
| 1 | 95812-06008-00 | Bolt, Flange | 1 |
| 2 | BG4-86120-00-00 | Solenoid Valve Assy | 2 |
| 2 | 95702-06500-00 | Nut, Flange | 2 |
| 2 | 90387-06199-00 | Collar | 2 |
| 2 | 90480-12596-00 | Grommet | 2 |
| 95822-06025-00 | Bolt, Flange | ||
| 1 | BG4-11166-00-00 | Pipe, Breather 1 | 1 |
| 1 | 90467-10041-00 | Clip | 1 |
| 1 | 90467-12052-00 | Clip | 1 |
| 1 | BG4-F1745-00-00 | Pipe, Oil Tank Breather | 1 |
| 2 | 90467-22097-00 | Clip | 2 |
| 1 | BG4-E4437-01-00 | Duct | 1 |
| 1 | BG4-E443A-03-00 | Duct | 1 |
| 1 | 90480-13567-00 | Grommet | 1 |
| 1 | 59V-14457-00-00 | Seal | 1 |
| 1 | 90467-220A0-00 | Clip | 1 |
| 3 | BG4-E4476-10-00 | Seal USE WITH CASE THAT DOES NOT HAVE CALL OUT NOTE | 3 |
| 6 | 90450-99806-00 | Hose Clamp Assy USE WITH CASE THAT DOES NOT HAVE CALL OUT NOTE | 6 |
| 1 | BG4-E4412-00-00 | Cap, Cleaner Case 1 | 1 |
| 1 | BG4-E4452-00-00 | Seal | 1 |
| 1 | BG4-WE441-00-00 | Air Cleaner Case Complete USE IF REPLACING CASE THAT DOES NOT HAVE CALL OUT | 1 |
| 1 | BG4-E4411-10-00 | Case, Air Cleaner 1 INCL. IN BG4-WE441-00-00, SEE CALL OUT TO IDENTIFY | 1 |
| 4 | B16-E4424-00-00 | Clip, Cap Fitting | 4 |
| 1 | BG4-E4461-00-00 | Element, Air Cleaner 2 | 1 |
| 1 | BG4-E4462-00-00 | Seal | 1 |
| 4 | 97702-50020-00 | Screw, Tapping | 4 |
| 1 | BG4-E4457-00-00 | Seal | 1 |
| 1 | BG4-E4458-00-00 | Guide | 1 |
| 1 | BG4-E4451-00-00 | Element, Air Cleaner | 1 |
| 1 | BG4-E4425-00-00 | Damper 1 | 1 |
| 1 | BG4-E4422-00-00 | Cap, Cleaner Case 2 | 1 |
| 1 | B16-E443E-00-00 | Pipe, Drain | 1 |
| 1 | 90467-220A1-00 | Clip | 1 |
| 3 | 90105-06833-00 | Bolt, Flange | 3 |
| 3 | 90387-071E0-00 | Collar | 3 |
| 1 | B4J-14239-00-00 | Seal INCL. IN BG4-WE441-00-00, USE WITH BG4-E4411-10-00 | 1 |
| 1 | 90450-99018-00 | Hose Clamp Assy INCL. IN BG4-WE441-00-00, USE WITH BG4-E4411-10-00 | 1 |
