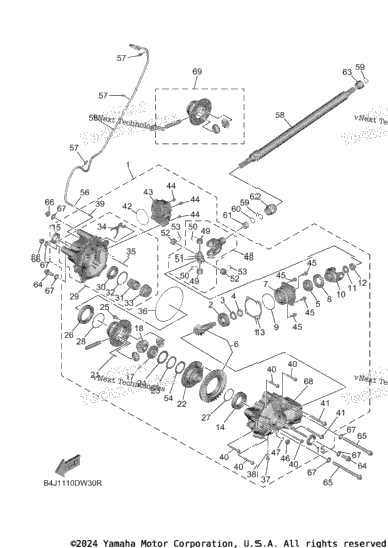

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | B4J-46160-00-00 | Front Axle Gear Case Comp | 1 |
| 1 | 93332-00046-00 | . .Bearing | 1 |
| 1 | 90201-25634-00 | . .Washer, Plate | 1 |
| 1 | 3B4-46129-00-00 | . .Spacer, Expansion | 1 |
| 1 | 93332-00053-00 | . .Bearing | 1 |
| B4J-45550-00-00 | . .Gear Set | ||
| 1 | B4M-46144-00-00 | . .Housing, Pinion Bearing | 1 |
| 1 | 93102-35380-00 | . .Oil Seal | 1 |
| 1 | 93210-626A7-00 | . .O-Ring | 1 |
| 1 | BG4-46146-00-00 | . .Yoke, Joint 2 | 1 |
| 1 | 90201-165H4-00 | . .Washer, Plate | 1 |
| 1 | 90179-16004-00 | . Nut | 1 |
| 1 | 2HR-46127-00-25 | . .Shim, Drive Piston (0.25T) UR | 1 |
| 1 | 2HR-46127-00-30 | . .Shim, Drive Piston (0.30T) UR | 1 |
| 1 | 2HR-46127-00-35 | . .Shim, Drive Piston (0.35T) UR | 1 |
| 1 | 2HR-46127-00-40 | . .Shim, Drive Piston (0.40T) UR | 1 |
| 1 | 2HR-46127-00-45 | . .Shim, Drive Piston (0.45T) UR | 1 |
| 1 | 2HR-46127-00-50 | . .Shim, Drive Piston (0.50T) UR | 1 |
| 1 | 93306-01006-00 | . .Bearing | 1 |
| 2 | 93102-30017-00 | . .Oil Seal | 2 |
| 1 | B4J-46412-00-00 | . .Case, Differential 2 | 1 |
| 1 | BG4-48232-00-00 | . .Gear (14T) | 1 |
| 1 | BG4-48233-00-00 | . .Gear 2 (14T) | 1 |
| 2 | B4J-46415-00-00 | . .Pinion, Differential | 2 |
| 1 | B4J-46417-00-00 | . .Pin, Differential | 1 |
| 1 | 91609-40025-00 | . .Pin, Spring | 1 |
| 1 | BG4-46411-00-00 | . .Case, Differential | 1 |
| 1 | BG4-42524-00-00 | . .Spring | 1 |
| 1 | BG4-42525-00-00 | . .Plate, Friction | 1 |
| 10 | 90105-10468-00 | . .Bolt, Flange | 10 |
| 1 | 93306-91301-00 | . .Bearing | 1 |
| 1 | BG4-46344-00-00 | . .Shim (0.25T) UR | 1 |
| 1 | BG4-46344-10-00 | . .Shim (0.30T) UR | 1 |
| 1 | BG4-46344-20-00 | . .Shim (0.35T) UR | 1 |
| 1 | BG4-46344-30-00 | . .Shim (0.40T) UR | 1 |
| 1 | BG4-46344-40-00 | . .Shim (0.45T) UR | 1 |
| 1 | BG4-46344-50-00 | . .Shim (0.50T) UR | 1 |
| 1 | BG4-46117-00-00 | . .Shim, Ring Gear (0.25T) UR | 1 |
| 1 | BG4-46117-10-00 | . .Shim, Ring Gear (0.30T) UR | 1 |
| 1 | BG4-46117-20-00 | . .Shim, Ring Gear (0.35T) UR | 1 |
| 1 | BG4-46117-30-00 | . .Shim, Ring Gear (0.40T) UR | 1 |
| 1 | BG4-46117-40-00 | . .Shim, Ring Gear (0.45T) UR | 1 |
| 1 | BG4-46117-50-00 | . .Shim, Ring Gear (0.50T) UR | 1 |
| 1 | BG4-46150-00-00 | . .Drive Shaft Housing Comp | 1 |
| 1 | 93316-00702-00 | . . ..Bearing | 1 |
| 1 | BG4-46451-00-00 | . . ..Adapter | 1 |
| 1 | 99009-62500-00 | . . Circlip | 1 |
| 1 | BG4-45816-00-00 | . . ..Clutch, Dog | 1 |
| 1 | BG4-45682-00-00 | . . ..Fork, Shift 2 | 1 |
| 1 | BG4-45692-00-00 | . . ..Shaft, Shift | 1 |
| 1 | 93211-63688-00 | . .O-Ring | 1 |
| 1 | 90340-12007-00 | . .Plug, Straight Screw | 1 |
| 1 | 90430-12219-00 | . .Gasket | 1 |
| 137-13115-01-00 | . .Connector, Suction Pipe | ||
| 5 | 95812-08050-00 | . Bolt, Flange | 5 |
| 2 | 95812-10090-00 | . .Bolt, Flange | 2 |
| 1 | 93210-72300-00 | . .O-Ring | 1 |
| 1 | BG4-4616A-00-00 | . .Servo Motor Comp | 1 |
| 3 | 95812-06016-00 | . Bolt, Flange | 3 |
| 4 | 95812-08025-00 | . Bolt, Flange | 4 |
| 1 | 90340-14029-00 | . Plug, Straight Screw | 1 |
| 1 | 214-11198-01-00 | . .Gasket | 1 |
| 1 | BG4-46108-00-00 | . .Cross Joint Comp. 3 | 1 |
| 2 | 93399-99965-00 | . . .Bearing | 2 |
| 2 | 93440-23197-00 | . . .Circlip | 2 |
| 1 | 1YW-46187-10-00 | . . ..Spider | 1 |
| 2 | 93399-99965-00 | . .Bearing | 2 |
| 2 | 93440-23197-00 | . .Circlip | 2 |
| 1 | 90201-46014-00 | . .Washer, Plate | 1 |
| 90445-080K8-00 | Hose (L1200) | ||
| 1 | 90467-08075-00 | Clip | 1 |
| 3 | 90464-10833-00 | Clamp | 3 |
| 1 | B4J-G6109-00-00 | Drive Shaft Comp | 1 |
| 2 | 99009-22400-00 | Circlip | 2 |
| 1 | 90201-22793-00 | Washer, Plate | 1 |
| 1 | 90501-234F8-00 | Spring, Compression | 1 |
| 1 | BG4-46136-00-00 | Seal 1 | 1 |
| 1 | BG4-42615-00-00 | Seal | 1 |
| 2 | 90105-12123-00 | Bolt, Flange | 2 |
| 2 | 90105-12091-00 | Bolt, Flange | 2 |
| 2 | 90185-12002-00 | Nut, Self-Locking | 2 |
| 6 | 92902-12200-00 | Washer | 6 |
| 1 | BG4-46161-00-00 | . . Housing, Shaft Drive 2 | 1 |
