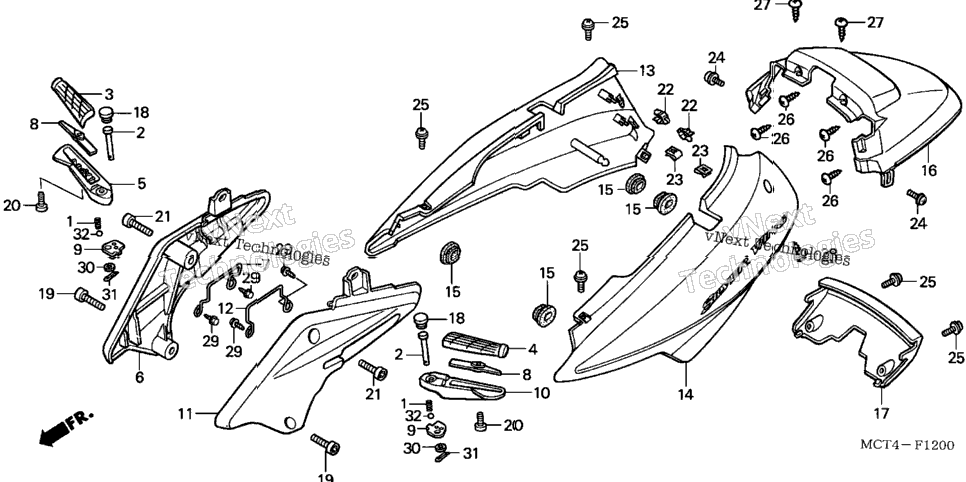

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 |
| 2 | 50603-MCT-000 | PIN, STEP BAR JOINT | 2 |
| 1 | 50617-MCT-000 | RUBBER, R. PILLION STEP | 1 |
| 1 | 50617-MGF-305 | RUBBER, R. PILLION STEP (COO) | 1 |
| 1 | 50618-MCT-000 | RUBBER, L. PILLION STEP | 1 |
| 1 | 50618-MGF-305 | RUBBER, L. PILLION STEP (COO) | 1 |
| 1 | 50652-MCT-000ZB | ARM, R. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50652-MGF-305ZA | ARM, R. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50663-MCT-000ZA | HOLDER, R. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50663-MCT-770ZC | HOLDER, R. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50664-MCT-000 | GUIDE, R. FLOOR | 1 |
| 2 | 50723-MCT-000 | PLATE, FOOT | 2 |
| 2 | 50724-MCT-000 | PLATE, PILLION STEP CLICK | 2 |
| 1 | 50752-MCT-000ZB | ARM, L. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50752-MGF-305ZA | ARM, L. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50763-MCT-000ZA | HOLDER, L. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC) | 1 |
| 1 | 50764-MCT-000 | GUIDE, L. FLOOR | 1 |
| 83400-MCT-690ZA | COVER SET, R. BODY *NH411M* (WL) (FORCE SILVER METALLIC) | ||
| 83400-MCT-690ZM | COVER SET, R. BODY *R150CU* (WL) (CANDY RASPBERRY RED-U) | ||
| 83400-MCT-691ZM | COVER SET, R. BODY *R150CU* (WL) (CANDY RASPBERRY RED-U) | ||
| 83400-MCT-692ZM | COVER SET, R. BODY *R150CU* (WL) (CANDY RASPBERRY RED-U) | ||
| 1 | 83500-MCT-690ZA | COVER SET, L. BODY *NH411M* (WL) (FORCE SILVER METALLIC) | 1 |
| 83500-MCT-690ZM | COVER SET, L. BODY *R150CU* (WL) (CANDY RASPBERRY RED-U) | ||
| 1 | 83500-MCT-691ZA | COVER SET, L. BODY *NH411M* (WL) (FORCE SILVER METALLIC) | 1 |
| 4 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 4 |
| 83600-MCT-505ZA | COVER ASS*NH411P* | ||
| 83600-MCT-690ZA | COVER SET, RR. BODY (TYPE1) (WL) | ||
| 1 | 83600-MCT-720ZA | COVER SET, RR. BODY (TYPE11) (WL) | 1 |
| 83611-MCT-000ZC | COVER, RR. (LOWER) *NH411M* (FORCE SILVER METALLIC) | ||
| 83611-MCT-000ZP | COVER, RR. (LOWER) *R150CU* (CANDY RASPBERRY RED-U) | ||
| 2 | 84702-MF2-670 | RUBBER, NUMBER PLATE BRACKET CUSHION | 2 |
| 2 | 90104-MCT-000 | BOLT, SOCKET (10X45) | 2 |
| 2 | 90131-MY3-781 | BOLT, TORX (5X14) | 2 |
| 2 | 90181-MCT-000 | BOLT, SOCKET (10X45) | 2 |
| 4 | 90666-S84-A01 | CLIP, SNAP FITTING | 4 |
| 2 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 |
| 2 | 93891-05012-08 | SCREW-WASHER (5X12) | 2 |
| 6 | 93891-05016-07 | SCREW-WASHER (5X16) | 6 |
| 4 | 93903-24310 | SCREW, TAPPING (4X12) | 4 |
| 2 | 93903-34380 | SCREW, TAPPING (4X12) | 2 |
| 1 | 93903-34480 | SCREW, TAPPING (4X16) | 1 |
| 4 | 93904-35380 | SCREW, TAPPING (5X16) | 4 |
| 2 | 94102-08800 | WASHER, PLAIN (8MM) | 2 |
| 2 | 94201-20120 | PIN, COTTER (2.0X12) | 2 |
| 2 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 |
