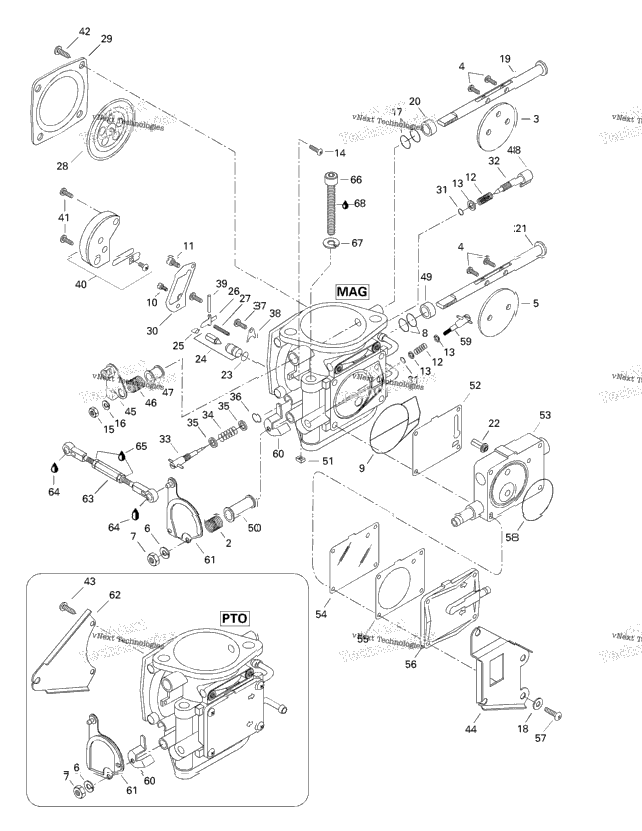

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270500285 | Carburetor Ass'y P.T.O Side Includes 1 - 62. GTX PTO 5642. | ||
| 270500284 | Carburetor Ass'y MAG Side GTX MAG 5642. | ||
| 270500097 | Spring | ||
| XXXX | Choke Valve | ||
| XXXX | Screw | ||
| XXXX | Throttle Valve | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500012 | Nut | ||
| 270500222 | Sealing Ring | ||
| 270500104 | O-Ring | ||
| 270500175 | Pilot Jet 70 | ||
| 270500209 | MAIN JET 142.5 | ||
| 2 | 270500091 | SPRING | 2 |
| 270500136 | Washer | ||
| 270500228 | Screw | ||
| 1 | 270500229 | NUT | 1 |
| 270500230 | Spring Washer | ||
| 2 | 270500234 | SEALING RING | 2 |
| 270500139 | Washer GTX MAG 5642. | ||
| XXXX | Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| XXXX | Throttle Shaft Ass'y | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500241 | Needle Valve 1.5 | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500267 | SPRING | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 1 | 270500133 | COVER | 1 |
| 1 | 270500131 | GASKET | 1 |
| 2 | 270500144 | O-RING | 2 |
| 270500113 | Adjuster Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 2 | 270500123 | SCREW | 2 |
| 270500243 | Screw | ||
| 270500190 | Screw GTX PTO 5642. | ||
| 270500270 | Bracket GTX MAG 5642. | ||
| 270500271 | Choke lever | ||
| 1 | 270500248 | SPRING | 1 |
| 270500110 | Ring | ||
| 270500154 | Cap | ||
| 270500221 | Ring | ||
| 1 | 270500192 | RING | 1 |
| 270500249 | Nut GTX MAG 5642. | ||
| 1 | 270500103 | GASKET GTX MAG 5642. | 1 |
| 270500269 | Body Pump Ass'y GTX MAG 5642. | ||
| 1 | 270500106 | DIAPHRAGM GTX MAG 5642. | 1 |
| 270500146 | Gasket GTX MAG 5642. | ||
| 270500108 | PUMP COVER GTX MAG 5642. | ||
| 270500138 | Pump Cover GTX PTO 5642. | ||
| 270500224 | Screw GTX MAG 5642. | ||
| 270500109 | Screw GTX PTO 5642. | ||
| 270500102 | O-RING GTX MAG 5642. | ||
| 270500288 | Adjuster Screw GTX MAG 5642. | ||
| 270500142 | Throttle Lever GTX MAG 5642. | ||
| 270500272 | Throttle Lever GTX PTO 5642. | ||
| 270500266 | Throttle Lever Ass'y GTX MAG 5642. | ||
| 270500287 | Throttle Lever Ass'y GTX PTO 5642. | ||
| 270500286 | Bracket GTX PTO 5642. | ||
| 270500256 | Carburator Linkage Rod | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 215987560 | Screw Allen M8 x 75 | ||
| 4 | 217383600 | Lock Washer 8 mm | 4 |
| 1 | 219704459 | Était Was 293800050 Loctite 577, 250 ml | 1 |
