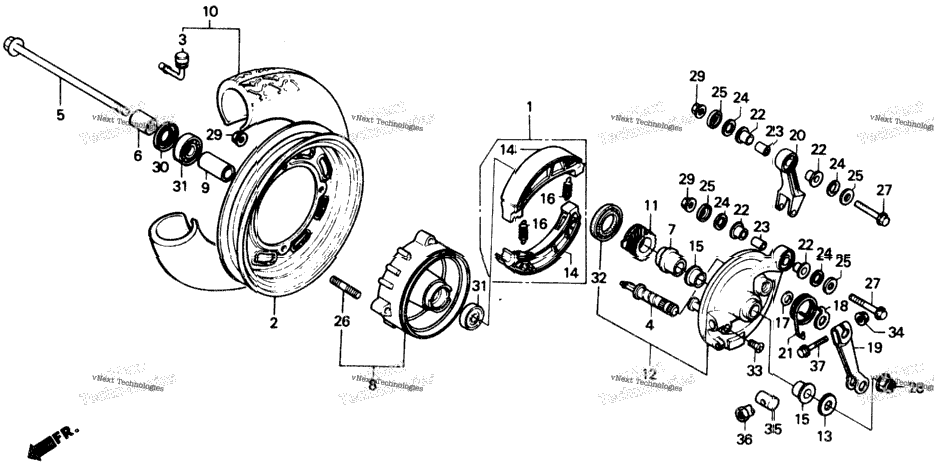

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06450-GAG-003 | SHOE KIT, BRAKE | 1 |
| 1 | 06450-096-405 | SHOE KIT, BRAKE | 1 |
| 1 | 451A2-096-305 | SHOE KIT, BRAKE | 1 |
| 1 | 06450-096-651 | SHOE SET, BRAKE (JB) (SEE KIT P/N--END OF BLOCK) | 1 |
| 42705-KV7-670ZA | RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC) | ||
| 42705-KV7-671ZA | RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC) | ||
| 1 | 42753-KJ9-003 | VALVE, RIM (BS) | 1 |
| 1 | 42753-KJ9-004 | VALVE, RIM (DUNLOP) | 1 |
| 1 | 42753-KJ9-005 | VALVE, RIM (IRC) | 1 |
| 43141-GC5-000 | CAM, RR. BRAKE | ||
| 44301-GG2-000 | AXLE, FR. WHEEL | ||
| 44311-KV7-670 | COLLAR, FR. WHEEL SIDE | ||
| 44312-GM9-000 | COLLAR A, FR. BRAKE PANEL | ||
| 44610-KV7-670ZA | HUB SUB, FR. WHEEL *NH35M* (CLOUD SILVER METALLIC) | ||
| 44620-GC8-000 | COLLAR, FR. AXLE DISTANCE | ||
| 44710-KJ9-751 | TIRE ASSY., FR. (3.50-10) (4PR/51J ML9) (BS) | ||
| 44710-KN7-672 | TIRE ASSY., FR. (3.50-10) (4PR F11) (DUNLOP) | ||
| 44804-KM1-671 | GEAR, SPEEDOMETER Use up to Frame SN HK202708 | ||
| 44804-KV7-671 | GEAR, SPEEDOMETER Use from Frame SN HK202709 | ||
| 45010-KV7-305ZA | PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) | ||
| 45010-KV7-315ZA | PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) | ||
| 45104-GM9-003 | DUST SEAL | ||
| 2 | 06450-178-932 | SHOE SET, BRAKE (JB) | 2 |
| 2 | 45120-GAG-003 | SHOE, BRAKE | 2 |
| 2 | 45120-096-651 | SHOE, BRAKE (JB) (SEE KIT P/N--END OF BLOCK) | 2 |
| 45120-968-681 | SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) | ||
| 45131-GM9-710 | BUSH, FR. BRAKE CALIPER | ||
| 2 | 45133-028-000 | SPRING, BRAKE SHOE | 2 |
| 1 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 |
| 45145-KB7-000 | INDICATOR, FR. BRAKE | ||
| 45410-098-860 | ARM, FR. BRAKE | ||
| 45432-KV7-670 | LINK, FR. BRAKE TORQUE | ||
| 45435-GM9-000 | SPRING, BRAKE ARM | ||
| 51312-KV7-671 | BUSH, TORQUE LINK | ||
| 51334-KV7-670 | COLLAR, TORQUE LINK DISTANCE | ||
| 4 | 51335-001-000 | DUST SEAL, FR. FORK (LOWER) | 4 |
| 4 | 51336-001-000 | CAP, FR. FORK DUST SEAL (LOWER) | 4 |
| 90110-KG8-900 | BOLT, STUD (8X22) | ||
| 90118-GM9-740 | BOLT, FLANGE (8X37) | ||
| 90118-GM9-741 | BOLT, FLANGE (8X37) | ||
| 1 | 90306-KF0-003 | NUT, FLANGE (12MM) | 1 |
| 6 | 90309-KF0-003 | NUT, FLANGE (8MM) | 6 |
| 6 | 90309-428-731 | NUT, FLANGE (M8X1.25) (SELF-LOCK) | 6 |
| 1 | 90754-GC8-003 | DUST SEAL (20X32X5) (ARAI) | 1 |
| 1 | 90754-GC8-005 | DUST SEAL (20X32X5) (NOK) | 1 |
| 2 | 90912-GC8-003 | BEARING, RADIAL BALL (6201U) (NTN CORP.) | 2 |
| 2 | 90912-GC8-004 | BEARING, RADIAL BALL (6201U) (KOYO) | 2 |
| 2 | 90912-GC8-005 | BEARING, RADIAL BALL (6201U) (NSK) | 2 |
| 91251-GE1-003 | OIL SEAL (41X51X5) | ||
| 1 | 93700-05018-0A | SCREW, OVAL (5X18) | 1 |
| 1 | 94050-06080 | NUT, FLANGE (6MM) | 1 |
| 1 | 95015-32001 | JOINT B, BRAKE ARM | 1 |
| 1 | 95015-42000 | NUT B, BRAKE ROD ADJUSTING | 1 |
| 1 | 95700-06028-00 | BOLT, FLANGE (6X28) | 1 |
| 1 | 95701-06028-00 | BOLT, FLANGE (6X28) | 1 |
