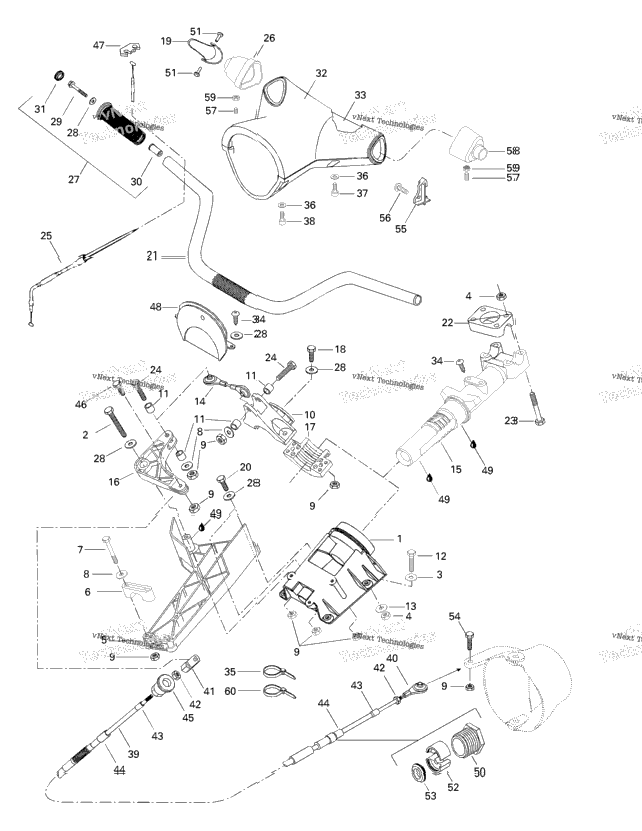

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000389 | Support Steering (Including Item 9) | ||
| 215066560 | Hex. Screw M6 x 65 | ||
| 4 | 213200002 | Flat Washer 8 mm | 4 |
| 8 | 212000002 | Elastic Stop Nut M8 | 8 |
| 277000017 | Cable Support (Including Item 9) | ||
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 215665060 | Hex. Screw M6 x 50 | 2 |
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 277000021 | ARM STEEM STEERING (INCLUDING 11) | ||
| 291000414 | Spacer 5 mm | ||
| 4 | 215684060 | Hexagonal Screw M8 x 40 | 4 |
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 277000369 | Ball Joint | ||
| 277000375400 | Steering Stem | ||
| 277000029 | Steering Stem Arm (Including 11) | ||
| 277000510 | THRUST ARM | ||
| 2 | 210000005 | Hex. Screw M6 x 25 | 2 |
| 277000214 | Throttle Handle | ||
| 2 | 210000004 | Hex. Screw M6 x 20 | 2 |
| 277000305 | Handle bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 215685060 | Hex. Screw M8 x 50 | 4 |
| 2 | 215663560 | Hex. Screw M6 x 35 | 2 |
| 277000030 | Throttle Cable | ||
| 277000285 | Throttle Handle Housing | ||
| 1 | 295500110 | Handle Grip Kit (Black) Includes 27 - 31. | 1 |
| 9 | 213200007 | Washer 6 mm | 9 |
| 2 | 211000031 | Hex. Screw M6 x 45 | 2 |
| XXXX | Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277000500 | STEERING COVER (BLACK) | 1 |
| 277000187 | Foam (Top) | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 4 | 213200004 | Flat Washer 5 mm | 4 |
| 2 | 211000021 | PHILLIPS SCREW #10 X 7/8 . | 2 |
| 211000037 | Phillips Screw 10-14 X 7/8” . | ||
| 277000051 | Steering Cable (including 45) | ||
| 1 | 277000153 | BALL JOINT | 1 |
| 277000646 | Joint | ||
| 2 | 212100005 | Hex. Nut | 2 |
| 277000466 | Boot, Small | ||
| 277000473 | Boot, Large | ||
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 1 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 1 |
| 1 | 277000279 | TAB LOCK | 1 |
| 277000501 | Plate (Black) | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 277000052 | Cable Lock | 1 |
| 2 | 277000381 | PIN | 2 |
| 2 | 277000055 | Half Ring | 2 |
| 211100009 | RUBBER WASHER | ||
| 1 | 210000006 | Hex. Screw M6 x 30 | 1 |
| 277000219 | Retainer Plate | ||
| 1 | 211000032 | Tapping Screw | 1 |
| 211000039 | Set Screw M6 x 12 | ||
| 277000036 | LH HANDLE HOUSING ASS'Y | ||
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
