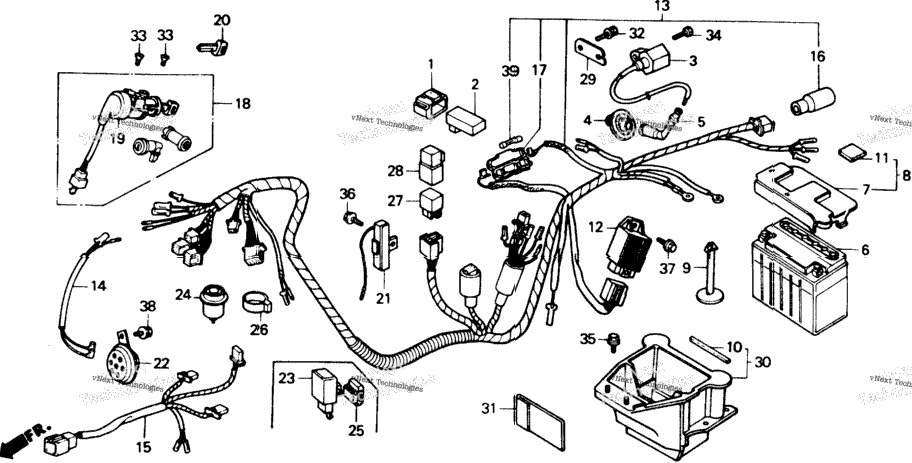

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 30401-GB6-000 | CUSHION, IGNITION CONTROL MODULE (CDI) | 1 |
| 30410-GE1-670 | MODULE, IGNITION CONTROL (CDI) | ||
| 30510-GE1-770 | COIL, IGNITION | ||
| 30510-GE1-771 | COIL, IGNITION | ||
| 30605-GK1-000 | SEAL, IGNITION | ||
| 1 | 30700-GK1-000 | CAP ASSY., NOISE SUPPRESSOR | 1 |
| 1 | 30700-GK1-010 | CAP ASSY., NOISE SUPPRESSOR | 1 |
| 1 | 30700-MG7-000 | CAP ASSY., NOISE SUPPRESSOR | 1 |
| 1 | 31500-GE1-771 | BATTERY (YT5L-12) (YUASA) | 1 |
| 1 | 31500-GE1-772 | BATTERY (YT5L-12) (YUASA) | 1 |
| 1 | 31500-GE1-773 | BATTERY (YT5L-12) (YUASA) | 1 |
| 1 | 31500-GE1-774 | BATTERY (YT5L-BS) (YUASA) | 1 |
| 1 | 31500-GE1-775 | BATTERY (YT5L-BS) (YUASA) | 1 |
| 1 | 31500-GE1-777 | BATTERY (YT5L-BS) (YUASA) | 1 |
| 1 | 31500-GE1-778 | BATTERY (YT5L-BS) (YUASA) | 1 |
| 1 | 31500-GE1-778AH | BATTERY (YT5L-BS) (YUASA) | 1 |
| 31506-GE1-740 | COVER, BATTERY | ||
| 31506-GV4-900 | COVER, BATTERY | ||
| 31507-GE1-770 | STOPPER, BATTERY COVER | ||
| 1 | 31508-GE1-670 | RUBBER, BATTERY | 1 |
| 31600-GM0-003 | RECTIFIER, REGULATOR | ||
| 31600-GW0-004 | RECTIFIER, REGULATE (SHINDENGEN) | ||
| 32100-GE1-770 | WIRE HARNESS | ||
| 32101-GE1-670 | SUB-WIRE HARNESS A | ||
| 32105-GE1-670 | SUB-HARNESS B | ||
| 32108-046-000 | COVER, WIRE HARNESS CONNECTOR | ||
| 32121-196-003 | CASE, FUSE CONNECTOR | ||
| 35010-GE1-740 | LOCK SET | ||
| 35100-GE1-740 | SWITCH ASSY., COMBINATION & LOCK | ||
| 35100-GE1-741 | SWITCH ASSY., COMBINATION & LOCK | ||
| 1 | 35121-MM8-811 | KEY, BLANK (TYPE1) (Optional). | 1 |
| 1 | 35121-MR1-770 | KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) (Optional). | 1 |
| 1 | 35121-402-811 | KEY, BLANK (TYPE1) (Optional). | 1 |
| 1 | 35122-MM8-811 | KEY, BLANK (TYPE2) (Optional). | 1 |
| 1 | 35122-MR1-770 | KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) (Optional). | 1 |
| 1 | 35122-402-811 | KEY, BLANK (TYPE2) (Optional). | 1 |
| 35400-166-611 | RESISTOR ASSY. | ||
| 38110-GJ1-731 | HORN | ||
| 38110-KE5-601 | HORN | ||
| 38110-KE8-601 | HORN | ||
| 38110-KY0-621 | HORN (HIGH) | ||
| 38110-MB2-621 | HORN (HIGH) | ||
| 38110-413-000 | HORN | ||
| 1 | 38301-GN3-671 | RELAY, TURN SIGNAL | 1 |
| 1 | 38301-GN3-672 | RELAY, TURN SIGNAL (MITSUBA) | 1 |
| 1 | 38306-GE7-000 | SUSPENSION, TURN SIGNAL RELAY | 1 |
| 1 | 38501-KG8-003 | RELAY, STARTER (DENSO) | 1 |
| 1 | 38501-KG8-004 | RELAY, STARTER (OMRON) | 1 |
| 1 | 38506-KG8-003 | SUSPENSION, STARTER RELAY (DENSO) | 1 |
| 38506-KG8-004 | SUSPENSION, STARTER RELAY (OMRON) | ||
| 50175-GE1-670 | STAY, IGNITION COIL | ||
| 1 | 50325-GE1-670 | BASE, SEAT & BATTERY | 1 |
| 1 | 77251-342-000 | BAG, SERVICE BOOK | 1 |
| 1 | 90101-SA7-000 | BOLT-WASHER (5X14) | 1 |
| 2 | 90164-028-000 | SCREW, U-LOCK FLAT (6X12) | 2 |
| 1 | 92000-05018-0A | BOLT, HEX. (5X18) | 1 |
| 1 | 92101-05018-0A | BOLT, HEX. (5X18) | 1 |
| 93495-06020-00 | BOLT-WASHER (6X20) | ||
| 1 | 95700-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95701-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95700-06016-00 | BOLT, FLANGE (6X16) | 1 |
| 1 | 95701-06016-00 | BOLT, FLANGE (6X16) | 1 |
| 1 | 95700-08014-00 | BOLT, FLANGE (8X14) | 1 |
| 1 | 95701-08014-00 | BOLT, FLANGE (8X14) | 1 |
| 2 | 98200-11000 | FUSE A (10A) | 2 |
