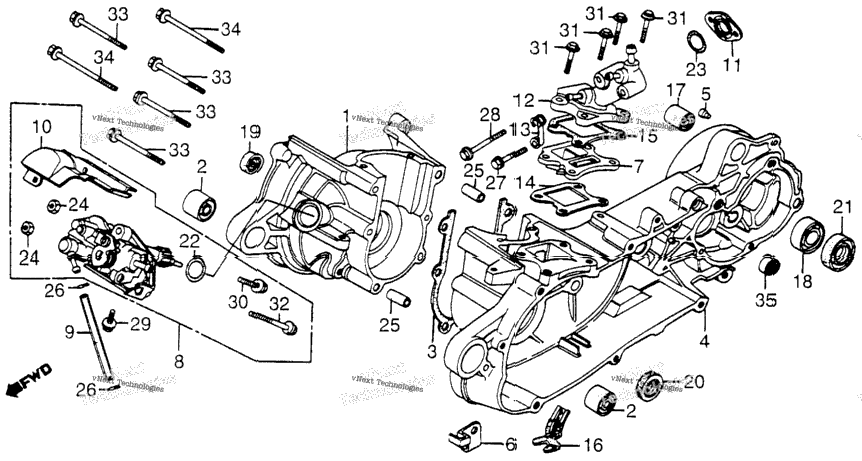

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11101-GC8-000 | CRANKCASE, R. | ||
| 11101-GC8-610 | CRANKCASE, R. | ||
| 2 | 11102-187-003 | BUSH, ENGINE HANGER RUBBER | 2 |
| 11191-GC8-000 | GASKET, CRANKCASE | ||
| 11191-GC8-010 | GASKET, CRANKCASE | ||
| 11191-GC8-020 | GASKET, CRANKCASE | ||
| 11191-GC8-306 | GASKET, CRANKCASE (AS) | ||
| 11201-GC8-000 | CRANKCASE, L. | ||
| 11201-GC8-610 | CRANKCASE, L. | ||
| 11202-GC7-300 | RUBBER, SPRING GUIDE | ||
| 11352-GC7-000 | CLIP, BRAKE CABLE | ||
| 14100-GC8-010 | VALVE, REED Use up to Engine SN ES112356 | ||
| 14100-GC8-610 | VALVE, REED | ||
| 14100-GC8-610 | VALVE, REED Use up to Engine SN ES112356 | ||
| 14100-GY1-610 | VALVE, REED | ||
| 14100-GY1-610 | VALVE, REED Use up to Engine SN ES112356 | ||
| 15100-GC8-721 | PUMP ASSY., OIL | ||
| 15100-GC8-722 | PUMP ASSY., OIL | ||
| 15525-GA7-000 | TUBE, OIL PASSAGE | ||
| 15532-KG8-000 | INSULATOR, OIL PUMP | ||
| 16211-GC8-000 | INSULATOR, CARBURETOR | ||
| 16211-GC8-640 | INSULATOR, CARBURETOR | ||
| 17100-GC8-000 | PIPE, INLET | ||
| 17104-GC7-000 | STAY, TUBE | ||
| 17104-GC8-000 | STAY, TUBE | ||
| 17104-GC8-720 | STAY, TUBE | ||
| 17111-GC8-003 | GASKET, IN. PIPE | ||
| 17111-GY1-610 | GASKET, IN. PIPE | ||
| 17112-GC8-000 | GASKET, IN. PIPE (UPPER) | ||
| 17112-GC8-306 | GASKET, IN. PIPE (UPPER) | ||
| 17112-GY1-610 | GASKET, IN. PIPE (UPPER) | ||
| 32913-KG8-000 | CLAMP, WIRE | ||
| 52109-222-810 | BUSH, RR. SWINGARM RUBBER (LOWER) | ||
| 1 | 91028-GA7-003 | BEARING, RADIAL BALL (6203UU) (TOYO) | 1 |
| 1 | 91028-GA7-004 | BEARING, RADIAL BALL (6203UU) (KOYO) | 1 |
| 91201-GC8-003 | OIL SEAL (20X30X7) | ||
| 91201-GC8-004 | OIL SEAL (20X30X7) | ||
| 1 | 91202-GC8-003 | OIL SEAL (20X31X7) | 1 |
| 1 | 91202-GC8-004 | OIL SEAL (20X31X7) | 1 |
| 1 | 91254-GE8-005 | OIL SEAL (24X40X7) | 1 |
| 1 | 91254-187-005 | OIL SEAL (24X40X7) | 1 |
| 1 | 91301-147-023 | O-RING (18.3X2.3) (ARAI) | 1 |
| 1 | 91301-166-000 | O-RING (18.3X2.3) | 1 |
| 1 | 91304-GC8-003 | O-RING (23X2.4) | 1 |
| 2 | 94001-06000-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94001-06200-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94301-10200 | PIN A, DOWEL (10X20) | 2 |
| 2 | 95002-02650 | CLIP, TUBE (B6.5) | 2 |
| 1 | 95700-06028-00 | BOLT, FLANGE (6X28) | 1 |
| 1 | 95701-06028-00 | BOLT, FLANGE (6X28) | 1 |
| 1 | 95700-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 1 | 95701-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 1 | 96000-06014-00 | BOLT, FLANGE (6X14) | 1 |
| 1 | 96001-06014-00 | BOLT, FLANGE (6X14) | 1 |
| 1 | 96000-06018-00 | BOLT, FLANGE (6X18) | 1 |
| 1 | 96001-06018-00 | BOLT, FLANGE (6X18) | 1 |
| 4 | 96000-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 4 | 96001-06028-00 | BOLT, FLANGE (6X28) | 4 |
| 1 | 96000-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 1 | 96001-06035-00 | BOLT, FLANGE (6X35) | 1 |
| 4 | 96000-06045-00 | BOLT, FLANGE (6X45) | 4 |
| 4 | 96001-06045-00 | BOLT, FLANGE (6X45) | 4 |
| 2 | 96000-06060-00 | BOLT, FLANGE (6X60) | 2 |
| 2 | 96001-06060-00 | BOLT, FLANGE (6X60) | 2 |
| 1 | 96100-62013-00 | BEARING, RADIAL BALL (6201) | 1 |
