Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

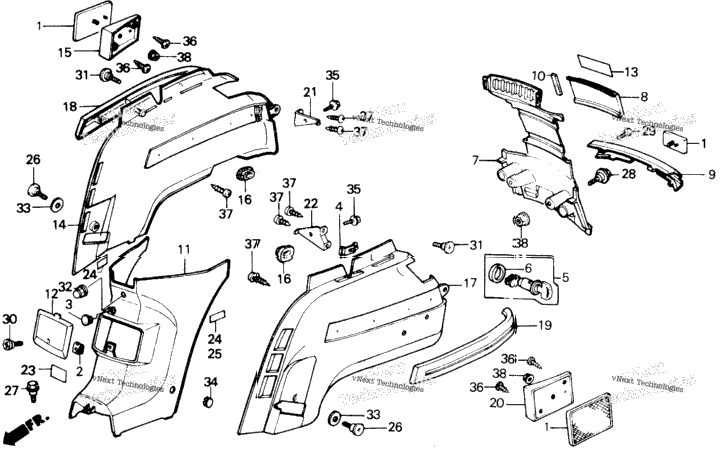

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 33742-MB2-672 | REFLECTOR, RR. REFLEX | ||
| 33754-MG9-771 | NUT, SPECIAL | ||
| 64317-KN7-670 | PLUG, LEG SHIELD | ||
| 1 | 75581-673-000 | SPRING, LOCK KEY SETTING | 1 |
| 77230-KM1-000 | KEY ASSY., SEAT LOCK | ||
| 77231-KM1-000 | COLLAR, SEAT LOCK KEY | ||
| 80101-KM1-000ZB | COVER, RR. BODY *NH135PA* (PEARL SATIN WHITE) | ||
| 80101-KM1-000ZF | COVER, RR. BODY *NH163P* (PEARL GOLD BLACK) | ||
| 80102-KM1-770ZA | GARNISH, RR. BODY COVER (TYPE1) | ||
| 80102-KM1-770ZB | GARNISH, RR. BODY COVER (TYPE2) | ||
| 80103-KM1-770ZA | PROTECTOR, RR. COVER (TYPE1) (WL) | ||
| 80103-KM1-770ZB | PROTECTOR, RR. COVER (TYPE2) (WL) | ||
| 80104-KM1-770 | SEAL, RR. GARNISH BODY COVER | ||
| 80151-KM1-670ZC | COVER, BODY CENTER *NH158* (CARBON GRAY) | ||
| 80152-KM1-000ZE | COVER, CARBURETOR MAINTENANCE *NH158* (CARBON GRAY) | ||
| 83500-KM1-671ZC | COVER, R. BODY *NH135PA* (WOL) (PEARL SATIN WHITE) | ||
| 83500-KM1-671ZD | COVER, R. BODY *NH163P* (WOL) (PEARL GOLD BLACK) | ||
| 83503-KM1-750 | SPACER, R. RR. REFLECTOR | ||
| 2 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 2 |
| 83600-KM1-671ZC | COVER, L. BODY *NH135PA* (WOL) (PEARL SATIN WHITE) | ||
| 83600-KM1-671ZD | COVER, L. BODY *NH163P* (WOL) (PEARL GOLD BLACK) | ||
| 83601-KM1-307ZA | PROTECTOR, R. BODY COVER (TYPE1) | ||
| 83601-KM1-770ZA | PROTECTOR, R. BODY COVER (TYPE1) (WL) | ||
| 83601-KM1-770ZB | PROTECTOR, R. BODY COVER (TYPE2) (WL) | ||
| 83602-KM1-307ZA | PROTECTOR, L. BODY COVER (TYPE1) | ||
| 83602-KM1-307ZB | PROTECTOR, L. BODY COVER (TYPE2) | ||
| 83602-KM1-770ZA | PROTECTOR, L. BODY COVER (TYPE1) (WL) | ||
| 83602-KM1-770ZB | PROTECTOR, L. BODY COVER (TYPE2) (WL) | ||
| 83603-KM1-750 | SPACER, L. RR. REFLECTOR | ||
| 83604-KM1-000 | BRACKET, R. BODY COVER | ||
| 83605-KM1-000 | BRACKET, L. BODY COVER | ||
| 87505-KM1-770 | MARK, TIRE CAUTION | ||
| 2 | 87511-323-670 | LABEL, HELMET HOLDER | 2 |
| 90104-KM1-000 | SCREW, SPECIAL (5X8) | ||
| 1 | 90111-162-000 | BOLT, FLANGE (6MM) | 1 |
| 2 | 90111-187-000 | BOLT, FLANGE (6MM) | 2 |
| 90113-SB3-000 | SCREW (4X8) | ||
| 1 | 90142-GC8-000 | BOLT, COVER SETTING | 1 |
| 2 | 90142-KG8-000 | BOLT, COVER SETTING | 2 |
| 1 | 90301-693-000 | NUT, OPEN STAY (6MM) | 1 |
| 2 | 90401-KM1-000 | WASHER, BODY COVER SETTING | 2 |
| 90656-KM1-000ZD | PLUG, HOLE *NH158* (CARBON GRAY) | ||
| 90656-KM1-000ZF | PLUG, HOLE *NH158R* (CARBON GRAY) | ||
| 92400-06012 | BOLT, SLOTTED (6X12) | ||
| 92400-06012-0A | BOLT, SLOTTED (6X12) | ||
| 92401-06012-0A | BOLT, SLOTTED (6X12) | ||
| 93901-45310 | SCREW, TAPPING (5X20) | ||
| 16 | 93903-24320 | SCREW, TAPPING (4X12) | 16 |
| 3 | 94050-05000 | NUT, FLANGE (5MM) | 3 |
