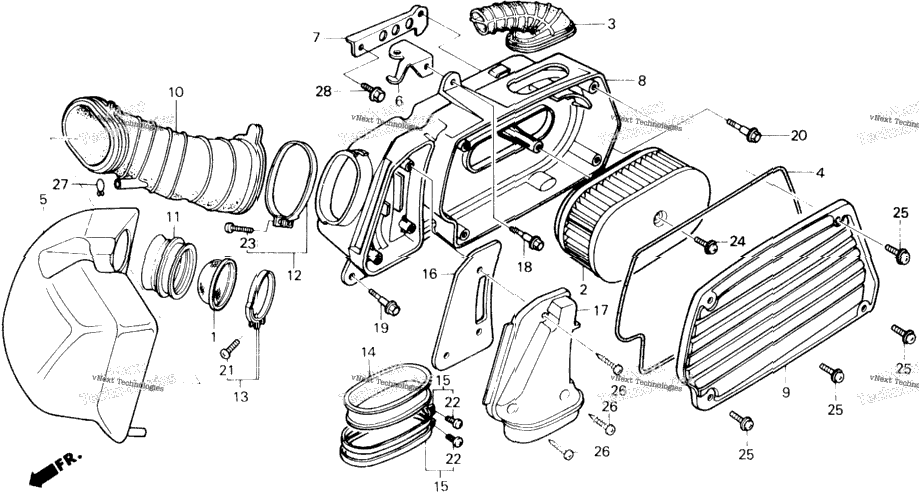

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17205-KM1-000 | FLAME TRAP, AIR CLEANER | ||
| 17205-KM1-010 | FLAME TRAP, AIR CLEANER | ||
| 17211-KM1-770 | ELEMENT, AIR CLEANER | ||
| 17213-KM1-000 | DUCT, AIR CLEANER | ||
| 1 | 17212-GC8-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17212-GJ5-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17212-GR1-000 | SEAL, AIR CLEANER HOUSING | 1 |
| 1 | 17212-KJ9-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17219-HB3-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17219-MA0-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17219-MC4-000 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17222-MN4-405 | SEAL, AIR CLEANER COVER | 1 |
| 1 | 17231-MB1-000 | SEAL, AIR CLEANER HOUSING | 1 |
| 1 | 17231-MB2-000 | SEAL, AIR CLEANER HOUSING | 1 |
| 1 | 17231-MB4-000 | SEAL, AIR CLEANER COVER | 1 |
| 17221-KM1-000 | CHAMBER, AIR CLEANER | ||
| 17228-KM1-000 | STAY A, AIR CLEANER HOUSING | ||
| 17229-KM1-000 | STAY B, AIR CLEANER HOUSING | ||
| 17229-KM1-010 | STAY B, AIR CLEANER HOUSING | ||
| 17230-KM1-770 | HOUSING, AIR CLEANER | ||
| 17230-KM1-771 | HOUSING, AIR CLEANER | ||
| 17231-KM1-000 | COVER, AIR CLEANER HOUSING | ||
| 17253-KM1-000 | TUBE, AIR CLEANER Use up to Frame SN GK101898 | ||
| 17253-KM1-010 | TUBE, AIR CLEANER Use from Frame SN GK101899 | ||
| 17254-KM1-000 | TUBE, AIR CLEANER CONNECTING | ||
| 17254-KM1-010 | TUBE, AIR CLEANER CONNECTING | ||
| 17254-KS4-010 | TUBE, AIR CLEANER CONNECTING | ||
| 17255-KM1-770 | BAND, AIR CLEANER TUBE | ||
| 1 | 17256-MG3-000 | BAND ASSY., CONNECTING TUBE | 1 |
| 1 | 17255-GC4-830 | BAND, CARBURETOR INSULATOR | 1 |
| 1 | 17255-KM9-000 | BAND ASSY., CONNECTING TUBE | 1 |
| 1 | 17256-KM9-000 | BAND ASSY., CONNECTING TUBE | 1 |
| 1 | 90652-GHB-720 | BAND, AIR CLEANER CONNECTING TUBE (58) | 1 |
| 1 | 95018-58250 | BAND, AIR CLEANER CONNECTING TUBE (58) | 1 |
| 19410-KM1-000 | TUBE, BELT CASE | ||
| 19410-KM1-010 | TUBE, BELT CASE | ||
| 19411-KM1-000 | BAND, BELT CASE | ||
| 19412-KM1-000 | ELEMENT, BELT CASE | ||
| 19413-KM1-000 | COVER, BELT CASE ELEMENT | ||
| 1 | 90110-147-000 | BOLT, FLANGE (6MM) | 1 |
| 1 | 90111-147-000 | BOLT, FLANGE (6MM) | 1 |
| 1 | 90111-187-000 | BOLT, FLANGE (6MM) | 1 |
| 1 | 93500-04025-0A | SCREW, PAN (4X25) | 1 |
| 2 | 93500-05014-0G | SCREW, PAN (5X14) | 2 |
| 1 | 93500-05025-0G | SCREW, PAN (5X25) | 1 |
| 1 | 93891-05012-08 | SCREW-WASHER (5X12) | 1 |
| 4 | 93891-05016-07 | SCREW-WASHER (5X16) | 4 |
| 3 | 93903-24520 | SCREW, TAPPING (4X20) | 3 |
| 1 | 95002-70000 | CLIP, TUBE (C11) | 1 |
| 1 | 93494-06020-08 | BOLT-WASHER (6X20) | 1 |
| 1 | 93404-06020-08 | BOLT-WASHER (6X20) | 1 |
