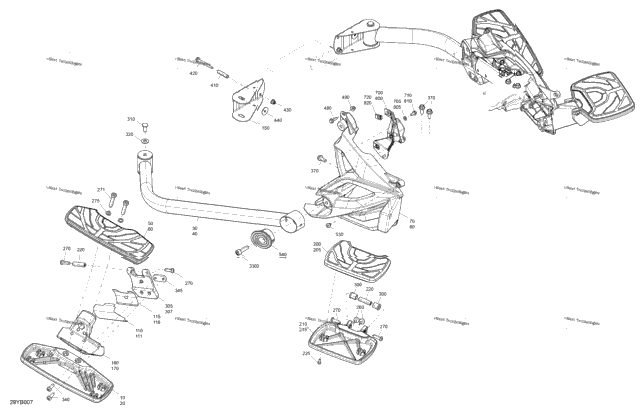

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705009454 | LH Foot Board Includes 10 to 10b | 1 |
| 1 | 705009455 | RH Foot Board Includes 20 to 20b | 1 |
| 1 | 705008955 | Carbon Black, LH Footrest Support Includes 30 to 30b | 1 |
| 1 | 705008954 | Carbon Black, RH Footrest Support Includes 40 to 40b | 1 |
| XXXX | Not Available As Spare Part - LH Footrest Pad | ||
| 1 | 705009230 | RH Pad | 1 |
| 1 | 705009402 | Carbon Black, RH Rear Footrest Support Includes 70 to 70b | 1 |
| 1 | 705009401 | Carbon Black, LH Rear Footrest Support Includes 80 to 80b | 1 |
| 1 | 705014178 | LH Outer Protective Film | 1 |
| 1 | 705014179 | RH Outer Protective Film | 1 |
| 1 | 705014175 | RH Inner Protective Film | 1 |
| 1 | 705014174 | LH inner Protective Film | 1 |
| 2 | 705008950 | Tube Support Includes 150 to 150a | 2 |
| 1 | 705009466 | Carbon Black, LH Slider Outside Includes 160 to 160b | 1 |
| 1 | 705009463 | Carbon Black, RH Slider Outside Includes 170 to 170b | 1 |
| 1 | 705009234 | Foot Board Pad, Passenger | 1 |
| 1 | 705010759 | Carbon Black, RH Foot Board Includes 210 to 210b | 1 |
| 1 | 705010759 | Carbon Black, RH Foot Board Includes 215 to 215b | 1 |
| 4 | 705013628 | Pivot Pin | 4 |
| 4 | 250000099 | Allen Plastite Screw #12 | 4 |
| 4 | 708000759 | Rubber Stopper | 4 |
| 4 | 250000830 | Socket Head Screw M8 X 25 Includes 270 to 270 | 4 |
| 4 | 250000997 | Thin Socket Screw, Scotch Grip, M10 | 4 |
| 4 | 250200105 | Stainless Flat Washer, 10 mm | 4 |
| 4 | 705008166 | Spacer Bushing | 4 |
| 1 | 705013117 | Black, LH Slider Clamp Includes 305 to 305b | 1 |
| 1 | 705013120 | Black, RH Slider Clamp Includes 307 to 307b | 1 |
| 4 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 | 4 |
| 4 | 506152582 | Washer | 4 |
| 2 | 244003560 | Socket Head Screw M10 X 35, Scotch Grip | 2 |
| 4 | 250000830 | Socket Head Screw M8 X 25 | 4 |
| 2 | 705008553 | Back Plate | 2 |
| 5 | 207582054 | Hex Screw Washer Head M8 X 20 | 5 |
| 2 | 705008219 | Spacer | 2 |
| 2 | 250000778 | Hex. Flange Screw M6 X 60 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 250200029 | Washer M6 | 2 |
| 2 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 705010203 | Pivot Cap Includes 540 to 540b | 2 |
| 1 | 705008961 | LH Fairing Support | 1 |
| 3 | 234061670 | Black, Flat Washer 6 mm | 3 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 | 3 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 1 | 705008962 | RH Fairing Support | 1 |
