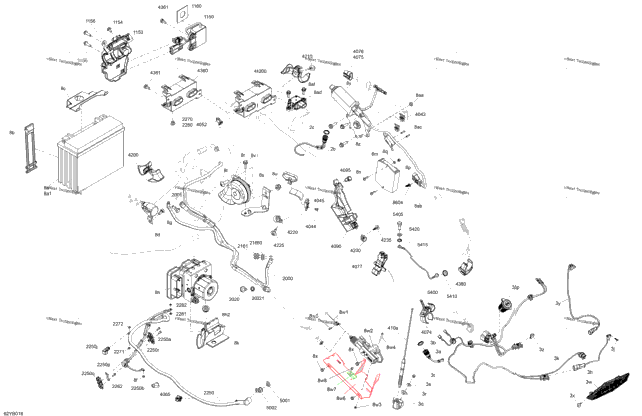

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710004598 | Switch | 1 |
| 1 | 710004108 | Nut | 1 |
| 1 | 710005315 | Open Detection | 1 |
| 1 | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 | 1 |
| 1 | 710008257 | Upper Rear Box Wiring Harness | 1 |
| 1 | 219400510 | USB Outlet | 1 |
| 1 | 710005631 | Antenna Support | 1 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| 1 | 233251414 | Hex. Flange Elastic Nut M5 | 1 |
| 1 | 520001143 | Rear Light | 1 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 2 |
| 1 | 710001533 | Trunk Light | 1 |
| 1 | 409210100 | Clip Bracket Connector (edge) | 1 |
| 1 | 219800519 | Battery, 12 Volts, 21 Amperes Includes 8a to 8a1 | 1 |
| 1 | 515179142 | Battery Bolt Kit | 1 |
| 1 | 520000528 | Latch | 1 |
| 1 | 710002893 | Battery Holder | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 219800502 | VCM Wet Prog & Grommet Module Kit Includes 8h to 8h2 | 1 |
| 1 | 710003279 | Shock Damper | 1 |
| 1 | 710003996 | VCM Harness Protector | 1 |
| 1 | 710008602 | PBM Module Ass'y | 1 |
| 2 | 250000750 | Torx Screw M4 X 16 | 2 |
| 2 | 232541484 | Elastic Stop Nut M4 | 2 |
| 2 | 234041480 | Flat Washer 4 mm | 2 |
| 1 | 710004940 | Horn | 1 |
| 1 | 710005769 | Horn Support | 1 |
| 1 | 250000874 | Torx Truss M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 710002889 | Reverse Cable | 1 |
| 1 | 710011269 | Actuator | 1 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 2 | 205444056 | Socket Head Screw M4 X 40 | 2 |
| 1 | 390403000 | Pop Rivet 5/32 | 1 |
| 1 | 710005642 | Reverse Actuator Support | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 | 3 |
| 1 | 710007256 | Actuator Motor | 1 |
| 3 | 207662054 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 232561434 | Elastic Stop Nut M6 | 3 |
| 1 | 710001379 | Brake Pressure Switch Ass'y | 1 |
| 2 | 293150150 | Pop Rivet | 2 |
| 1 | 710005658 | Yaw Rate Sensor | 1 |
| 2 | 210261650 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 710005434 | Antenna | 1 |
| 1 | 710004916 | Dess Module | 1 |
| 1 | 710004308 | Wire Support | 1 |
| 1 | 210261050 | Hex. Forming Screw M6 X 10 | 1 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 293830091 | Rubber Bumper | 1 |
| 1 | 710008074 | Pos Cable | 1 |
| 1 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 1 |
| 1 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 1 |
| 1 | 234481608 | Serrated Lock Washer 8 mm | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710007687 | Battery Wiring Harness Includes 2250 to 2250r | 1 |
| 1 | 207161444 | Hex. Screw M6 X 14 | 1 |
| 1 | 710000393 | Protector Cap | 1 |
| 1 | 710002945 | Battery Guard | 1 |
| 1 | 710008102 | Fuse 80 A | 1 |
| 1 | 710008098 | Fuse Holder Support | 1 |
| 1 | 710008154 | Fuse Holder Cover | 1 |
| 2 | 210261250 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 3 | 710001222 | Lock | 3 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 3 | 293750083 | Cable Support | 3 |
| 1 | 710004613 | Support | 1 |
| 1 | 710004901 | Connector Plug | 1 |
| 1 | 710004669 | Wire Support | 1 |
| 1 | 710004794 | Harness Holder | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 2 | 710004931 | Harness Holder | 2 |
| 2 | 414745900 | Tuflock Phillips Plastic Screw | 2 |
| 2 | 710004424 | Tie Rap | 2 |
| 2 | 710004472 | Fuse Holder Support | 2 |
| 4 | 210261250 | Hex. Flange Screw M6 X 12 | 4 |
| 1 | 710004299 | Cable Support | 1 |
| 1 | 234181601 | Lock Washer 8 mm, Stainless | 1 |
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 1 | 710006436 | Fuel Tank Cable | 1 |
| 1 | 207382060 | Hex. Screw M8 X 20, Scotch Grip | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 | 1 |
| 1 | 250200111 | Washer | 1 |
| 1 | 710002033 | Connector Holder | 1 |
