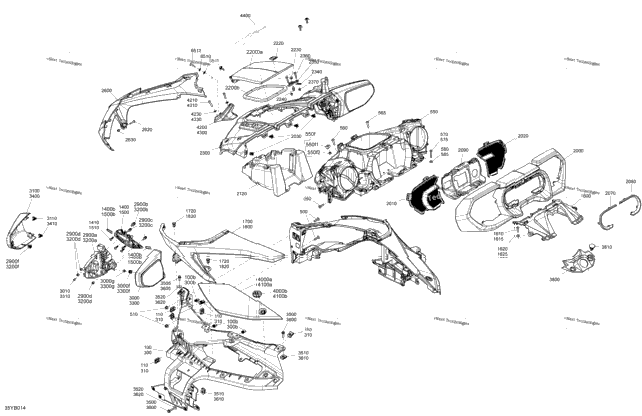

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708400170 | LH Console Support Included 100 to 100b | 1 |
| 3 | 250000958 | Panel Nut M5 X 0.8 | 3 |
| 6 | 250100208 | Panel Nut M6 X 1.0 | 6 |
| 1 | 708400171 | RH Console Support Included 300 to 300b | 1 |
| 2 | 250000758 | Torx Screw M6 X 25 | 2 |
| 2 | 233261494 | Hex. Flange Elastic Nut M6 | 2 |
| 1 | 708400219 | Upper Pod Included 550 to 550f | 1 |
| 4 | 269502408 | Housing Nut M6 Included 550f to 550f2 | 4 |
| 1 | 269500252 | M6 Nut Housing Ass'y | 1 |
| 1 | 232561200 | Brass Elastic Stop Nut M6 | 1 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 1 | 250000732 | Torx Screw Nylon | 1 |
| 1 | 234052670 | Stainless Steel Flat Washer M5 | 1 |
| 1 | 705008211 | LH Mirror Plate Support Ass'y Included 1400 to 1400b | 1 |
| 2 | 705006661 | Spring | 2 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 1 | 705008210 | RH Mirror Plate Support Ass'y Included 1500 to 1500b | 1 |
| 1 | 708400108 | Column Fairing | 1 |
| 1 | 250000762 | Torx Screw M5 X 25 | 1 |
| 1 | 708400566 | Monolith Black, LH Console Fairing | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 708400567 | Monolith Black, RH Console Fairing | 1 |
| 1 | 708400230 | Dashboard | 1 |
| 1 | 708400231 | LH Grille | 1 |
| 1 | 708400232 | RH Grille | 1 |
| 6 | 517302785 | Edge Clip | 6 |
| 1 | 705012356 | Carbon Black, LH Trim Gauge | 1 |
| 1 | 705012357 | Carbon Black, RH Trim Gauge | 1 |
| 1 | 705012178 | Speedometer Support | 1 |
| 1 | 708400103 | Pod Foam | 1 |
| 1 | 708400217 | Glove Box Door | 1 |
| 1 | 293250406 | Seal | 1 |
| 1 | 708400213 | Lever | 1 |
| 1 | 705011056 | Stud M5 | 1 |
| 1 | 708400221 | Upper Fairing | 1 |
| 1 | 705006661 | Spring | 1 |
| 1 | 708400215 | Receptacle | 1 |
| 2 | 250000762 | Torx Screw M5 X 25 | 2 |
| 2 | 233251494 | Elastic Flange Nut M5 | 2 |
| 1 | 708400571 | Monolith Black, Front Fairing | 1 |
| 1 | 233251494 | Elastic Flange Nut M5 | 1 |
| 1 | 708400224 | LH Mirror Support | 1 |
| 1 | 705006733 | Flat Head Stud M5 | 1 |
| 2 | 708400538 | Stud Ball M5 | 2 |
| 3 | 233251434 | Flange Elastic Nut M5 | 3 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 708400592 | LH Rear View Mirror Housing Ass'y Included 3000 to 3000g | 1 |
| 1 | 705010625 | Spring | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 250001131 | Torx Truss PT K40 x 12 | 1 |
| 1 | 708400587 | Monolith Black, LH Front Rear View Mirror Trim | 1 |
| 2 | 517306478 | Clip | 2 |
| 1 | 708400225 | RH Mirror Support | 1 |
| 1 | 708400593 | RH Rear View Mirror Housing Ass'y Included 3300 to 3300g | 1 |
| 1 | 708400588 | Monolith Black, RH Front Rear View Mirror Trim | 1 |
| 3 | 250000793 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 | 1 |
| 3 | 250100208 | Panel Nut M6 X 1.0 | 3 |
| 3 | 250200164 | Flat washer M6 | 3 |
| 1 | 708400205 | Switch Bezel | 1 |
| 1 | 708400046 | Cap | 1 |
| 1 | 708400575 | Carbon Monolith, LH Front Access Cover | 1 |
| 1 | 708400065 | Cover Latch Quarter Turn | 1 |
| 1 | 708400576 | Carbon Monolith, RH Front Access Cover | 1 |
| 1 | 708400127 | Carbon Black, LH Windshield Base | 1 |
| 2 | 250000328 | Torx Screw M6 X 25, Scotch Grip | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 1 | 708400128 | Carbon Black, RH Windshield Base | 1 |
| 1 | 708400342 | Windshield | 1 |
| 4 | 234052670 | Stainless Steel Flat Washer M5 | 4 |
| 4 | 293830190 | Rubber Washer | 4 |
| 4 | 250000528 | Torx Screw M5 X 20 | 4 |
