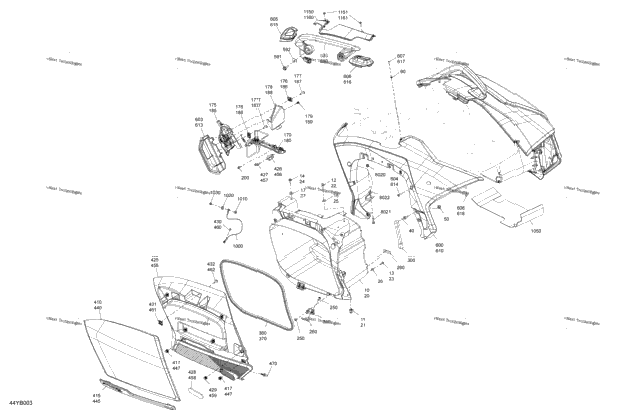

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708303975 | LH Rear Storage Box | 1 |
| 1 | 291003793 | Insert | 1 |
| 1 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 708303976 | RH Rear Storage Box | 1 |
| 2 | 234052670 | Stainless Steel Flat Washer M5 | 2 |
| 2 | 250300016 | Ball Head Stud | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 234051670 | Flat Washer M5 | 2 |
| 1 | 708304019 | RH Latch Lid Ass'y | 1 |
| 1 | 708301222 | LH Control | 1 |
| 2 | 250100208 | Panel Nut M6 X 1.0 | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 708304012 | LH Control Protector | 1 |
| 1 | 293730079 | Dart | 1 |
| 1 | 708304020 | LH Latch Lid Ass'y | 1 |
| 1 | 708301697 | RH Control | 1 |
| 1 | 708304013 | RH Control Protector | 1 |
| 4 | 250000717 | Torx Head Screw M6 X 16 | 4 |
| 4 | 708300006 | Hinge | 4 |
| 16 | 250000767 | Torx Truss Screw M6 X 12 | 16 |
| 8 | 708300129 | Back Plate Support | 8 |
| 2 | 708303322 | Shock Absorber | 2 |
| 1 | 708304139 | Gasket | 1 |
| 1 | 708303150 | Petrol, LH Rear Box Cover | 1 |
| 1 | 708303002 | LH Rear Box Trim | 1 |
| 2 | 517302785 | Edge Clip | 2 |
| 1 | 708303977 | LH interior Box Cover | 1 |
| 2 | 708303255 | Striker Cover | 2 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 | 2 |
| 1 | 705015551 | Red, Reflector | 1 |
| 5 | 517302785 | Edge Clip | 5 |
| 1 | 250001131 | Torx Truss PT K40 x 12 | 1 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 1 |
| 1 | 708303158 | Petrol, RH Rear Box Cover | 1 |
| 1 | 708303003 | RH Rear Trim Box | 1 |
| 1 | 708303978 | RH interior Box Cover | 1 |
| 2 | 250300064 | Ball Joint | 2 |
| 1 | 708304248 | LH Rear Heated Holding Handle | 1 |
| 1 | 708304249 | RH Rear Heated Holding Handle | 1 |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 1 | 708304077 | LH Over Fairing | 1 |
| 1 | 708303323 | LH Lever Trim | 1 |
| 9 | 250001110 | Torx Screw K50 X 25 | 9 |
| 1 | 708303393 | LH Front Armrest Trim | 1 |
| 1 | 708303749 | LH Rear Arm Rest Trim | 1 |
| 1 | 250000759 | Torx Truss Pt K40 X 16 | 1 |
| 1 | 250000805 | Plastite Screw M4 X 10 | 1 |
| 1 | 708304078 | RH Over Fairing | 1 |
| 1 | 708303324 | RH Lever Trim | 1 |
| 1 | 708303394 | RH Front Armrest Trim | 1 |
| 1 | 708303750 | RH Rear Arm Rest Trim | 1 |
| 2 | 708300385 | Retainer Cable | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 2 | 211200055 | Flat Washer, Stainless/Neoprene | 2 |
| 2 | 232061414 | Hex. Nut M6 | 2 |
| 1 | 705016874 | Heat Shield | 1 |
| 1 | 708303754 | LH Access Cover | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 708303755 | RH Access Cover | 1 |
| 2 | 233261494 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 207662554 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
