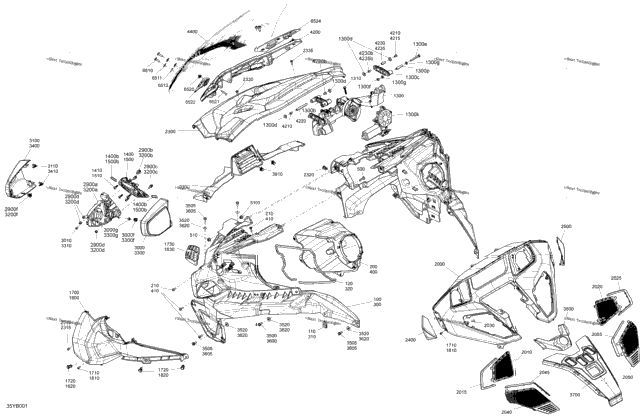

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708400548 | LH Console Support | 1 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 1 | 219704373 | Seal 1000Mm Long | 1 |
| 1 | 708400377 | LH Front Speaker Support | 1 |
| 6 | 250000720 | Torx Screw K50 X 16 | 6 |
| 1 | 708400549 | RH Console Support | 1 |
| 1 | 708400378 | RH Front Speaker Support | 1 |
| 4 | 250000758 | Torx Screw M6 X 25 | 4 |
| 4 | 233261494 | Hex. Flange Elastic Nut M6 | 4 |
| 1 | 705016962 | Windshield Support Ass'y Included 1300 to 1300p | 1 |
| 1 | 705013108 | Windshield Lifting Arm Repair Kit | 1 |
| 2 | 219800432 | Rear Arm Ass'y | 2 |
| 6 | 705003267 | Sleeve | 6 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 232561200 | Brass Elastic Stop Nut M6 | 2 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 1 | 278002579 | Windshield Motor | 1 |
| 2 | 705004260 | Inner Sleeve | 2 |
| 8 | 250000949 | Screw PT K60 X 30 | 8 |
| 1 | 705008211 | LH Mirror Plate Support Ass'y Included 1400 to 1400b | 1 |
| 2 | 705006661 | Spring | 2 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 1 | 705008210 | RH Mirror Plate Support Ass'y Included 1500 to 1500b | 1 |
| 1 | 708400541 | LH Console Fairing | 1 |
| 2 | 250001131 | Torx Truss PT K40 x 12 | 2 |
| 3 | 293150230 | Tuflok Plastic Rivet | 3 |
| 1 | 708400459 | LH Fairing Support | 1 |
| 1 | 708400542 | RH Console Fairing | 1 |
| 1 | 708400460 | RH Fairing Support | 1 |
| 1 | 708400539 | Dashboard | 1 |
| 1 | 708400357 | Deep Black, LH Upper Speaker Grille | 1 |
| 1 | 708400382 | Deep Black, LH Upper Speaker Trim | 1 |
| 1 | 708400358 | Deep Black, RH Upper Speaker Grille | 1 |
| 1 | 708400383 | Deep Black, RH Upper Speaker Trim | 1 |
| 1 | 708400355 | Deep Black, LH Lower Speaker Grille | 1 |
| 1 | 708400390 | Deep Black, LH Lower Speaker Trim | 1 |
| 1 | 708400356 | Deep Black, RH Lower Speaker Grille | 1 |
| 1 | 708400391 | Deep Black, RH Lower Speaker Trim | 1 |
| 1 | 708400605 | Deep Black, Console Fairing | 1 |
| 1 | 250001131 | Torx Truss PT K40 x 12 | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 708400436 | Black, LH Rear View Mirror Trim | 1 |
| 1 | 708400437 | Black, RH Rear View Mirror Trim | 1 |
| 1 | 708400224 | LH Mirror Support | 1 |
| 1 | 705006733 | Flat Head Stud M5 | 1 |
| 2 | 708400538 | Stud Ball M5 | 2 |
| 3 | 233251434 | Flange Elastic Nut M5 | 3 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 708400592 | LH Rear View Mirror Housing Ass'y Included 3000 to 3000g | 1 |
| 1 | 705010625 | Spring | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 708400465 | Deep Black, LH Rear View Mirror Trim | 1 |
| 2 | 517306478 | Clip | 2 |
| 1 | 708400225 | RH Mirror Support | 1 |
| 1 | 708400593 | RH Rear View Mirror Housing Ass'y Included 3300 to 3300g | 1 |
| 1 | 708400466 | Deep Black, RH Rear View Mirror Trim | 1 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 | 1 |
| 4 | 210261650 | Hex. Flange Screw M6 X 16 | 4 |
| 5 | 250200164 | Flat washer M6 | 5 |
| 1 | 705014024 | Black, Central Console Fairing | 1 |
| 1 | 708400555 | Front Switch Housing | 1 |
| 1 | 708201070 | Black, Headlights Central Fairing | 1 |
| 2 | 517302785 | Edge Clip | 2 |
| 1 | 708400223 | Carbon Black, Windshield Support | 1 |
| 2 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 2 |
| 1 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 1 |
| 1 | 219800355 | Pivot Arms Repair Kit Included 4220 to 4220b | 1 |
| 1 | 219800355 | Pivot Arms Repair Kit Included 4230 to 4230b | 1 |
| 1 | 219800355 | Pivot Arms Repair Kit Included 4235 to 4235b | 1 |
| 1 | 708400409 | Smoked Windshield, 75% Light Trans. | 1 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 | 4 |
| 4 | 250200164 | Flat washer M6 | 4 |
| 4 | 250200189 | Rubber Washer M6 | 4 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250000455 | Torx Screw M5 X 25 | 2 |
| 1 | 293830206 | LH Soft Shim Protector | 1 |
| 1 | 293830207 | RH Soft Shim Protector | 1 |
