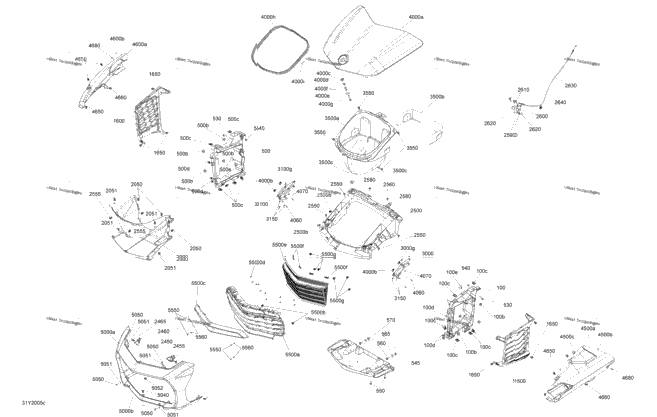

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708200437 | LH Breakaway Lateral Tower Leg Includes 100 TO 100e | 1 |
| 4 | 709000582 | Grommet | 4 |
| 6 | 250100208 | Panel Nut M6 X 1.0 | 6 |
| 3 | 250000958 | Panel Nut M5 X 0.8 | 3 |
| 1 | 414916600 | Black, Nylon Cap | 1 |
| 1 | 708200438 | RH Breakaway Lateral Tower Leg Includes 500 TO 500e | 1 |
| 2 | 207663054 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 708200405 | Front Skid Plate | 1 |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 234082430 | Flat Washer M8 | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 708200860 | LH Side Vent | 1 |
| 1 | 708200859 | RH Side Vent | 1 |
| 6 | 293150230 | Tuflok Plastic Rivet | 6 |
| 1 | 708200362 | Front Air Duct Module | 1 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 708200493 | LH Front Union Link | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 708200494 | RH Front Union Link | 1 |
| 1 | 708200446 | Sub-Frame Type Structure Includes 2500 TO 2500b | 1 |
| 8 | 250000958 | Panel Nut M5 X 0.8 | 8 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 2 | 705000321 | Oval Washer | 2 |
| 1 | 705003911 | Spring | 1 |
| 1 | 705007379 | Latch | 1 |
| 2 | 207663544 | Hex. Flange Screw M6 X 35 | 2 |
| 1 | 517305742 | Hood Cable | 1 |
| 1 | 710002896 | Tie-Rap Clip | 1 |
| 1 | 708200673 | LH Hood Hinge Includes 3000 TO 3000g | 1 |
| 7 | 234051670 | Flat Washer M5 | 7 |
| 1 | 708200674 | RH Hood Hinge Includes 3100 TO 3100g | 1 |
| 6 | 250000715 | Torx Truss Screw M5 X 20 | 6 |
| 1 | 708200403 | Front Storage Bin | 1 |
| 1 | 708200490 | Heat Shield Sheet | 1 |
| 2 | 705006633 | Stopper | 2 |
| 1 | 708200379 | Steel Black Hood Models Steel Black Metallic | 1 |
| 1 | 708200836 | Liquid Titan, Hood Models Liquid Titan | 1 |
| 1 | 708201013 | Magma Red- Hood Models Magma Red | 1 |
| 4 | 250000958 | Panel Nut M5 X 0.8 | 4 |
| 1 | 269501943 | Elastic Nut Housing M8 | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 234082410 | Flat Washer 8 mm | 1 |
| 2 | 232180600 | Hex. Jam Nut M8 | 2 |
| 1 | 705002223 | Lug | 1 |
| 1 | 219704371 | Neoprene Seal 3000 mm Long | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 4 | 250000578 | Torx Truss Screw M5 X 16, T25 | 4 |
| 4 | 234051670 | Flat Washer M5 | 4 |
| 1 | 708200450 | Steel Black, LH Vent Panel Models Steel Black Metallic | 1 |
| 1 | 708201016 | Magma Red, LH Vent Panel Models Magma Red | 1 |
| 1 | 708200841 | Liquid Titan, LH Vent Panel Models Liquid Titan | 1 |
| 1 | 705006634 | Polyurethane Stopper | 1 |
| 1 | 293830143 | Rubber Pad | 1 |
| 1 | 708200451 | Steel Black, RH Vent Panel Models Steel Black Metallic | 1 |
| 1 | 708201017 | Magma Red, RH Vent Panel Models Magma Red | 1 |
| 1 | 708200843 | Liquid Titan, RH Vent Panel Models Liquid Titan | 1 |
| 2 | 250000715 | Torx Truss Screw M5 X 20 | 2 |
| 1 | 708200694 | Steel Metallic Black, Front Fascia Models Steel Black Metallic | 1 |
| 1 | 708201019 | Magma Red, Front Fascia Models Magma Red | 1 |
| 1 | 708200852 | Liquid Titan, Front Fascia Models Liquid Titan | 1 |
| 4 | 250000715 | Torx Truss Screw M5 X 20 | 4 |
| 1 | 708200404 | Front Grille | 1 |
| 2 | 517302785 | Edge Clip | 2 |
| 1 | 708200392 | Bright Chrome, Front Mouth Package CHROME | 1 |
| 1 | 708200534 | Front Mouth Package DARK | 1 |
| 10 | 250000577 | Torx Truss Screw K40 X 12 | 10 |
| 1 | 708200393 | Front Deflector Grille | 1 |
| 4 | 705004838 | Flat Clip | 4 |
| 6 | 517302785 | Edge Clip | 6 |
