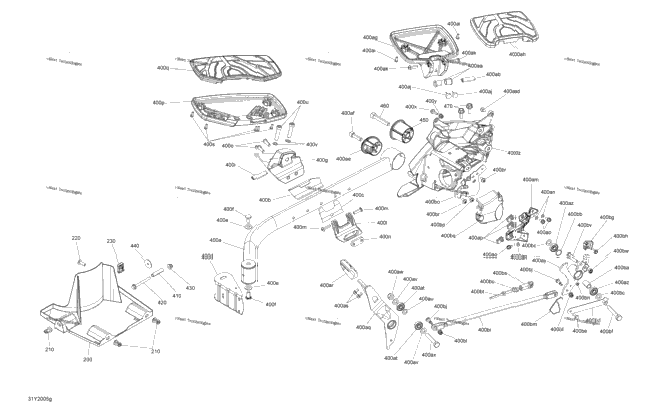

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705007786 | RH Front Skid Plate | 1 |
| 3 | 293150230 | Tuflok Plastic Rivet | 3 |
| 1 | 250000446 | Torx Screw M6 X 20, Scotch Grip | 1 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 1 | 705008954 | Carbon Black, RH Footrest Support | 1 |
| 1 | 705014179 | RH Outer Protective Film | 1 |
| 1 | 705014175 | RH Inner Protective Film | 1 |
| 1 | 705008950 | Tube Support | 1 |
| 2 | 506152582 | Washer | 2 |
| 2 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 | 2 |
| 1 | 705009463 | Carbon Black, RH Slider Outside | 1 |
| 1 | 705013628 | Pivot Pin | 1 |
| 1 | 705013120 | Black, RH Slider Clamp | 1 |
| 2 | 250000830 | Socket Head Screw M8 X 25 | 2 |
| 1 | 705008553 | Back Plate | 1 |
| 1 | 705009455 | RH Foot Board | 1 |
| 1 | 705009230 | RH Pad | 1 |
| 4 | 250000099 | Allen Plastite Screw #12 | 4 |
| 2 | 250000997 | Thin Socket Screw, Scotch Grip, M10 | 2 |
| 2 | 250200105 | Stainless Flat Washer, 10 mm | 2 |
| 1 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 705008277 | Bright Chrome, RH Rear Footrest Support Package CHROME | 1 |
| 1 | 705009402 | Carbon Black, RH Rear Footrest Support Package DARK | 1 |
| 2 | 705008166 | Spacer Bushing | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 705010203 | Pivot Cap | 1 |
| 1 | 244003560 | Socket Head Screw M10 X 35, Scotch Grip | 1 |
| 1 | 705010759 | Carbon Black, RH Foot Board | 1 |
| 1 | 705009234 | Foot Board Pad, Passenger | 1 |
| 2 | 250000099 | Allen Plastite Screw #12 | 2 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 1 | 705008962 | RH Fairing Support | 1 |
| 3 | 234061670 | Black, Flat Washer 6 mm | 3 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 | 3 |
| 3 | 250100198 | Panel Nut M6 X 1.0 | 3 |
| 1 | 705601419 | Brake Pedal | 1 |
| 1 | 705004933 | Rubber Pad | 1 |
| 2 | 210261250 | Hex. Flange Screw M6 X 12 | 2 |
| 2 | 705600458 | Bearing | 2 |
| 1 | 503192496 | Washer | 1 |
| 2 | 503183800 | Washer | 2 |
| 1 | 233601466 | Elastic Locking Nut M10 | 1 |
| 1 | 207006056 | Hex. Cap Screw M10 X 60 | 1 |
| 1 | 705601308 | Master Cylinder Rocker | 1 |
| 1 | 705600541 | Bushing | 1 |
| 1 | 293300191 | O-Ring | 1 |
| 1 | 705601229 | Locking Tab | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 207206534 | Hex. Screw M10 X 65, Scotch Grip | 1 |
| 1 | 705601375 | Brake Master Cylinder Stopper | 1 |
| 1 | 250000725 | Screw M4 X 16 | 1 |
| 1 | 219400628 | Brake Linkage Kit (410.7 mm) | 1 |
| 2 | 250000714 | Flange Screw M6 X 26 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 1 | 705601350 | Quick-Attach Bracket | 1 |
| 1 | 250100178 | Push Nut | 1 |
| 1 | 705601342 | Light Switch Bracket | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 1 | 705601343 | Switch Deflector | 1 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 1 | 705601340 | MASTER CYLINDER TIE-ROD END | 1 |
| 1 | 705600468 | Piston Rod | 1 |
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 1 | 207283544 | Hexagonal Head Cap Screw M8 X 35 | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 705008219 | Spacer | 1 |
| 1 | 250000778 | Hex. Flange Screw M6 X 60 | 1 |
| 1 | 250200029 | Washer M6 | 1 |
| 1 | 705010202 | Pivot Cap | 1 |
| 1 | 205505560 | Socket Head Screw | 1 |
| 2 | 207582054 | Hex Screw Washer Head M8 X 20 | 2 |
