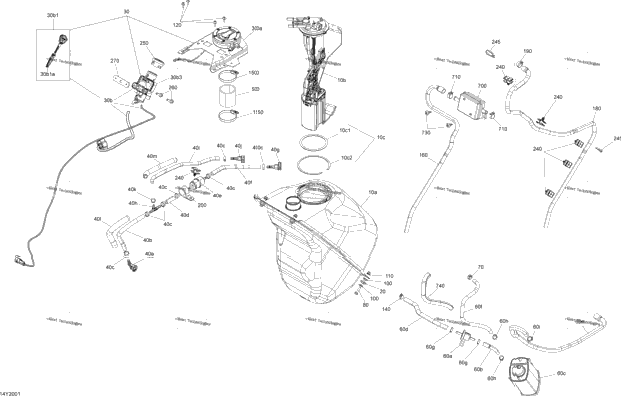

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 219800366 | Fuel Tank | 1 |
| 1 | 709000779 | Fuel Pump Module | 1 |
| 1 | 219800248 | Seal Kit Includes 10c TO 10c2 | 1 |
| XXXX | Not Available As Spare Part - O-ring Not available seperately | ||
| XXXX | Not Available As Spare Part - Circlip Not available seperately | ||
| 4 | 709000582 | Grommet | 4 |
| 1 | 709000818 | Lock Kit P-T_P-LTD | 1 |
| 1 | 709000819 | Lock Kit P-STD_P-S | 1 |
| 1 | 219800405 | Fuel Cap kit with Key Comes with key | 1 |
| 1 | 710005640 | Ignition Switch with Harness Includes 30b TO 30b3 | 1 |
| 1 | 710004408 | Ignition Key Kit Includes 30b TO 30b3 | 1 |
| 1 | 710003597 | Key Sleeve | 1 |
| 1 | 219800373 | DESS Antenna | 1 |
| XXXX | Not Available As Spare Part - Lock Barrel | ||
| 1 | 293710105 | Elbow Fitting 90° | 1 |
| 1 | 709000264 | Fuel Line 7.9 mm, Meter | 1 |
| 7 | 293650125 | Oetiker Clamp Comes with 40e | 7 |
| 1 | 709000265 | Fuel Line 7.9 mm, Meter | 1 |
| 1 | 219800056 | Fuel Filter Ass'y Comes with 2X 40c | 1 |
| 1 | 709000684 | Female Quick Fitting Ass'y | 1 |
| 1 | 513033926 | Y Fitting | 1 |
| 1 | 709001201 | Formed Hose | 1 |
| 1 | 709000686 | Quick Fitting | 1 |
| XXXX | Not Available As Spare Part - Non Applicable | ||
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 275500924 | Fuel Hose | 1 |
| 1 | 709000443 | Bleed Valve | 1 |
| 1 | 709000566 | Formed Hose | 1 |
| 1 | 709000090 | Vapor Canister | 1 |
| 1 | 219704441 | Hose 3000MM Long | 1 |
| 1 | 709000567 | Formed Hose | 1 |
| 1 | 219704442 | Was 709000667 Hose | 1 |
| 2 | 293650047 | Crimp Clamp, 15.3-706R | 2 |
| 2 | 293650025 | Oetiker Gear Clamp | 2 |
| 1 | 293650140 | Oetiker Clamp | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 8 | 709000716 | Bushing | 8 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 250000534 | Tork Screw M6 X 16 | 4 |
| 1 | 513033029 | Universal Spring Clamp | 1 |
| 2 | 293650081 | Norma Clamp | 2 |
| 1 | 709000570 | Formed Hose | 1 |
| 1 | 709000813 | Formed Hose | 1 |
| 1 | 293650011 | Oetiker Clamp | 1 |
| 1 | 513033047 | Open Clamp | 1 |
| 6 | 709000571 | Hose Support | 6 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 710004182 | Ignition Switch Cap | 1 |
| 2 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 1 | 710001365 | Switch Support | 1 |
| 1 | 709000524 | Air Filter | 1 |
| 2 | 513033865 | Spring Clamp | 2 |
| 2 | 414745900 | Tuflock Phillips Plastic Screw | 2 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
