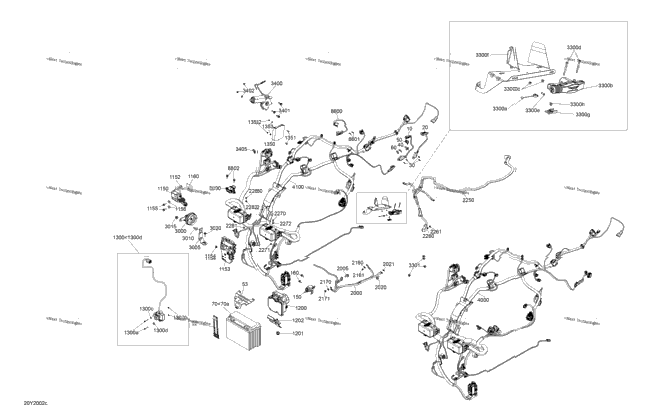

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710003412 | Brake Light Switch Ass'y | 1 |
| 1 | 710001379 | Brake Pressure Switch Ass'y | 1 |
| 4 | 293150150 | Pop Rivet | 4 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 710002899 | Clip Tie-Rap | 1 |
| 1 | 520000528 | Latch | 1 |
| 1 | 710002893 | Battery Holder | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 410922962 | Battery YUASA YTX24-HL Includes 70 to<BR/> 70a | 1 |
| 1 | 295500849 | Battery Fastener Kit Not Shown | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 210261250 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 710004916 | Dess Module | 1 |
| 1 | 710004308 | Wire Support | 1 |
| 1 | 210261050 | Hex. Forming Screw M6 X 10 | 1 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 293830091 | Rubber Bumper | 1 |
| 1 | 219800488 | VCM Module Assembly Includes 1200<BR/> to 1201 | 1 |
| 1 | 710003279 | Shock Damper | 1 |
| 1 | 710003996 | VCM Harness Protector | 1 |
| 1 | 710006467 | CCK Module Ass'y Model<BR/> Australia, Includes 1300 to 1300d | 1 |
| 2 | 250000955 | Hex. Screw Forming M4 X 30 Model<BR/> Australia | 2 |
| 2 | 211100002 | Push Nut Model<BR/> Australia | 2 |
| 1 | 213200016 | Flat Washer, Emhart Model<BR/> Australia | 1 |
| 1 | 234052400 | Flat Washer 5 mm, Stainless Model<BR/> Australia | 1 |
| 1 | 710005887 | PBM Module Ass'y Includes 1350<BR/> to 1355 | 1 |
| 2 | 250000750 | Torx Screw M4 X 16 | 2 |
| 2 | 232541484 | Elastic Stop Nut M4 | 2 |
| 2 | 234041480 | Flat Washer 4 mm | 2 |
| 1 | 710006399 | Starter Cable Ass'y | 1 |
| 1 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 1 |
| 1 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 1 |
| 1 | 234481608 | Serrated Lock Washer 8 mm | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 1 | 710005026 | Pos Cable | 1 |
| 1 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 1 |
| 1 | 710004940 | Horn | 1 |
| 1 | 710005769 | Horn Support | 1 |
| 1 | 250000874 | Torx Truss M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 710002889 | Reverse Cable | 1 |
| 1 | 710011269 | Actuator | 1 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 2 | 205444056 | Socket Head Screw M4 X 40 | 2 |
| 1 | 390403000 | Pop Rivet 5/32 | 1 |
| 1 | 710005642 | Reverse Actuator Support | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 | 3 |
| 710002756 | Control Gear Motor | ||
| 3 | 207662054 | Hex. Flange Screw M6 X 20 | 3 |
| 3 | 232561434 | Elastic Stop Nut M6 | 3 |
| 1 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership | 1 |
| 1 | 710005447 | Main Harness Models SE6<BR/> Except China | 1 |
| 1 | 710007105 | WIRING HARNESS_CHASSIS Models China | 1 |
| 1 | 710005448 | Main Harness Models SM6 | 1 |
| 2 | 293150150 | Pop Rivet | 2 |
| 1 | 710005658 | Yaw Rate Sensor | 1 |
| 2 | 210261650 | Hex. Flange Screw M6 X 16 | 2 |
